NSN 6680-00-531-2541 B4904, 786124REVAPC25, 7861-24REVAPC25
Product Details | LIQUID SIGHT INDICATOR
6680-00-531-2541 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: B4904, 786124REVAPC25, 7861-24REVAPC25, 786303REVAPC40, 7863-03REVAPC40, 366121REVAPC25, 3661-21REVAPC25, 366127REVAPC25, 3661-27REVAPC25, 376120REVAPC25, 3761-20REVAPC25, 426117REVAPC25, 4261-17REVAPC25, 426120REVAPC25, 4261-20REVAPC25, 426321REVAPC23, 4263-21REVAPC23, 57126011302083REVAPC25, 571-2601-1302083REVAPC25, 57126011302157REVAPC25, 571-2601-1302157REVAPC25, 57526011443725REVAPC25, 575-2601-1443725REVAPC25, 57626011505312REVAPC25, 576-2601-1505312REVAPC25, 57626011505315REVAPC25, 576-2601-1505315REVAPC25, 57665051405403REVAPC23, 576-6505-1405403REVAPC23, 57826011572945REVAPC25, 578-2601-1572945REVAPC25, 57865051573035REVAPC40, 578-6505-1573035REVAPC40, 6680-00-531-2541, 00-531-2541, 6680005312541, 005312541
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-531-2541 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-531-2541
Demand History | NSN 6680-00-531-2541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-531-2541 | 2011-01-27 | 4 | US |
Cross Reference | NSN 6680-00-531-2541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3661-21REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 3661-27REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 3761-20REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 4261-17REVAPC25 | 89103 | PEARL HARBOR NAVAL SHIPYARD AND INTERMEDIATE MAINTENANCE FACILITY |
| 4261-17REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 4261-20REVAPC25 | 89103 | PEARL HARBOR NAVAL SHIPYARD AND INTERMEDIATE MAINTENANCE FACILITY |
| 4261-20REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 4263-21REVAPC23 | 89103 | PEARL HARBOR NAVAL SHIPYARD AND INTERMEDIATE MAINTENANCE FACILITY |
| 4263-21REVAPC23 | 96169 | ELECTRIC BOAT CORPORATION |
| 571-2601-1302083REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 571-2601-1302157REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 575-2601-1443725REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 576-2601-1505312REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 576-2601-1505315REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 576-6505-1405403REVAPC23 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 578-2601-1572945REVAPC25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 578-6505-1573035REVAPC40 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 7861-24REVAPC25 | 96169 | ELECTRIC BOAT CORPORATION |
| 7863-03REVAPC40 | 96169 | ELECTRIC BOAT CORPORATION |
| B4904 | 70925 | BIJUR LUBRICATING CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-531-2541
Technical Data | NSN 6680-00-531-2541
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | CHROMIUM |

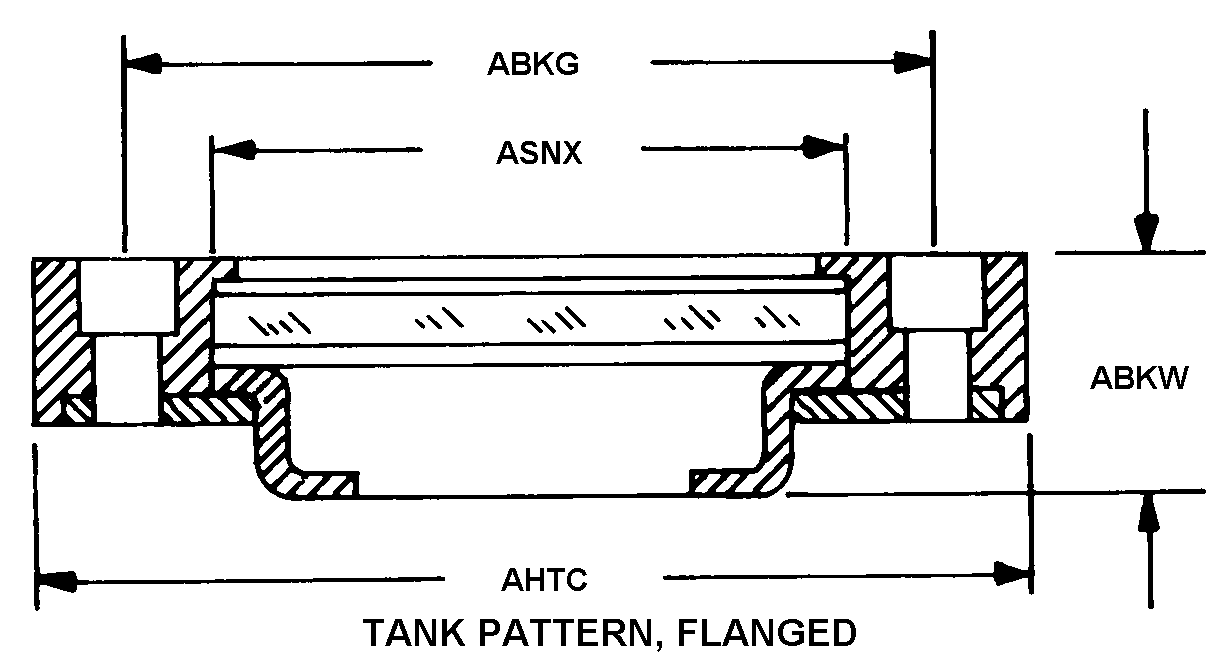

| STYLE DESIGNATOR | D6 TANK PATTERN, FLANGED |
| OVERALL HEIGHT | 0.344 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | ANY ACCEPTABLE |
| FLANGE OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| SIGHT DIAMETER | 1.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | ANY ACCEPTABLE SINGLE END |
| BOLT HOLE DIAMETER | ANY ACCEPTABLE SINGLE END |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | FLANGED, PLAIN SINGLE END |
| FEATURES PROVIDED | REFLECTOR |
| SPECIAL FEATURES | PLASTIC SIGHT WINDOW |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | POSEIDON |
Restrictions/Controls & Freight Information | NSN 6680-00-531-2541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-531-2541
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
