NSN 6680-00-727-4140 MODEL 100 7-1006-115DC, MODEL10071006115DC, CE600AS6018
Product Details | ELECTRICAL COUNTER
6680-00-727-4140 An instrument which is actuated by electrical pulses and designed to register and total numerically in units proportional to its applied pulses. See also COUNTER, RECIPROCATING and COUNTER, ROTATING.
Part Alternates: MODEL 100 7-1006-115DC, MODEL10071006115DC, CE600AS6018, 71006, 7-1006, 71006115DC, 7-1006-115DC, 6680-00-727-4140, 00-727-4140, 6680007274140, 007274140
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1961 | 00-727-4140 | 16412 ( COUNTER, ELECTRICAL ) |
Drawings & Photos | NSN 6680-00-727-4140
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-727-4140
Related Products | NSN 6680-00-727-4140
Technical Data | NSN 6680-00-727-4140
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B4 ELECTRICAL CASED |
| OVERALL LENGTH | 3.890 INCHES MINIMUM AND 3.950 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.500 INCHES MINIMUM AND 2.525 INCHES MAXIMUM |
| OVERALL WIDTH | 1.730 INCHES MINIMUM AND 1.740 INCHES MAXIMUM |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 6 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 00000 MINIMUM AND 99999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 DC |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| MAXIMUM COUNT RATE | 1000.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL REAR SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 UNTHREADED HOLE |

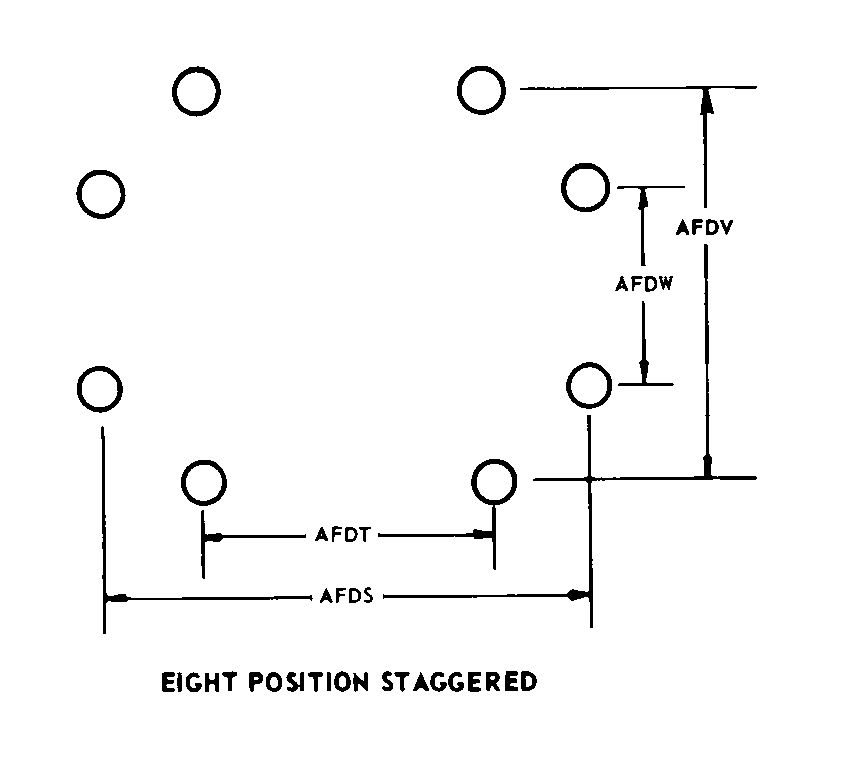

| MOUNTING ARRANGEMENT STYLE | A11 EIGHT POSITION STAGGERED |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.307 INCHES MINIMUM AND 3.317 INCHES MAXIMUM |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.225 INCHES MINIMUM AND 3.235 INCHES MAXIMUM |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.350 INCHES MINIMUM AND 3.360 INCHES MAXIMUM |
| SHORTEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| MANUFACTURERS CODE | 28292 |
| DESIGN CONTROL REFERENCE | MODEL 100 7-1006-115DC |
Restrictions/Controls & Freight Information | NSN 6680-00-727-4140
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
