NSN 6680-00-756-1653 00-756-1653, 007561653
Product Details | MEDICAL GAS ADMINISTRATION APPA PRESSURE REGULATOR
6680-00-756-1653 A precision device designed to accept compressed medical gas from a cylinder and to deliver it to the administration apparatus at a safe pressure which is automatically maintained. It is usually furnished with a gage to indicate pressure in the cylinder and it may have a flowmeter to measure the volume of gas delivered.
Part Alternates: 6680-00-756-1653, 00-756-1653, 6680007561653, 007561653
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-756-1653 | 19229 ( REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS ) |
Drawings & Photos | NSN 6680-00-756-1653
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-756-1653
Related Products | NSN 6680-00-756-1653
Technical Data | NSN 6680-00-756-1653
| Characteristic | Specifications |
|---|---|
| SPECIFIC GAS FOR WHICH DESIGNED | HELIUM-OXYGEN MIXTURE |
| STAGE TYPE | DOUBLE |
| BODY MATERIAL | BRASS |
| REGULATION TYPE | 1ST STAGE AUTOMATIC, 2ND STAGE MANUAL |
| CYLINDER PRESSURE GAGE | INCLUDED |
| CYLINDER PRESSURE GAGE RANGE | 0.0 TO 300.0 POUNDS PER SQUARE INCH |

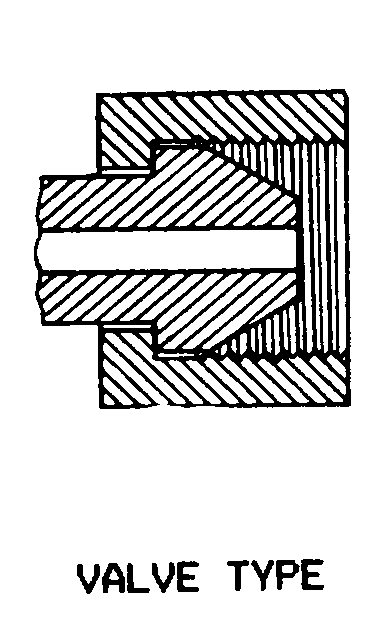

| INLET CONNECTION END STYLE | 5 VALVE TYPE |
| INLET CONNECTION NOMINAL PIPE SIZE | 0.903 INCHES |
| INLET ADAPTER | INCLUDED |
| ADAPTER INLET CONNECTION END STYLE | 5 VALVE TYPE |
| ADAPTER INLET CONNECTION NOMINAL PIPE SIZE | 0.903 INCHES |

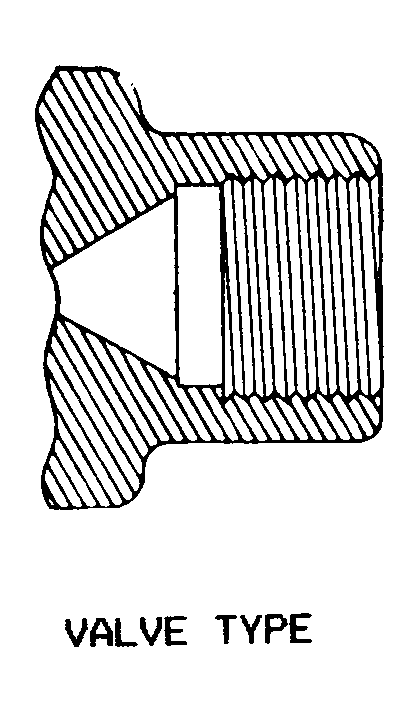

| OUTLET CONNECTION END STYLE | 12 VALVE TYPE |
| OUTLET CONNECTION NOMINAL PIPE SIZE | 0.250 INCHES |
| AUTOMATIC RELIEF VALVE | INCLUDED |
| FLOWMETER | INCLUDED |
| III UNIT OF ISSUE WEIGHT | 6.33 POUNDS |
| III UNIT OF ISSUE CUBE | 0.367 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | REGULATOR PRESSURE MEDICAL GAS ADMINISTRATION APPARATUS |
Restrictions/Controls & Freight Information | NSN 6680-00-756-1653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-756-1653
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
