NSN 6680-00-791-1050 21459, 2-1459, 214591
Product Details | LIQUID SIGHT INDICATOR
6680-00-791-1050 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: 21459, 2-1459, 214591, 2-1459-1, 80770010016, 80770-0100-16, 6680-00-791-1050, 00-791-1050, 6680007911050, 007911050
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-791-1050 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-791-1050
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-791-1050
Technical Data | NSN 6680-00-791-1050
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |

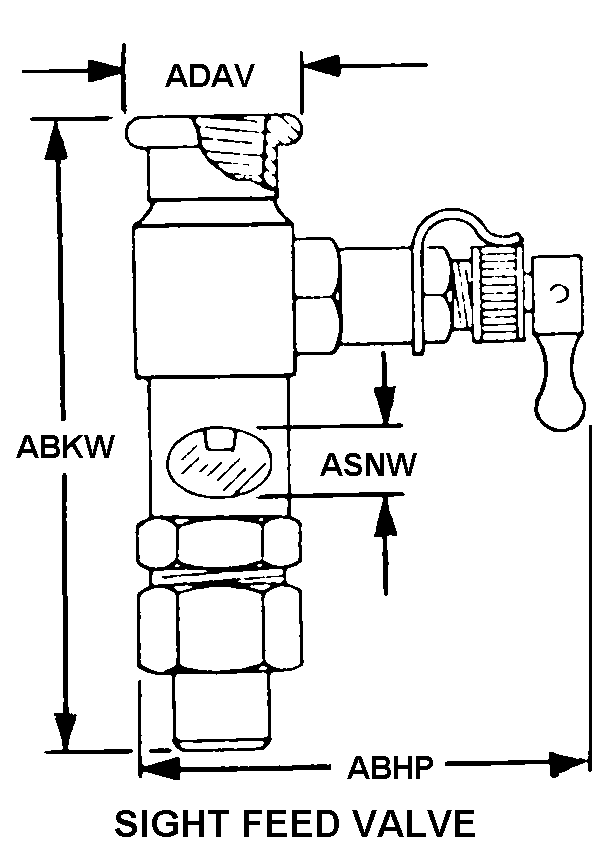

| STYLE DESIGNATOR | D21 SIGHT FEED VALVE |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 7.750 INCHES NOMINAL |
| SIGHT HEIGHT | 3.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | THREADED INTERNAL, FLARE BOTH ENDS |
| SEAT ANGLE IN DEG | ANY ACCEPTABLE SINGLE END |
| FEATURES PROVIDED | AUTOMATIC SHUTOFF |
| SPECIAL FEATURES | RIGHT HAND DISCHARGE |
Restrictions/Controls & Freight Information | NSN 6680-00-791-1050
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
