NSN 6680-01-018-1186 682901, 68290-1, 01-018-1186
Product Details | ELECTRICAL TACHOMETER INDICATOR
6680-01-018-1186 An instrument which displays, in units of revolutions per minute, the transmitted rotational speed of a shaft for a specified elapsed time.2036320000066200018Engine Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 682901, 68290-1, 6680-01-018-1186, 01-018-1186, 6680010181186, 010181186
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 20 MAR 1976 | 01-018-1186 | 08260 ( INDICATOR, ELECTRICAL TACHOMETER ) |

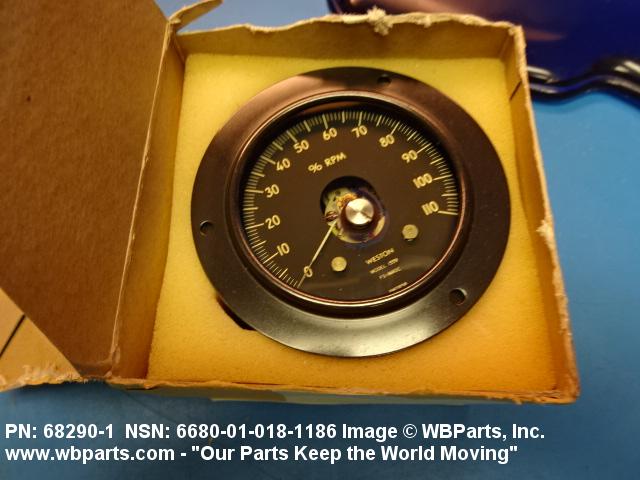

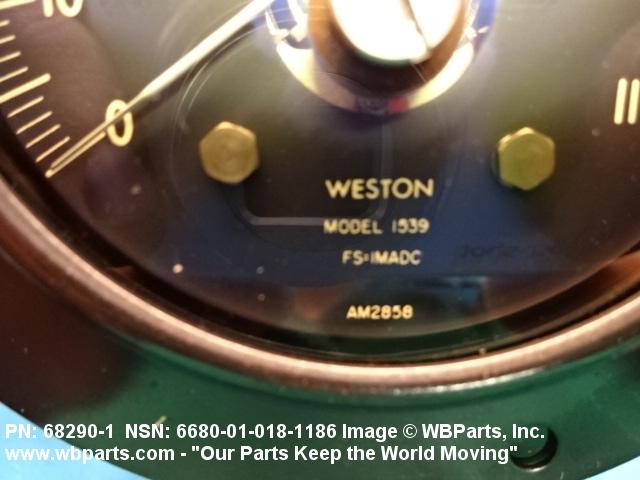

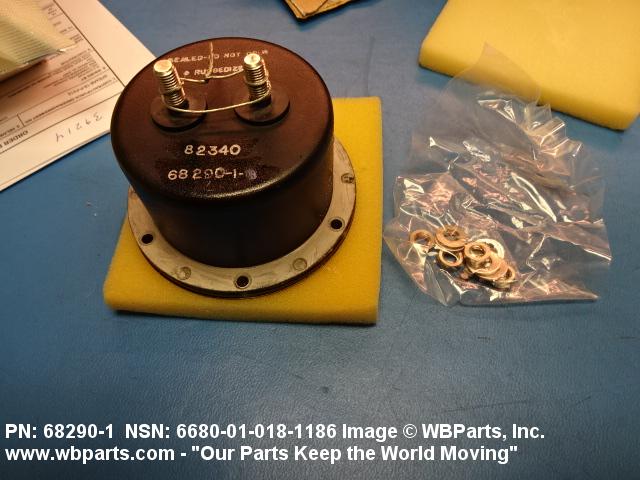

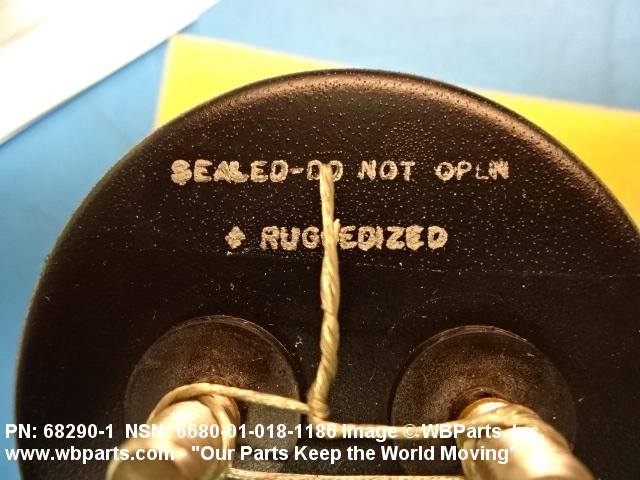

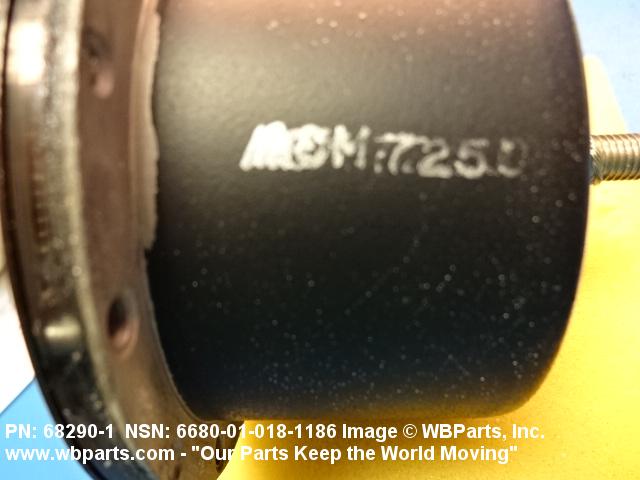

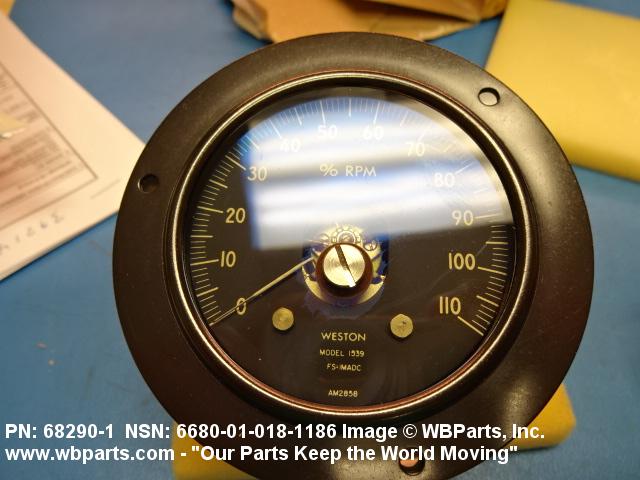

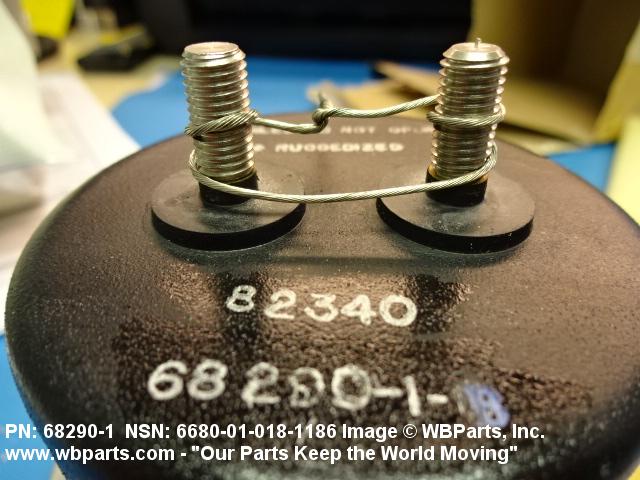

Drawings & Photos | NSN 6680-01-018-1186
Demand History | NSN 6680-01-018-1186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-01-018-1186 | 2018-04-116 | 1 | United States |
| 6680-01-018-1186 | 2018-02-54 | 4 | DIBBS |
| 6680-01-018-1186 | 2018-02-54 | 1 | DIBBS |
| 6680-01-018-1186 | 2018-02-44 | 1 | DIBBS |
| 6680-01-018-1186 | 2018-02-42 | 4 | DIBBS |
| 6680-01-018-1186 | 2013-03-78 | 10 | DIBBS |
Cross Reference | NSN 6680-01-018-1186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68290-1 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-018-1186
Technical Data | NSN 6680-01-018-1186
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 2 |
| POINTER TYPE | CLOCK-HAND SINGLE POINTER |
| COLOR | WHITE POINTER OVERALL WHITE MARKER OVERALL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 PANEL |
| MOUNTING STUD DIAMETER | 0.150 INCHES NOMINAL |
| DEPTH | 2.040 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | TEST SET,EDOCORPORATION,TYPE AN/ALM-158 |
| MANUFACTURERS CODE | 82340 |
| DESIGN CONTROL REFERENCE | 68290-1 |
Restrictions/Controls & Freight Information | NSN 6680-01-018-1186
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177220 | SPEED INDICATORS/HEADS/ODOMETERS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-018-1186
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
