NSN 6680-01-075-7676 119B847H01, 01-075-7676, 010757676
Product Details | LIQUID SIGHT INDICATOR
6680-01-075-7676 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: 119B847H01, 6680-01-075-7676, 01-075-7676, 6680010757676, 010757676
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 26 APR 1979 | 01-075-7676 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-01-075-7676
Cross Reference | NSN 6680-01-075-7676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119B847H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-075-7676
Technical Data | NSN 6680-01-075-7676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |

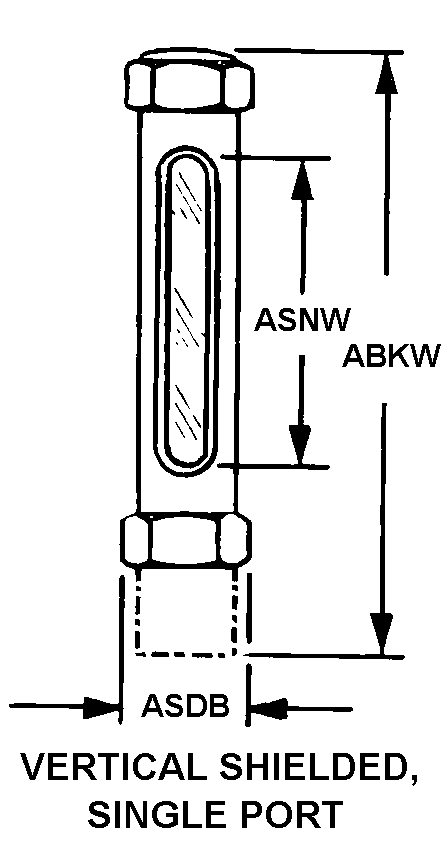

| STYLE DESIGNATOR | D16 VERTICAL SHIELDED, SINGLE PORT |
| OVERALL HEIGHT | 7.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SIGHT HEIGHT | 4.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UN BOTH ENDS |
| NOMINAL THREAD SIZE | 0.625 INCHES BOTH ENDS |
| THREAD QUANTITY PER INCH | 20 BOTH ENDS |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 119B847H01 |
Restrictions/Controls & Freight Information | NSN 6680-01-075-7676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
