NSN 6680-01-436-8983 AM11SS4, AM1-1SS4, 01-436-8983
Product Details | LIQUID SIGHT INDICATOR
6680-01-436-8983 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: AM11SS4, AM1-1SS4, 6680-01-436-8983, 01-436-8983, 6680014368983, 014368983
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 SEP 1996 | 01-436-8983 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-01-436-8983
Cross Reference | NSN 6680-01-436-8983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AM1-1SS4 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-436-8983
Technical Data | NSN 6680-01-436-8983
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

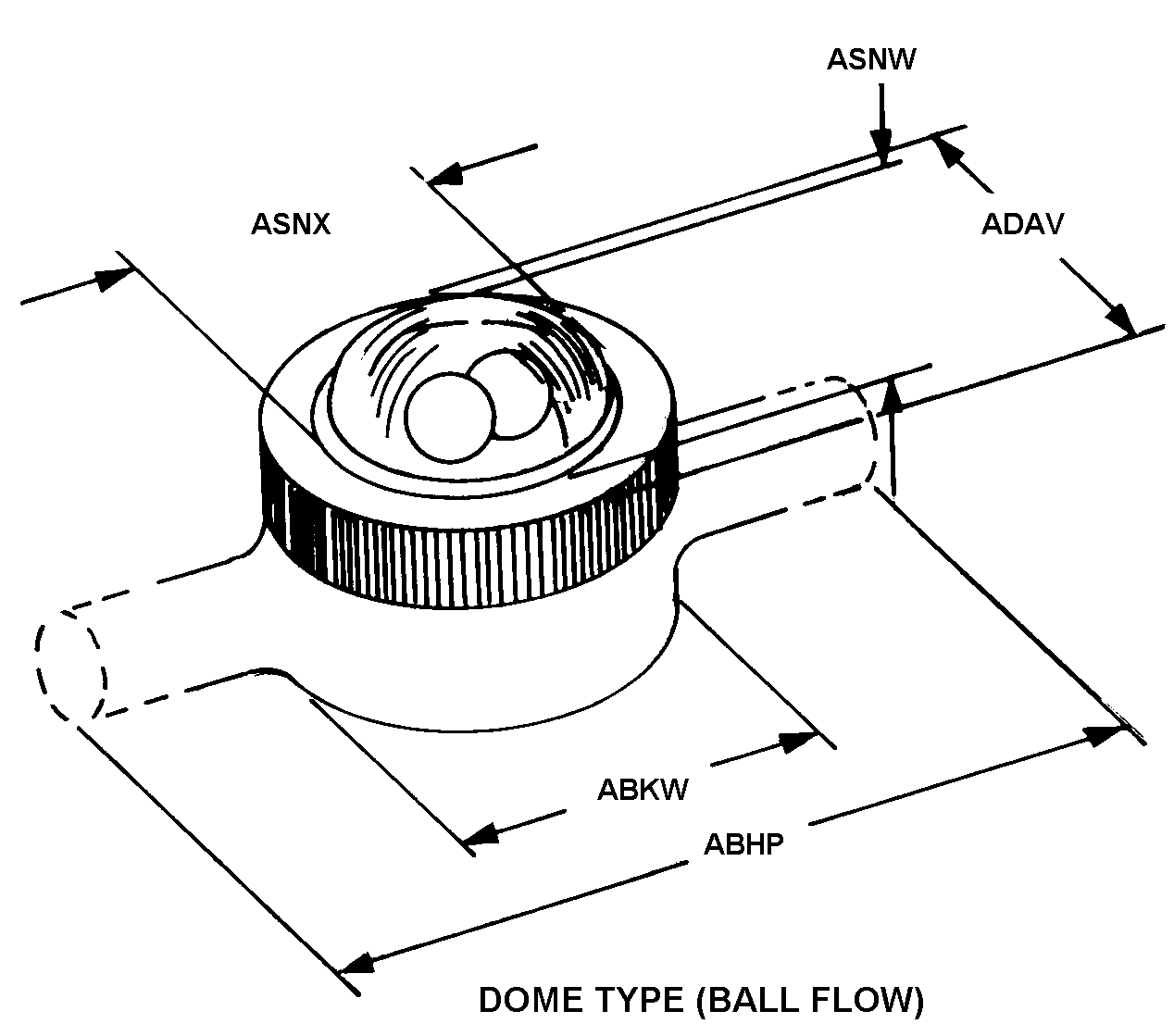

| STYLE DESIGNATOR | D33 DOME TYPE |
| OVERALL LENGTH | 2.626 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT, FLUOROCARBON |
| DATA FURNISHING METHOD | CLEAR WINDOW AND COLOR CHANGE |
| MAXIMUM WORKING PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | CONNECTOR FEMALE 0.500 ODF; WIDE ANGLE VIEW |
Restrictions/Controls & Freight Information | NSN 6680-01-436-8983
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
