NSN 6685-00-255-9981 GGT315, GG-T-315, 8371
Product Details | SELF-INDICATING THERMOMETER
6685-00-255-9981 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.20365150057Medical and Surgical Instruments, Equipment, and Supplies66600040Meteorological Instruments and Apparatus66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: GGT315, GG-T-315, 8371, 5921, 6685-00-255-9981, 00-255-9981, 6685002559981, 002559981
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-255-9981 | 42787 ( THERMOMETER, SELF-INDICATING ) |
Drawings & Photos | NSN 6685-00-255-9981
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-255-9981
Technical Data | NSN 6685-00-255-9981
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | METAL |
| SCALE MEASUREMENT RANGE | 200.000 TO 600.000 DEG FAHRENHEIT |
| MATERIAL | STEEL METER CASE |

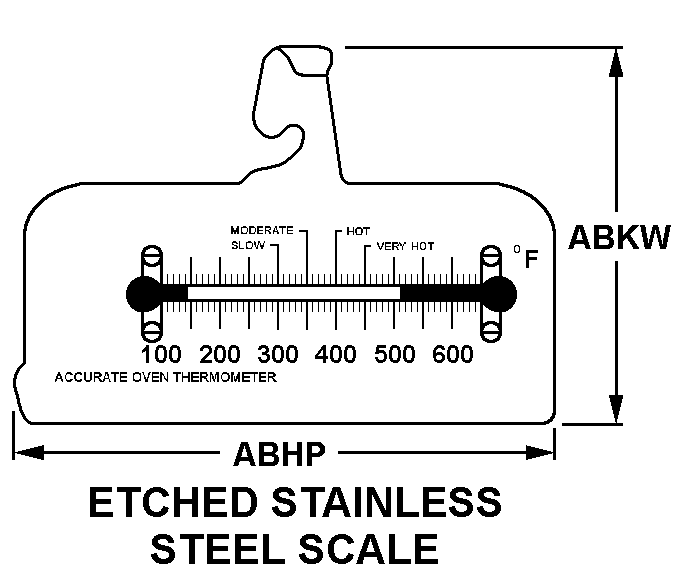

| STYLE DESIGNATOR | A24 ETCHED STAINLESS STEEL SCALE |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| OVERALL LENGTH | 4.875 INCHES NOMINAL |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| SECURING DEVICE TYPE | CLIP |
| NONDEFINITIVE SPEC/STD DATA | 6 CLASS |
| III SCALE SMALLEST INCREMENT | 10.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GG-T-315 |
Restrictions/Controls & Freight Information | NSN 6685-00-255-9981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | V | Miscellaneous hazardous materials, UN class 9 (no label) |
Management | NSN 6685-00-255-9981
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
