NSN 6685-00-350-7661 K3020NN, 19526-204-1, 57DFFM
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-350-7661 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: K3020NN, 19526-204-1, 57DFFM, 6685-00-350-7661, 00-350-7661, 6685003507661, 195262041, 003507661
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 27 MAR 1970 | 00-350-7661 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

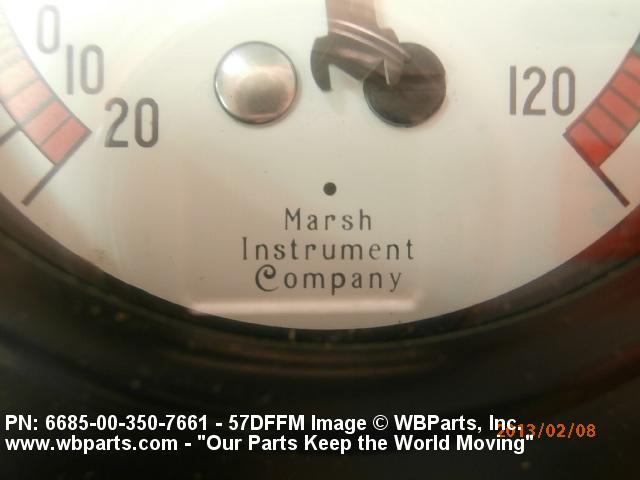

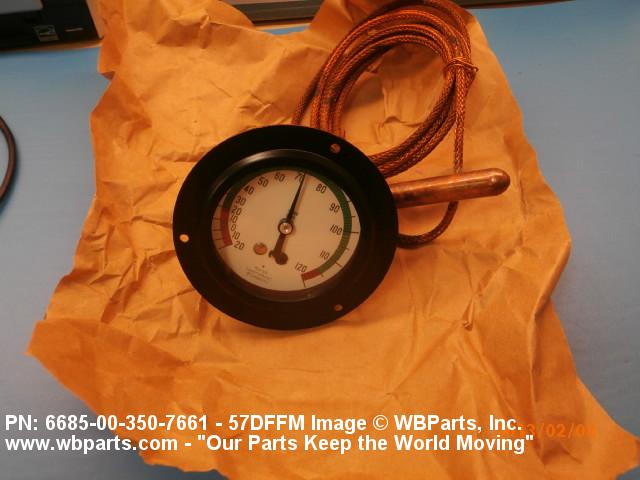

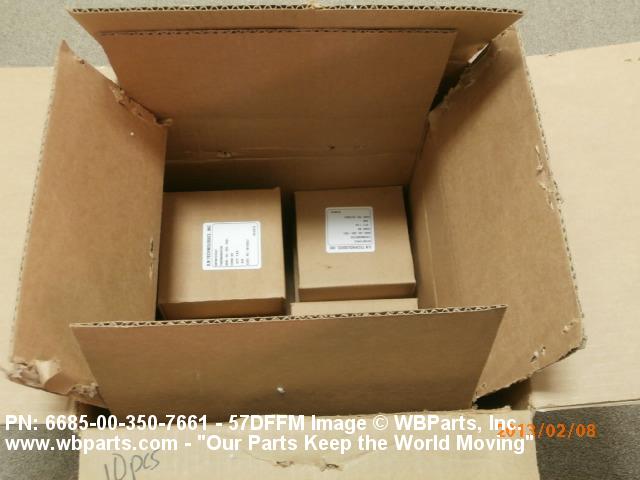

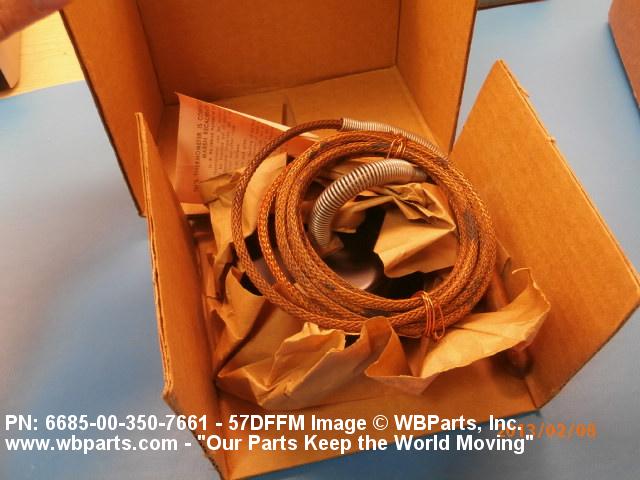

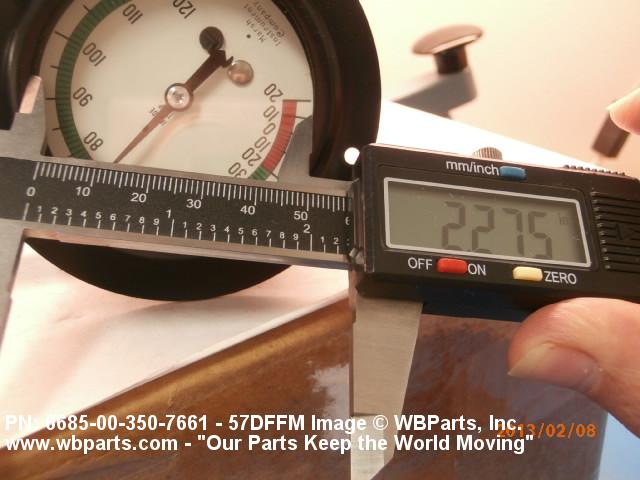

Drawings & Photos | NSN 6685-00-350-7661
Demand History | NSN 6685-00-350-7661
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-350-7661 | 2017-10-289 | 2 | DIBBS |
| 6685-00-350-7661 | 2017-02-46 | 1 | us |
| 6685-00-350-7661 | 2012-11-311 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-350-7661
Technical Data | NSN 6685-00-350-7661
| Characteristic | Specifications |
|---|---|

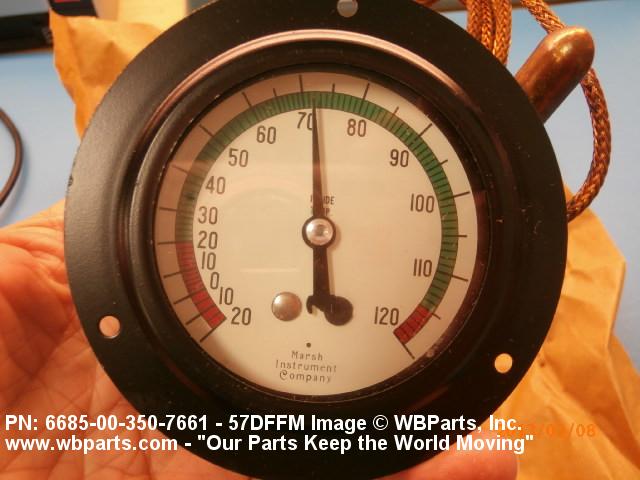

| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | -20.000 TO 120.000 DEG FAHRENHEIT |
| MATERIAL | COPPER ALLOY BULB |
| STYLE DESIGNATOR | D3 BULB W/O SOCKET |
| BULB TIP LENGTH | 2.812 INCHES NOMINAL |

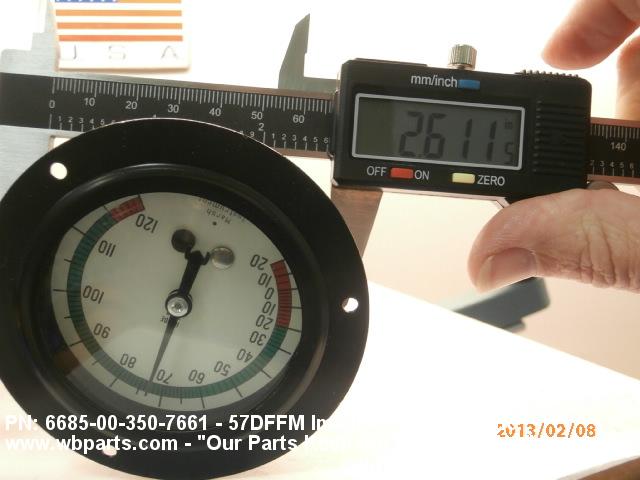

| CASE DIAMETER | 2.481 INCHES NOMINAL |
| DIAL DIAMETER | 2.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | K7 PLAIN BULB W/BENDABLE EXTENSION |
| ACTIVE PORTION LENGTH | 2.812 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.380 INCHES NOMINAL |
| BULB OVERALL LENGTH | ANY ACCEPTABLE |
| EXTENSION NECK LENGTH | ANY ACCEPTABLE |
| BULB CONNECTION TYPE | UNION |

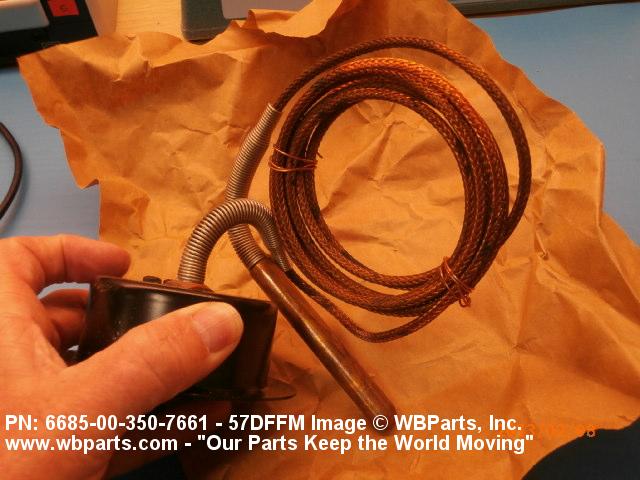

| FLEXIBLE TUBE LENGTH | 72.000 INCHES NOMINAL |
| ACTUATING MEDIUM | VAPOR TENSION |

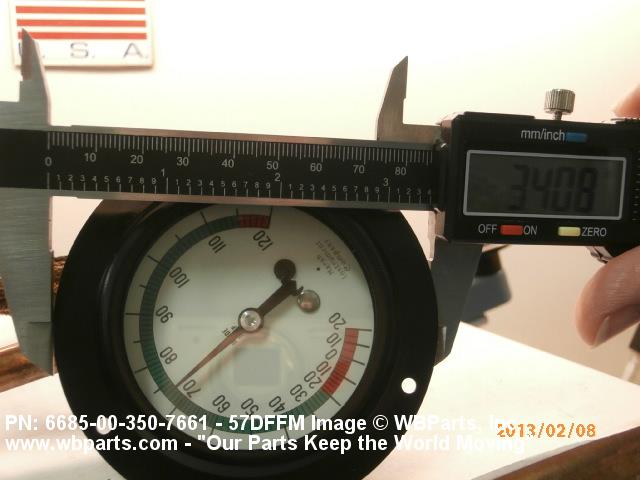

| MOUNTING BOLT CIRCLE DIAMETER | 3.125 INCHES NOMINAL |
| CASE TYPE | DUSTPROOF |
Restrictions/Controls & Freight Information | NSN 6685-00-350-7661
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
