Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-403-8254 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: G1110C, 102001, 17861, 6685-00-403-8254, 00-403-8254, 6685004038254, 004038254
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 JUL 1969 | 00-403-8254 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

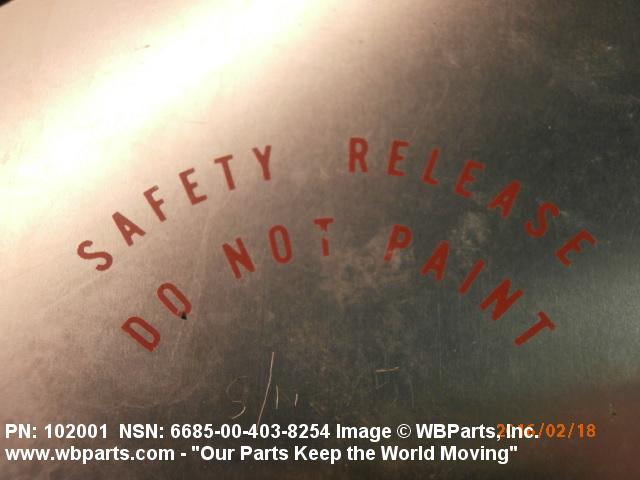

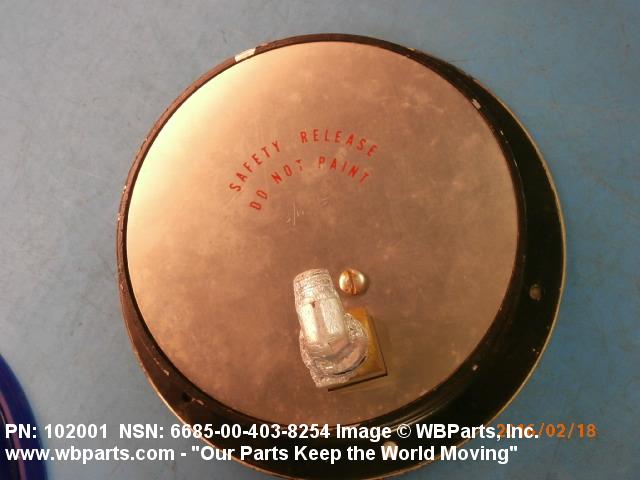

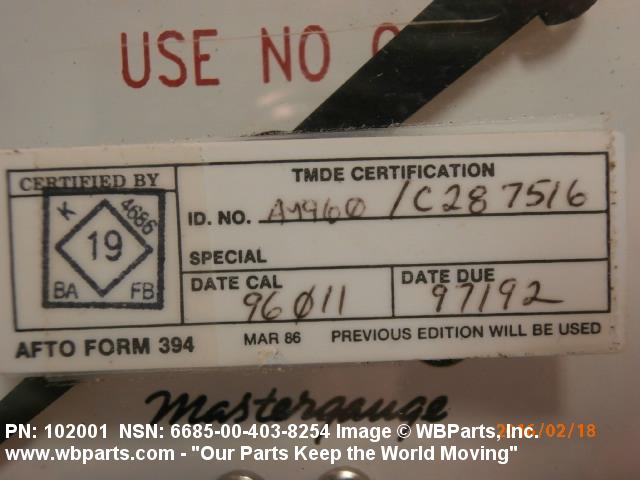

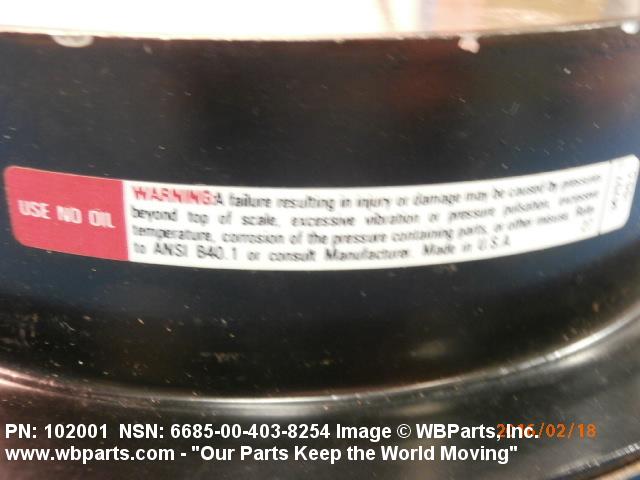

Drawings & Photos | NSN 6685-00-403-8254
Demand History | NSN 6685-00-403-8254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 102001 | 2023-06-01 | 7 | DIBBS |
| 102001 | 2021-03-16 | 355 | Saudi Arabia |
| 102001 | 2021-02-09 | 1 | United States |
| 102001 | 2020-11-23 | 2 | AE |
| 102001 | 2020-01-16 | 2 | Croatia |
| 6685-00-403-8254 | 2019-12-16 | 30 | US |
| 102001 | 2019-07-29 | 1 | CL |
| 6685-00-403-8254 | 2019-05-15 | 30 | US |
| 102001 | 2018-11-21 | 1 | United States |
| 6685-00-403-8254 | 2018-08-23 | 15 | DIBBS |
| 6685-00-403-8254 | 2018-02-23 | 1 | UK |
| 102001 | 2017-08-31 | 5 | PK |
| 6685-00-403-8254 | 2017-06-13 | 4 | UK |
| 6685-00-403-8254 | 2016-05-10 | 1 | United States |
| 6685-00-403-8254 | 2016-02-10 | 1 | us |
| 6685-00-403-8254 | 2016-02-10 | 1 | us |
| 6685-00-403-8254 | 2016-02-10 | 1 | us |
| 6685-00-403-8254 | 2015-07-07 | 1 | United States |
| 6685-00-403-8254 | 2014-11-16 | 16 | DIBBS |
| 102001 | 2014-01-29 | 3 | United States |
| 102001 | 2012-04-04 | 2 | United States |
| 102001 | 2011-11-07 | 1 | BR |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6685-00-403-8254
Related Products | NSN 6685-00-403-8254
6685-00-403-9489, 6685-00-404-0018, 6685-00-404-0575, 6685-00-404-1285, 6685-00-404-1494
Technical Data | NSN 6685-00-403-8254
| Characteristic | Specifications |
|---|---|

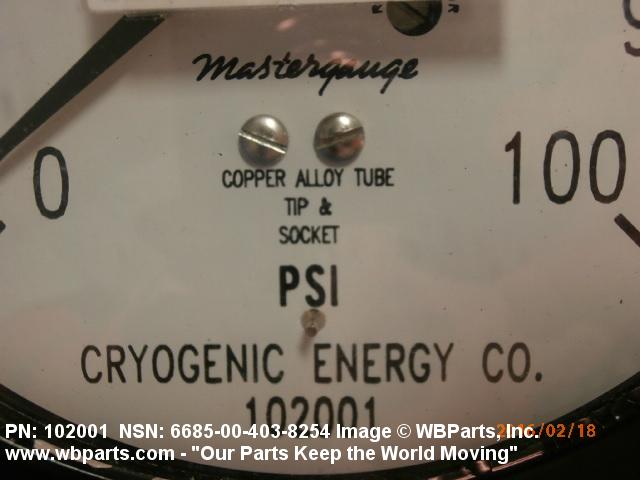

| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BRONZE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 100.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 1 PCT ACCURACY RATING ENTIRE RANGE |
| GRADUATION UNIT | 10.000 POUNDS |
| SCALE SMALLEST INCREMENT | 1.000 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 6 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | IRON, CAST |
| CASE SURFACE TREATMENT | PAINT, BLACK |

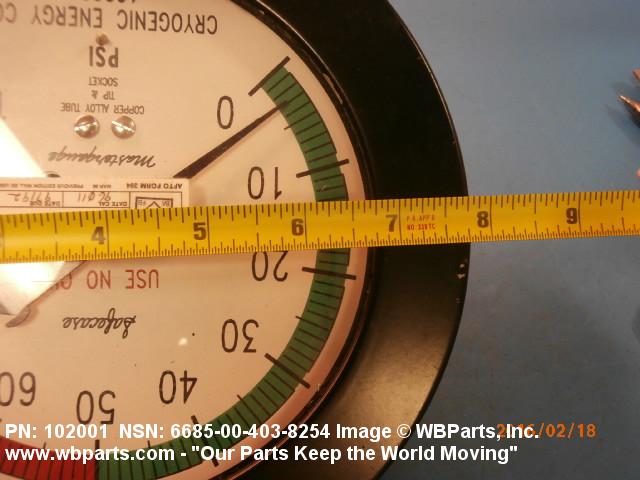

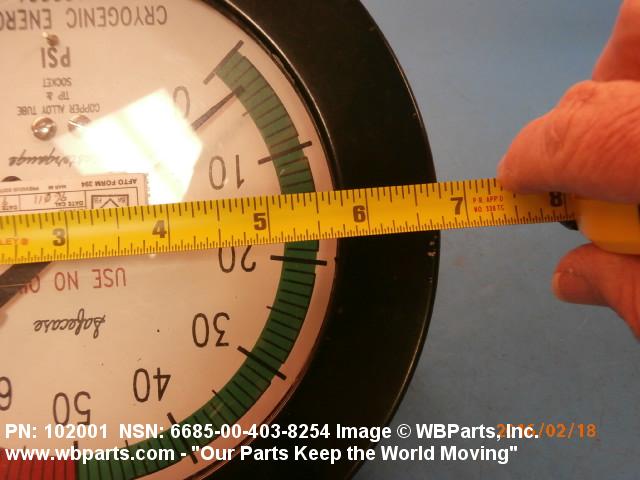

| OVERALL DIAMETER | 7.625 INCHES NOMINAL |
| OVERALL DEPTH | 2.063 INCHES NOMINAL |
| BEZEL TYPE | SNAP-ON |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT, BLACK |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BOTTOM |
| CONNECTION SIZE | 1/4 IN. NPT |
| MOUNTING METHOD | SURFACE WALL |
| BOLT CIRCLE DIAMETER | 7.000 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |

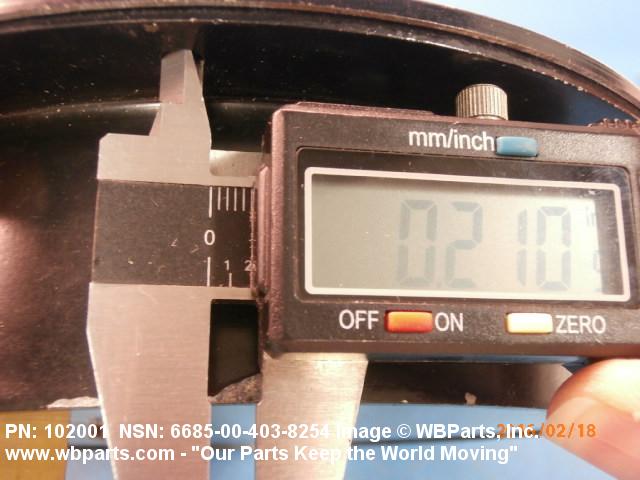

| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |

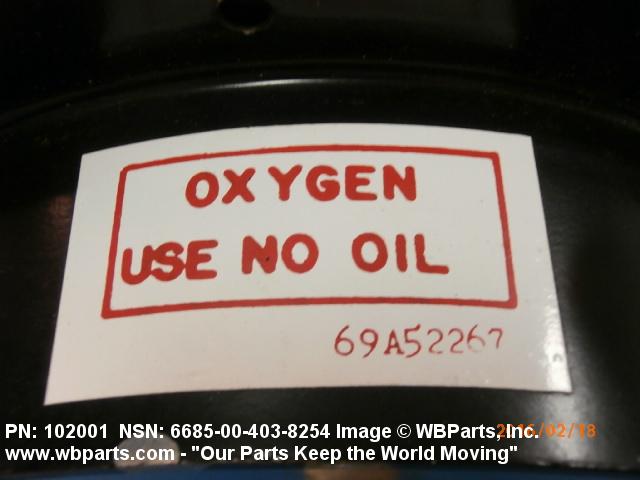

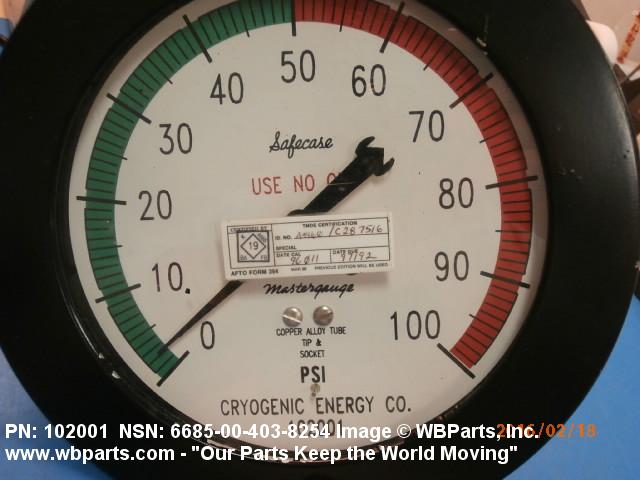

| SPECIAL FEATURES | BEZEL RING RIM PAINTED GREEN FROM 0 TO 50 PSI AND RED FROM 50 TO 100 PSI; LOX CLEAN FOR LIQUID OXYGEN SERVICE |
Restrictions/Controls & Freight Information | NSN 6685-00-403-8254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
