NSN 6685-00-413-4534 SE243REFLWBX, SE2-4-3REFLWBX, ST4NNR2WRONAG
Product Details | DIAL INDICATING COMPOUND PRESSURE-VACUUM GAGE
6685-00-413-4534 An instrument designed to measure and indicate pressure and vacuum, on one dial having a divided scale, a single indicating pointer which rotates either clockwise or counterclockwise according to whether pressure is applied or withdrawn.
Part Alternates: SE243REFLWBX, SE2-4-3REFLWBX, ST4NNR2WRONAG, G2780, G27-80, MILG18997, MIL-G-18997, 6685-00-413-4534, 00-413-4534, 6685004134534, 004134534
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 MAY 1970 | 00-413-4534 | 07424 ( GAGE, COMPOUND PRESSURE-VACUUM, DIAL INDICATING ) |

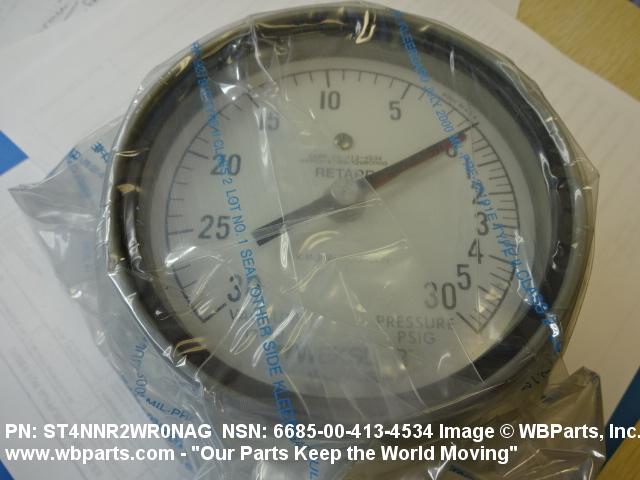

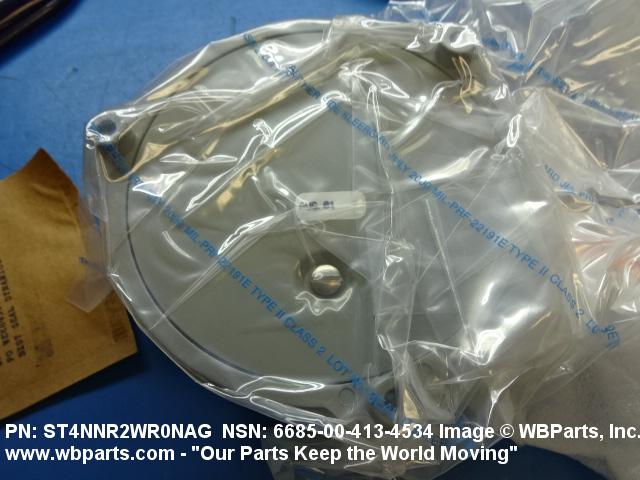

Drawings & Photos | NSN 6685-00-413-4534
Demand History | NSN 6685-00-413-4534
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-413-4534 | 2024-11-318 | 3 | DIBBS |
| 6685-00-413-4534 | 2024-09-248 | 4 | DIBBS |
| 6685-00-413-4534 | 2024-08-235 | 3 | DIBBS |
| 6685-00-413-4534 | 2024-07-200 | 3 | DIBBS |
| 6685-00-413-4534 | 2024-07-189 | 1 | DIBBS |
| 6685-00-413-4534 | 2024-07-189 | 4 | DIBBS |
| MILG18997 | 2021-04-109 | 8 | US |
| 6685-00-413-4534 | 2019-09-266 | 6 | United States |
| 6685-00-413-4534 | 2019-04-93 | 6 | DIBBS |
| 6685-00-413-4534 | 2018-06-156 | 10 | DIBBS |
| 6685-00-413-4534 | 2015-06-156 | 46 | DIBBS |
| 6685-00-413-4534 | 2015-05-132 | 12 | DIBBS |
| 6685-00-413-4534 | 2015-04-93 | 33 | DIBBS |
| 6685-00-413-4534 | 2015-01-11 | 16 | DIBBS |
| 6685-00-413-4534 | 2014-12-336 | 5 | DIBBS |
| 6685-00-413-4534 | 2014-10-299 | 3 | DIBBS |
| 6685-00-413-4534 | 2010-09-273 | 2 | DIBBS |
| 6685-00-413-4534 | 2010-03-74 | 2 | DIBBS |
Cross Reference | NSN 6685-00-413-4534
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-413-4534
Related Products | NSN 6685-00-413-4534
Technical Data | NSN 6685-00-413-4534
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL COPPER ALUMINUM ALLOY |
| SCALE TYPE | MULTIPLE |
| SCALE NAME | PRESSURE AND PRESSURE-VACUUM |
| SCALE RANGE | 0.0 TO 30.0 INCHES OF MERCURY AND 0.0 TO 30.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 1 PCT ENTIRE RANGE |
| GRADUATION UNIT | 2.0 INCHES AND 10.0 INCHES AND 1.0 POUNDS PER SQUARE INCH AND 10.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 0.5 INCHES OF MERCURY AND 1.0 OUNCES AND 5.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING AND REFERENCE |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK AND RED |
| SCALE NAME FOR WHICH POINTER IS DESIGNED | PRESSURE-VACUUM |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ENAMEL |
| OVERALL DIAMETER | 4.969 INCHES NOMINAL |
| OVERALL DEPTH | 2.500 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BOTTOM |
| CONNECTION SIZE | 0.250 IN. TUBE |
| MOUNTING METHOD | SURFACE WALL |
| BOLT CIRCLE DIAMETER | 5.375 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III END ITEM IDENTIFICATION | POSEIDON SUB/NAVY STRATEGIC WEAPON SYS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-18997 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ST4NNR2WRONAG |
Restrictions/Controls & Freight Information | NSN 6685-00-413-4534
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-413-4534
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
