NSN 6685-00-684-2799 A23171, SCD10230, FA129321
Product Details | DIAL INDICATING ABSOLUTE PRESSURE GAGE
6685-00-684-2799 An instrument designed to measure pressure, and indicate in terms of pressure above vacuum (zero pressure) by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) without the necessity of correction or adjustment for barometric or atmospheric pressure. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.20342400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: A23171, SCD10230, FA129321, FA129322, FA129323, FA129340, FA129-340, 7912574, 002760, 10230, 129340, 202-24000-1, 6084691, 608469-1, 61A1B0100, 6685-00-684-2799, 00-684-2799, 6685006842799, 202240001, 006842799
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-684-2799 | 07420 ( GAGE, ABSOLUTE PRESSURE, DIAL INDICATING ) |

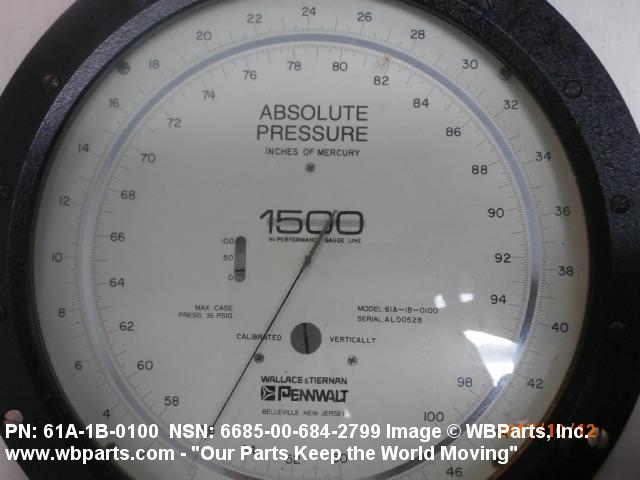

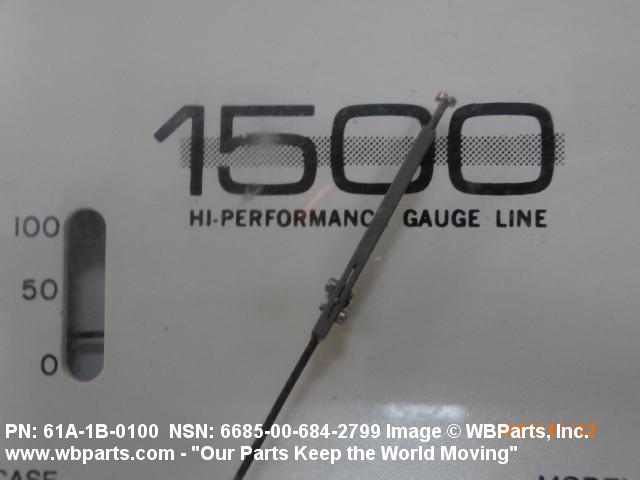

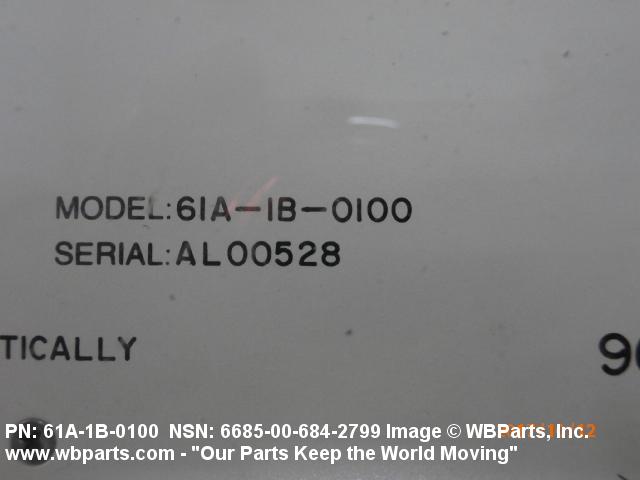

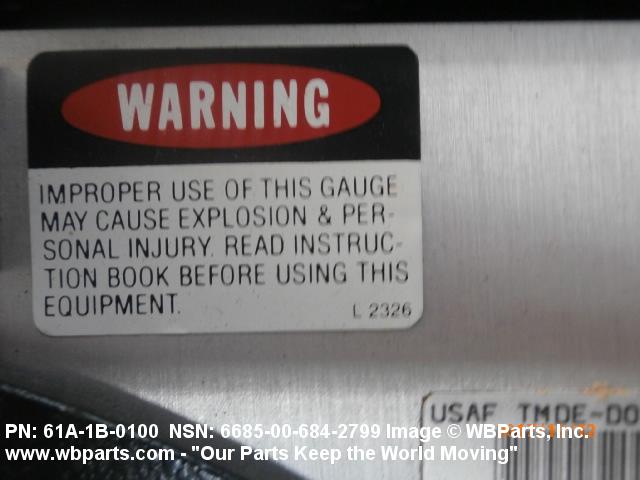

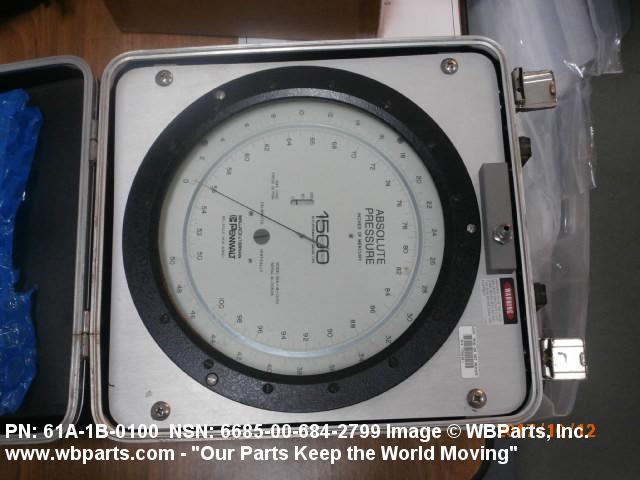

Drawings & Photos | NSN 6685-00-684-2799
Demand History | NSN 6685-00-684-2799
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FA129340 | 2017-09-256 | 1 | United States |
| 10230 | 2013-04-110 | 1 | |
| 10230 | 2012-09-261 | 200 | United States |
Cross Reference | NSN 6685-00-684-2799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002760 | 19497 | GOLEMAN J B AND ASSOCIATES INC |
| 10230 | 04984 | CELTECH CORPORATION DBA SPACE DIVISION |
| 129340 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| 202-24000-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| 608469-1 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 61A1B0100 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| 61A1B0100 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| 7912574 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| A23171 | 81205 | THE BOEING COMPANY DBA BOEING |
| FA129-340 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| FA129-340 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| FA129321 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| FA129321 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| FA129322 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| FA129322 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| FA129323 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| FA129323 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| FA129340 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| SCD10230 | 04984 | CELTECH CORPORATION DBA SPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-684-2799
Related Products | NSN 6685-00-684-2799
Technical Data | NSN 6685-00-684-2799

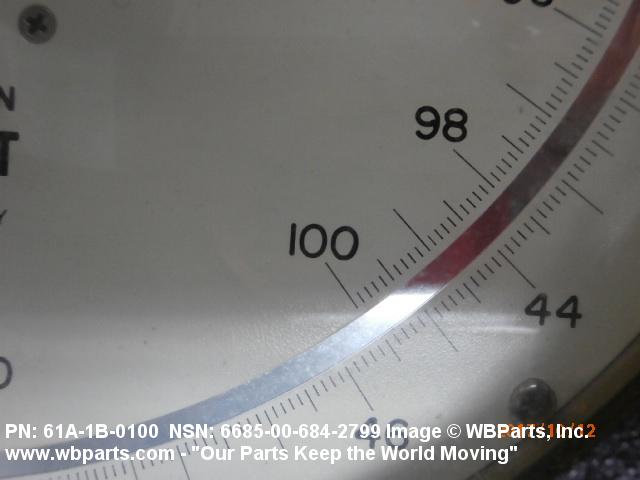

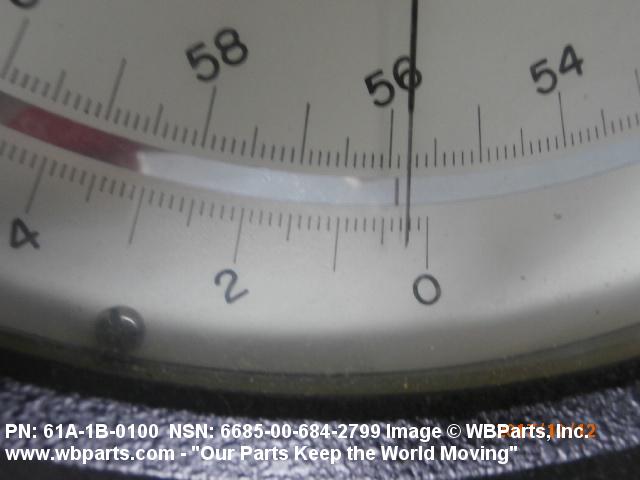

| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | DIAPHRAGM |
| ACTUATING ELEMENT MATERIAL | NI-SPAN C |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 100.000 INCHES OF MERCURY |
| SCALE ACCURACY | 0.1 PCT ENTIRE RANGE |
| GRADUATION UNIT | 1.0 INCHES |
| SCALE SMALLEST INCREMENT | 0.1 INCHES |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |

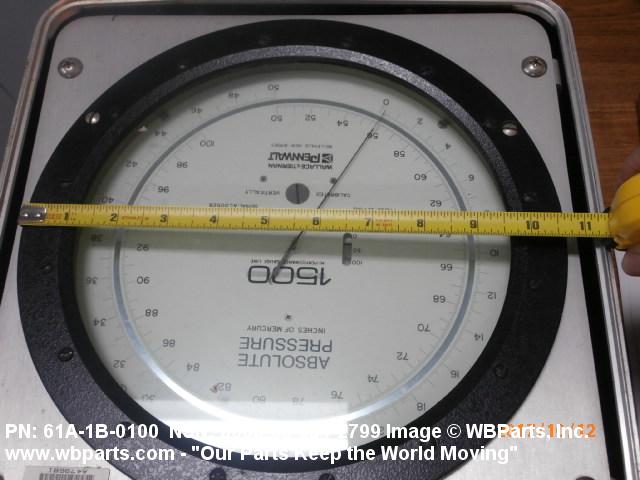

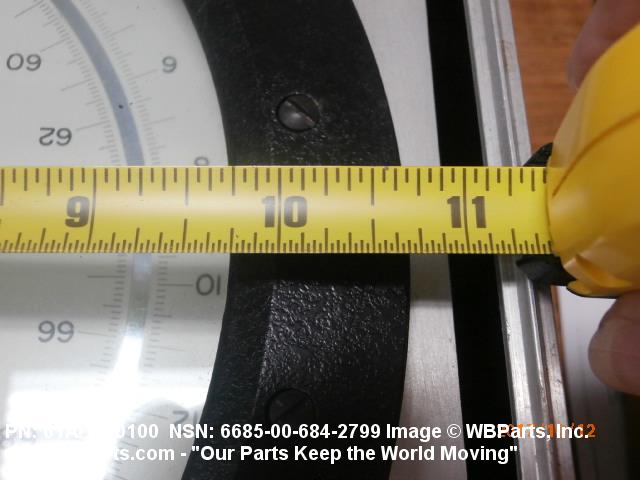

| DIAL SIZE | 8-1/2 IN. DIA |

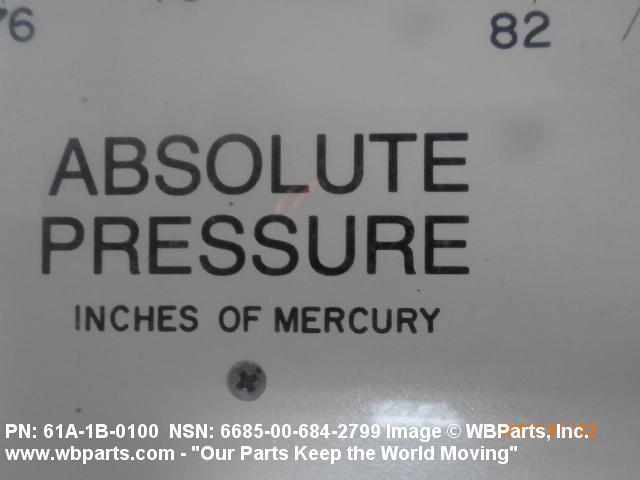

| SCALE MARKING | ABSOLUTE PRESSURE |
