Product Details | PRESSURE INDICATOR
6685-00-772-8853 An indicator which indicates the pressure of a gas or liquid in a given system.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 119085, 1392579, 1507680, 1507786, 1508100, 41392579, 421609, 502IP6, 517N1, 7728853, 8674895, 914898, 6685-00-772-8853, 00-772-8853, 6685007728853, 007728853
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-772-8853 | 03378 ( INDICATOR, PRESSURE ) |

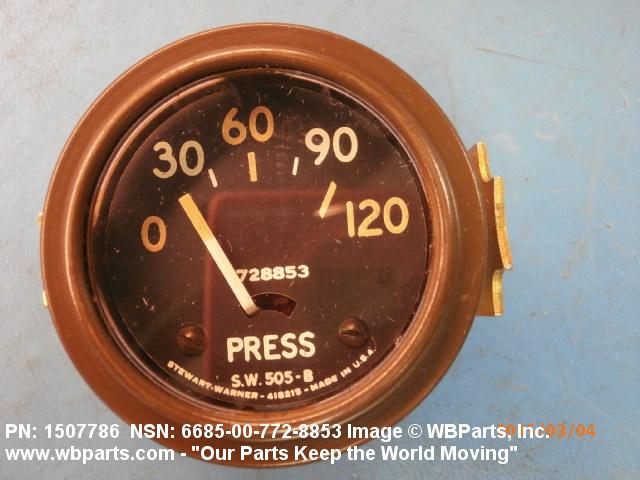

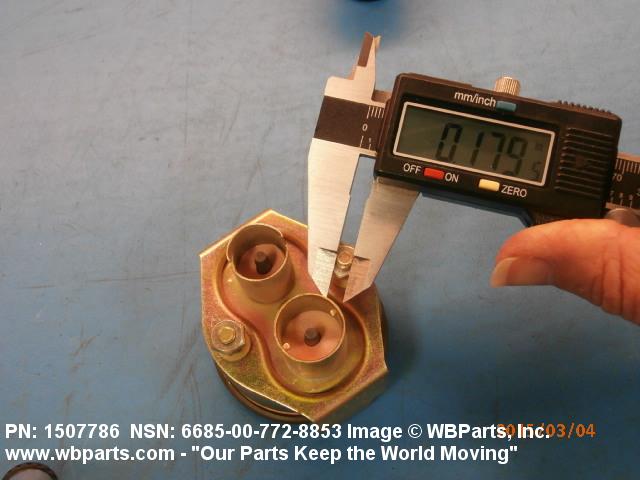

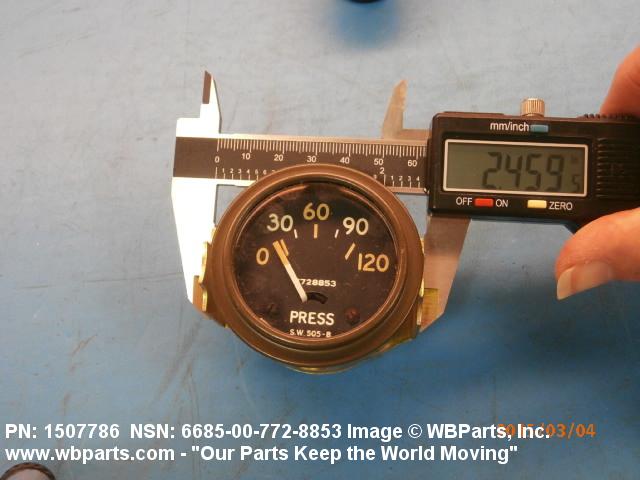

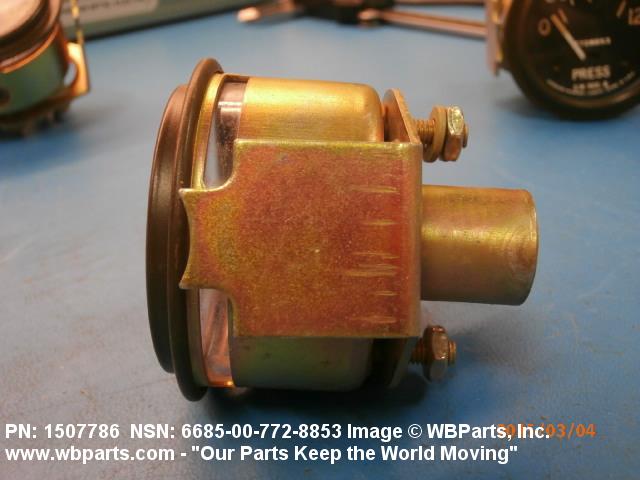

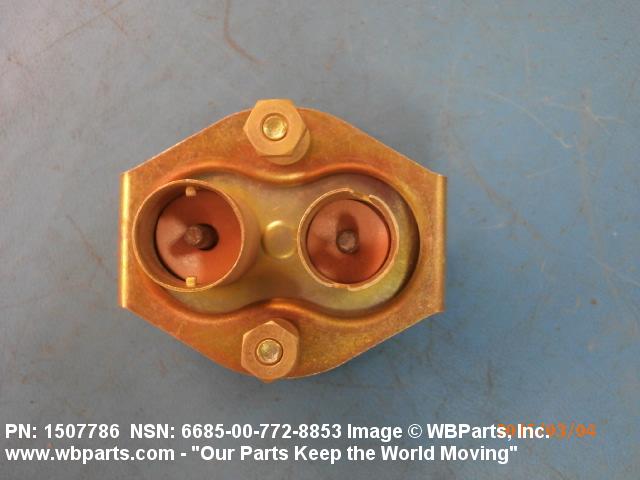

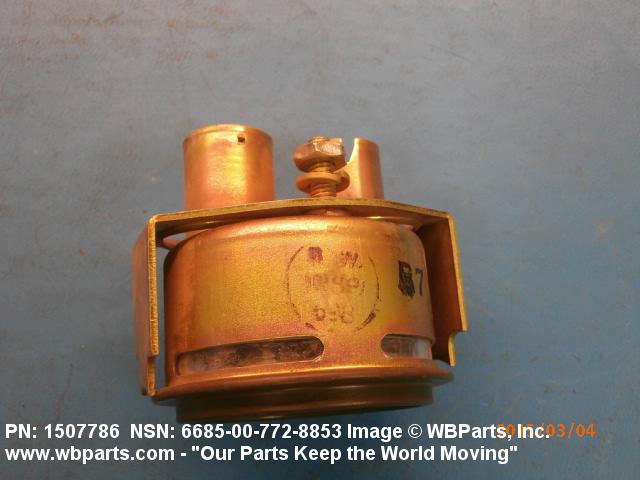

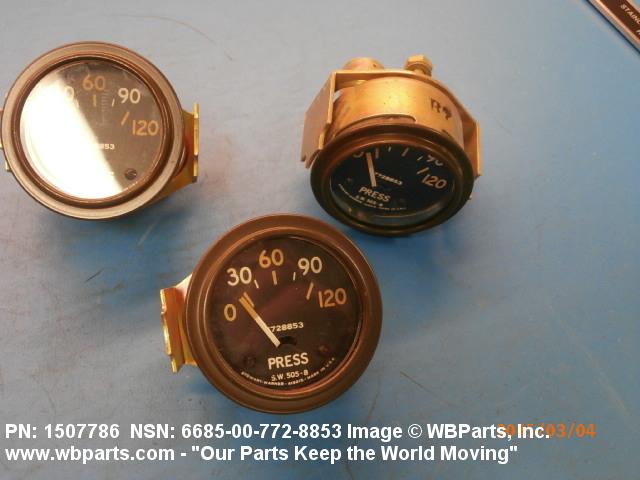

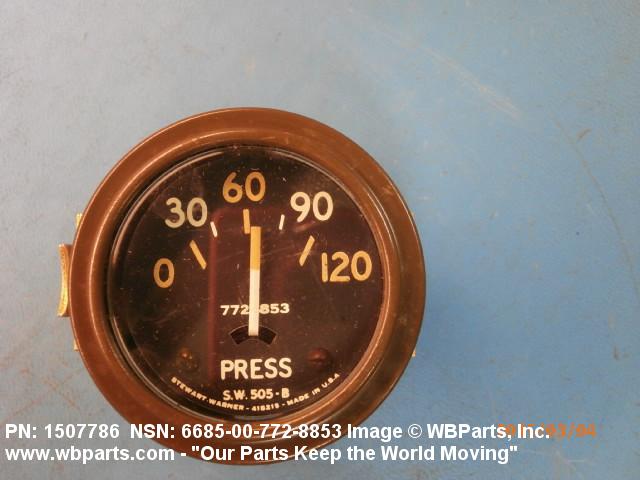

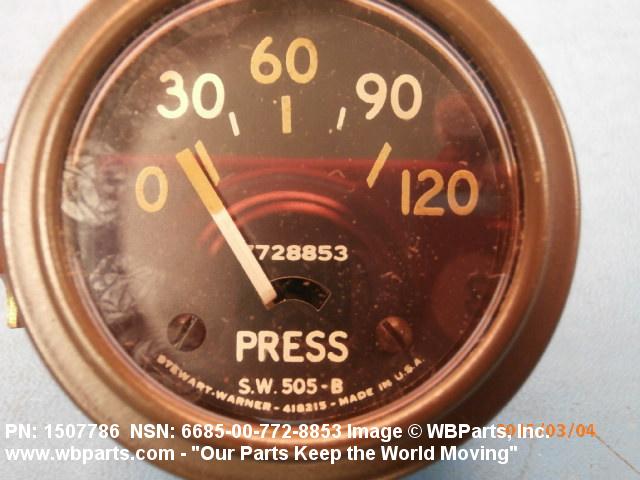

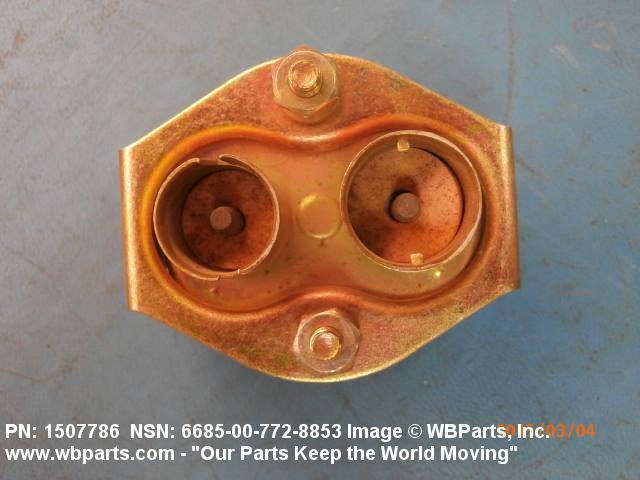

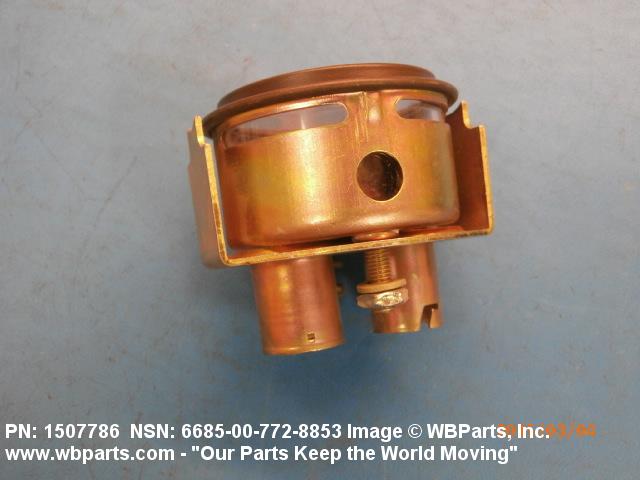

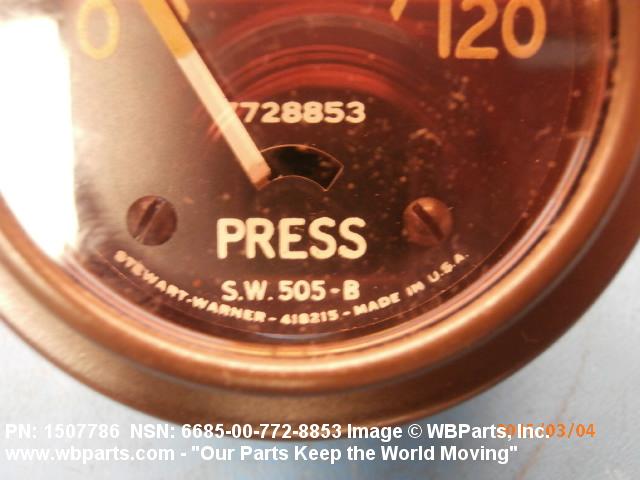

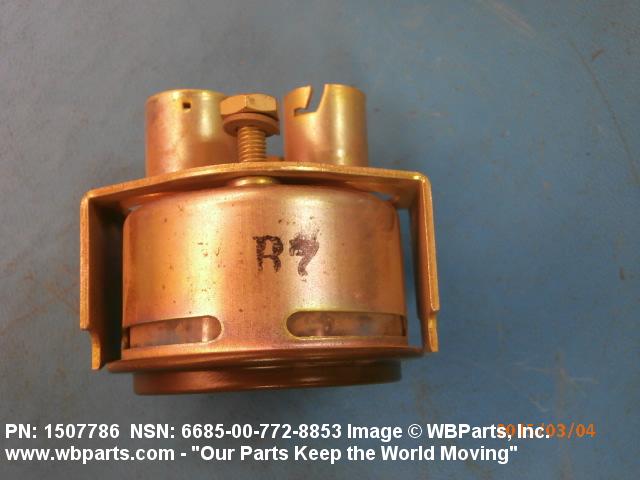

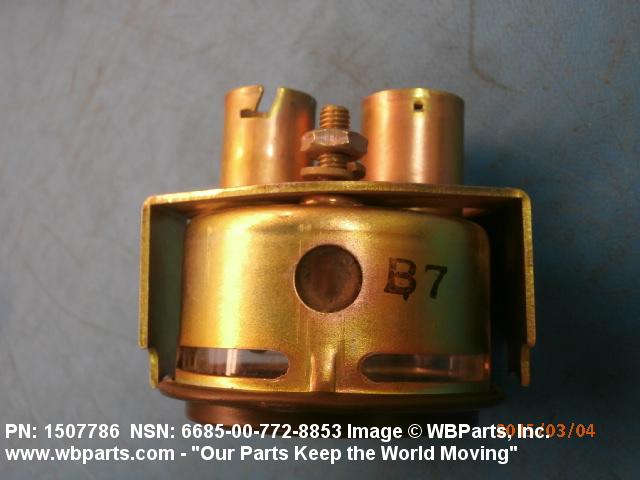

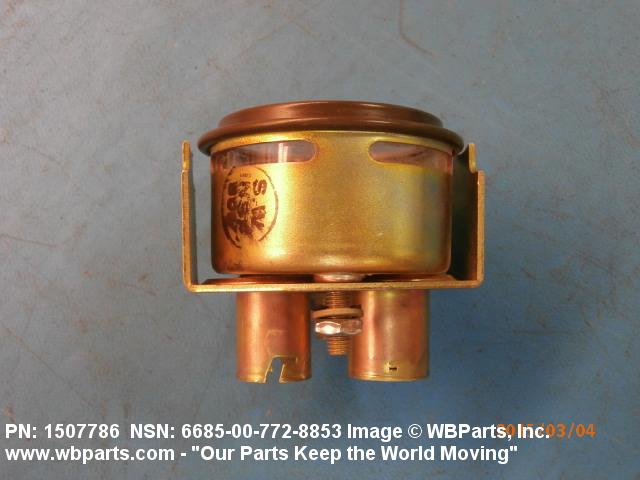

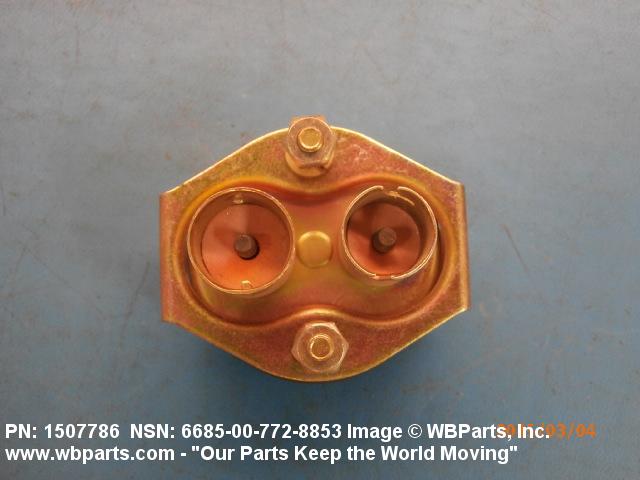

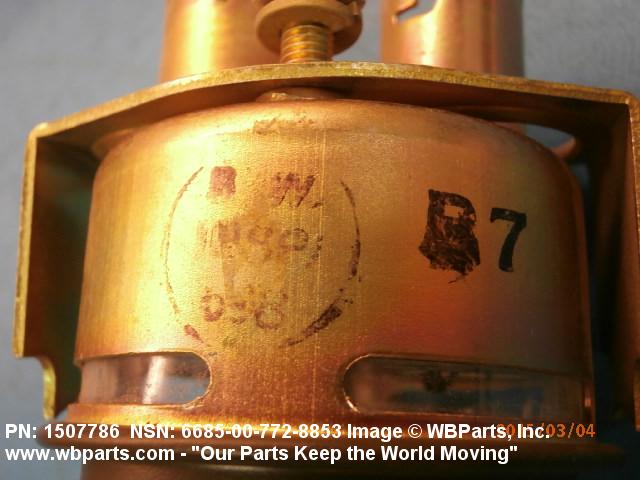

Drawings & Photos | NSN 6685-00-772-8853
Demand History | NSN 6685-00-772-8853
Cross Reference | NSN 6685-00-772-8853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119085 | 34623 | AM GENERAL, LLC |
| 1392579 | 12204 | DAIMLER CHRYSLER |
| 1507680 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1507680 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1507786 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1507786 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1508100 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1508100 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 41392579 | 12204 | DAIMLER CHRYSLER |
| 421609 | 12603 | CLARK EQUIPMENT CO |
| 502IP6 | 45152 | OSHKOSH CORPORATION |
| 502IP6 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 517N1 | 56442 | DIAMOND REO TRUCK CO |
| 7728853 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8674895 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 914898 | 58275 | SASCO INC CANADIAN DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6685-00-772-8853
Related Products | NSN 6685-00-772-8853
6685-00-772-9615, 6685-00-772-9625, 6685-00-773-0238, 6685-00-773-2763, 6685-00-773-5728
Technical Data | NSN 6685-00-772-8853
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 2 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | 572929 |
| ACCURACY RATING | 30.0 POUNDS SINGLE INDICATOR SINGLE SCALE |
| SCALE RANGE | 0.0 TO 120.0 POUNDS SINGLE INDICATOR SINGLE SCALE |
| ILLUMINATION COLOR GENERATION METHOD | INTEGRAL LIGHT |
| CURRENT TYPE | DC |
| CONTACT QUANTITY | 2 |
| CONTACT TYPE | PIN |
| MOUNTING STUD DIAMETER | 0.190 INCHES NOMINAL |

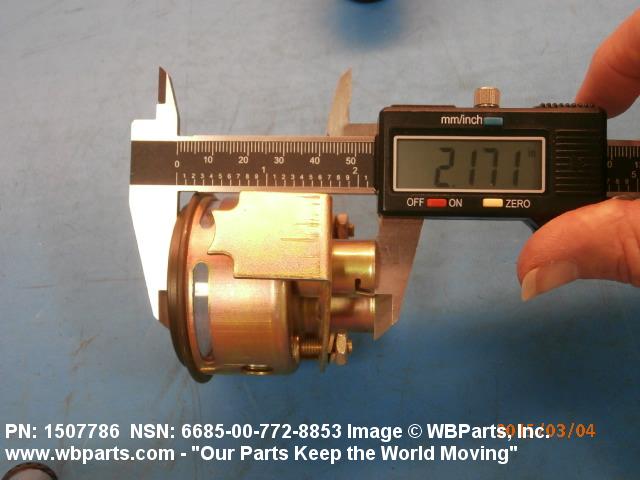

| LENGTH | 2.141 INCHES NOMINAL |
| WIDTH | 2.438 INCHES NOMINAL |
| HEIGHT | 2.297 INCHES MINIMUM AND 2.328 INCHES MAXIMUM |
| FEATURES PROVIDED | ENCAPSULATED |
| SPECIAL FEATURES | CASE GROUNDED NEGATIVE |
Restrictions/Controls & Freight Information | NSN 6685-00-772-8853
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | X1 | Multiple Hazards Under One NSN * MULTIPLE HAZARDS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-772-8853
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
