NSN 6685-00-839-6404 229, 00-839-6404, 008396404
Product Details | SELF-INDICATING THERMOMETER
6685-00-839-6404 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.20365150057Medical and Surgical Instruments, Equipment, and Supplies66600040Meteorological Instruments and Apparatus66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 229, 6685-00-839-6404, 00-839-6404, 6685008396404, 008396404
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-839-6404 | 42787 ( THERMOMETER, SELF-INDICATING ) |
Drawings & Photos | NSN 6685-00-839-6404
Demand History | NSN 6685-00-839-6404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 229 | 2018-01-09 | 2 | US |
| 229 | 2017-08-226 | 20 | Germany |
Cross Reference | NSN 6685-00-839-6404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 229 | 35786 | WINTERS INSTRUMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-839-6404
Technical Data | NSN 6685-00-839-6404
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | METAL |
| SCALE MEASUREMENT RANGE | 30.000 TO 180.000 DEG FAHRENHEIT |
| SCALE ADJUSTMENT VARIATION | 1 DIVISION |
| MATERIAL | BRASS METER CASE |
| SURFACE TREATMENT | CHROMIUM METER CASE |
| STYLE DESIGNATOR | A4 90 DEG BACK ANGLE |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |

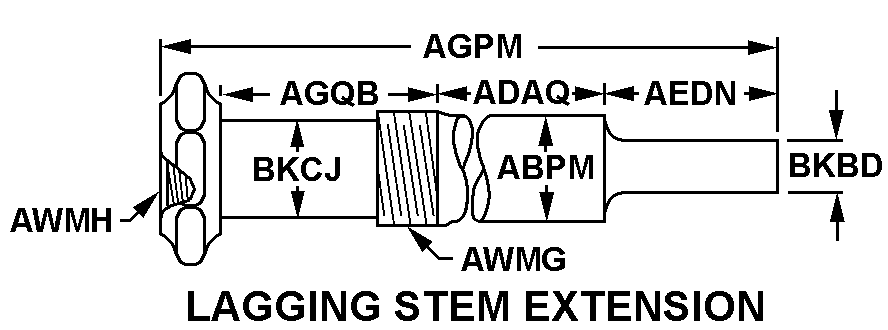

| SEPARABLE SOCKET STYLE | J5 LAGGING STEM EXTENSION |
| BODY DIAMETER | 0.656 INCHES NOMINAL |
| BODY LENGTH | 6.000 INCHES NOMINAL |
| BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| EXTENSION NECK DIAMETER | 0.750 INCHES NOMINAL |
| NECK LENGTH | 2.500 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 12.375 INCHES NOMINAL |
| TIP LENGTH | 2.500 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 3/4 IN. NPT |
| INTERNAL THREAD SIZE | 1.1-4 IN. NPT |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 2.500 INCHES NOMINAL |
| FEATURES PROVIDED | LENS MAGNIFYING FRONT AND EXPANSION CHAMBER AND PROTECTIVE GLASS/PLASTIC |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON SILVER BACKGROUND |
| III SCALE ACCURACY RATING | PORM 1 PCT FROM 90 TO 110 DEG RANGE |
| III SCALE SMALLEST INCREMENT | 1.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 6685-00-839-6404
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
