NSN 6685-00-906-0156 MILI26860, 8355883, 00-906-0156
Product Details | PLUG HUMIDITY INDICATOR

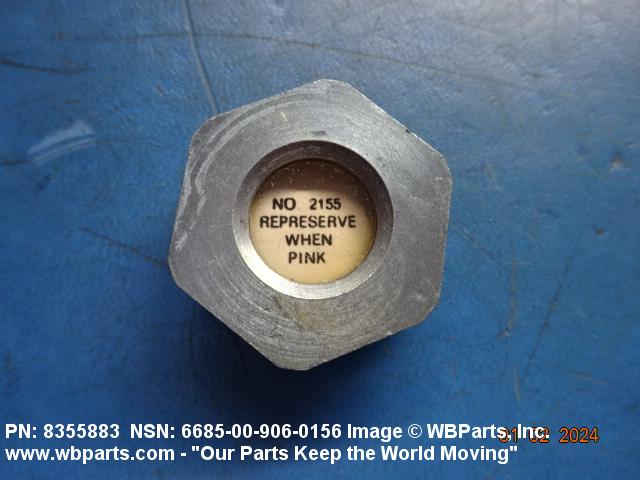

6685-00-906-0156 An item which uses the changing color of a desiccant in the presence of moisture to indicate humidity. The desiccant is in a plug through which the color may be observed and compared with a chart.
Part Alternates: MILI26860, 8355883, 6685-00-906-0156, 00-906-0156, 6685009060156 , 009060156
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-906-0156 | 08357 ( INDICATOR, HUMIDITY, PLUG ) |

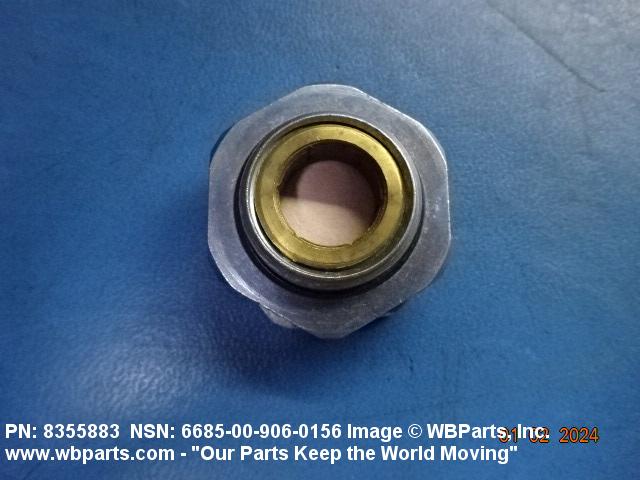

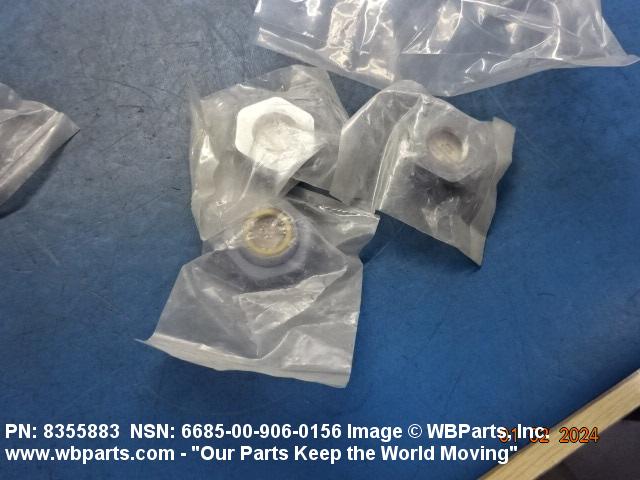

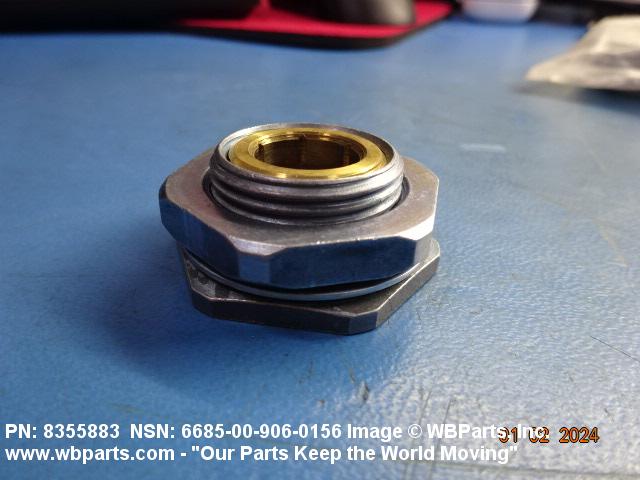

Drawings & Photos | NSN 6685-00-906-0156
Demand History | NSN 6685-00-906-0156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILI26860 | 2024-06-164 | 2 | CO |
| 6685-00-906-0156 | 2023-11-332 | 6 | United States |
| MILI26860 | 2021-10-274 | 10 | US |
| 6685-00-906-0156 | 2013-04-108 | 20 | MANUAL |
| 8355883 | 2011-11-305 | 100 | United States |
| 6685-00-906-0156 | 2009-09-252 | 41 | United States |
| 6685-00-906-0156 | 2007-10-296 | 1516 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-906-0156
Technical Data | NSN 6685-00-906-0156
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | C5 PLUG |

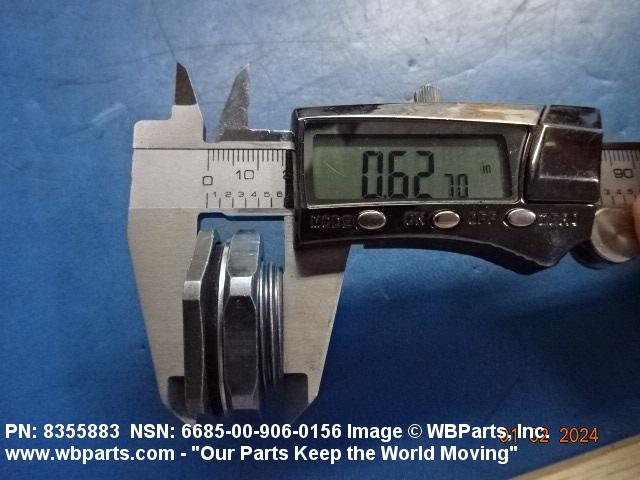

| OVERALL HEIGHT | 0.625 INCHES NOMINAL |

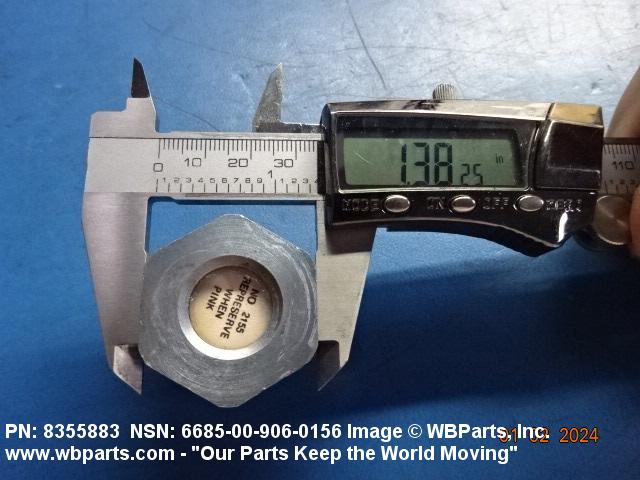

| WIDTH ACROSS FLATS | 1.375 INCHES NOMINAL |
| DESICCANT SPOT HUMIDITY PERCENTAGE | 20.0 |
| MINIMUM DESICCANT CAPACITY | 0.07 GRAMS |
| END CONNECTION TYPE | THREADED EXTERNAL, PLAIN SINGLE END |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES SINGLE END |
| FEATURES PROVIDED | REFILLABLE |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI26860 |
Restrictions/Controls & Freight Information | NSN 6685-00-906-0156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6685-00-906-0156
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
