NSN 6685-01-100-1638 W655A, W655A1044, 01-100-1638
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-100-1638 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: W655A, W655A1044, 6685-01-100-1638, 01-100-1638, 6685011001638, 011001638
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 03 AUG 2006 | 01-100-1638 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-01-100-1638
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-100-1638
Technical Data | NSN 6685-01-100-1638
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | 40.000 TO 120.000 DEG FAHRENHEIT |
| MATERIAL | STEEL CORROSION RESISTING BULB |
| STYLE DESIGNATOR | D1 PLAIN RIGID |
| BULB TIP LENGTH | 10.500 INCHES NOMINAL |
| CASE DIAMETER | 4.062 INCHES NOMINAL |
| DIAL DIAMETER | 3.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | RIGID STEM WITH SWIVEL |
| BULB TYPE | BENDABLE PLAIN |
| BULB QUANTITY | 1 |

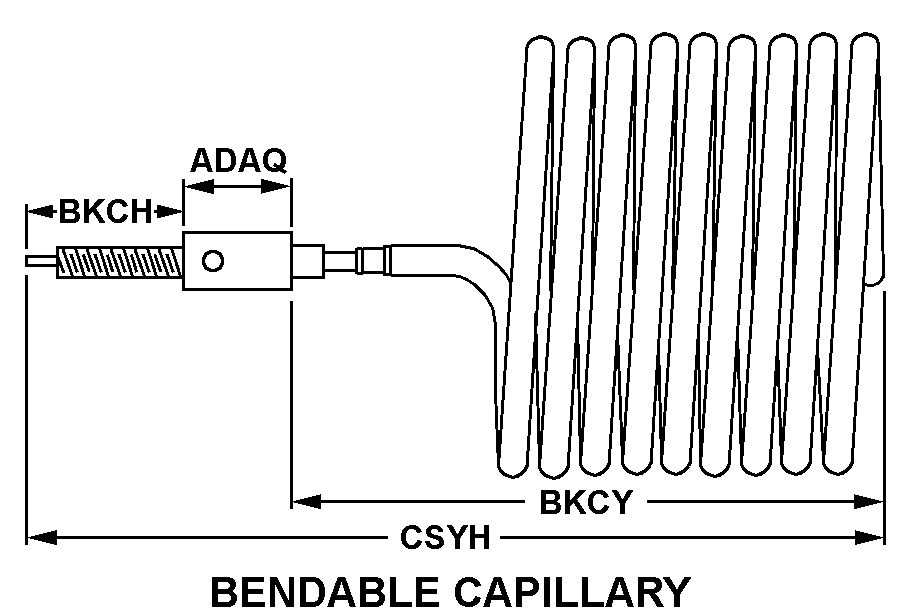

| BULB STYLE | K4 BENDABLE CAPILLARY |
| ACTIVE PORTION LENGTH | 10.500 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.688 INCHES NOMINAL |
| BULB OVERALL LENGTH | 130.000 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 117.250 INCHES NOMINAL |
| BULB CONNECTION TYPE | UNION |
| ACTUATING MEDIUM | XYLENE |
| FEATURES PROVIDED | ZERO ADJUSTMENT |
| III SCALE INSCRIPTION/BACKGROUND COLOR | RAISED BLACK NUMBERS ON SILVER |
| III END ITEM IDENTIFICATION | USED IN HEATING SYSTEM ONBOARD 270 FT WMEC COAST GUARD VESSELS |
| MANUFACTURERS CODE | 27319 |
| DESIGN CONTROL REFERENCE | W655A1044 |
Restrictions/Controls & Freight Information | NSN 6685-01-100-1638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | Z | No Rating |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XG | USCG Engineering Logistics Center Baltimore, MD 21226-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-100-1638
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | O | |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
