NSN 6685-01-118-8555 Z1893A80H07, 01-118-8555, 011188555
Product Details | RESISTANCE INDICATING THERMOMETER
6685-01-118-8555 A thermometer which utilizes a standard electric source of current for determining and indicating temperature, by employing a balanced bridge circuit or an unbalanced deflectional bridge circuit in conjunction with a sensitive bulb whose electrical resistance varies with a change in temperature.
Part Alternates: Z1893A80H07, 6685-01-118-8555, 01-118-8555, 6685011188555, 011188555
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 SEP 1981 | 01-118-8555 | 07345 ( THERMOMETER, INDICATING, RESISTANCE ) |
Drawings & Photos | NSN 6685-01-118-8555
Cross Reference | NSN 6685-01-118-8555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| Z1893A80H07 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-118-8555
Technical Data | NSN 6685-01-118-8555
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | MOVING COIL RATIOMETER |
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | 0.000 TO 200.000 DEG CELSIUS |
| MATERIAL | PLASTIC METER CASE GLASS DIAL FACE |

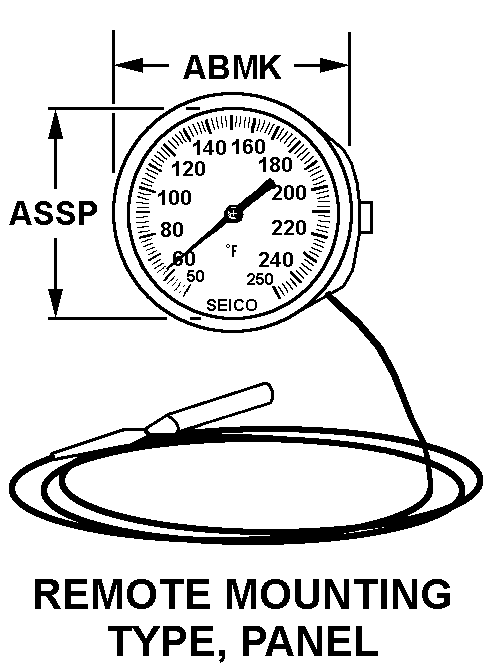

| STYLE DESIGNATOR | G1 REMOTE MOUNTING TYPE, PANEL |
| DIAL DIAMETER | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.422 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 STUD |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.250 INCHES |
| CASE TYPE | RECTANGULAR |
| III SCALE ACCURACY RATING | 1 PCT OF SCALE |
| III SCALE SMALLEST INCREMENT | 5.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | MAIN PROPULSION CONTROL SYSTEM ONBOARD 140 FT WTGB CLASS COAST GUARD VESSELS |
| MANUFACTURERS CODE | 11660 |
| DESIGN CONTROL REFERENCE | Z1893A80H07 |
Restrictions/Controls & Freight Information | NSN 6685-01-118-8555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6685-01-118-8555
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
