NSN 6685-01-143-9587 40830088424, 40-830088-424, 01-143-9587
Product Details | INDICATING TEMPERATURE CONTROL
6685-01-143-9587 A device composed of one or more control-actuating mechanisms, one or more switchs, and graduated scales or other indicators. It is designed to measure and control temperature in ovens, furnaces, and the like, through perception of a sensing element connected to the control. Excludes SWITCH, THERMOSTATIC(00451) and THERMOSTAT, FLOW CONTROL(16516).
Part Alternates: 40830088424, 40-830088-424, 6685-01-143-9587, 01-143-9587, 6685011439587, 011439587
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 DEC 1982 | 01-143-9587 | 05662 ( CONTROL, TEMPERATURE, INDICATING ) |

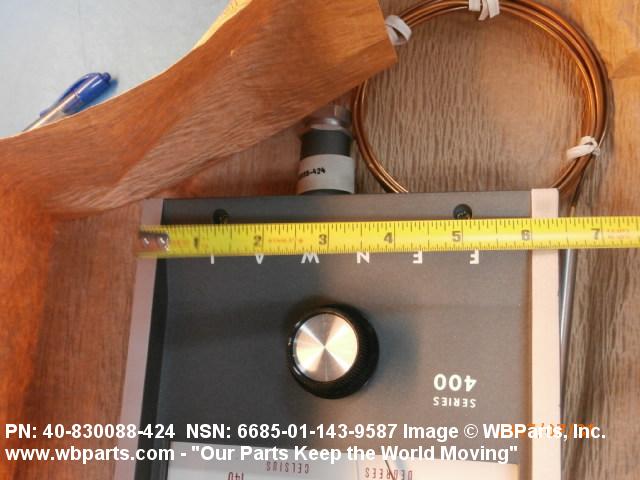

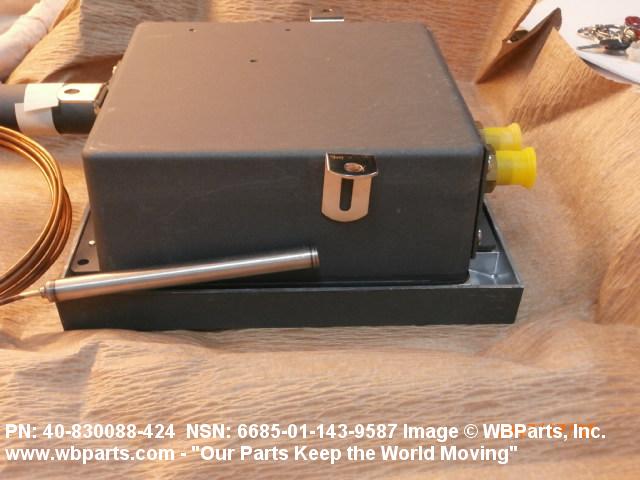

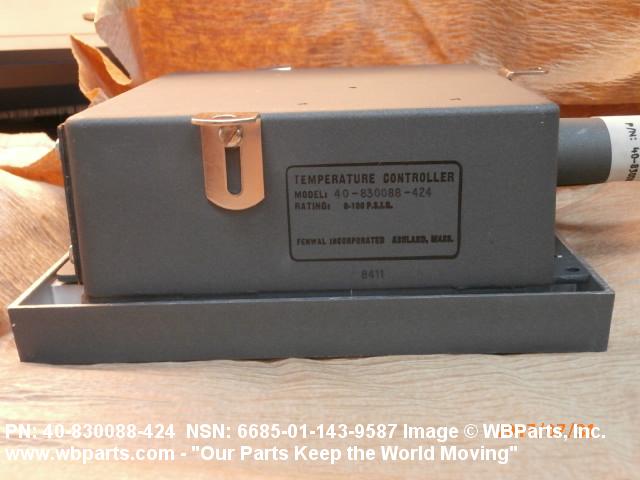

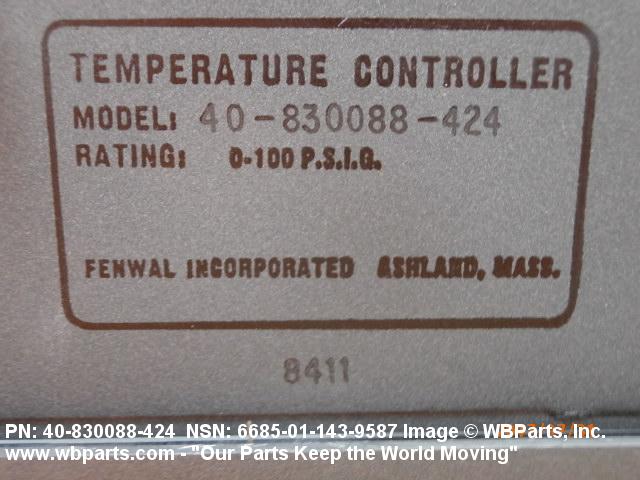

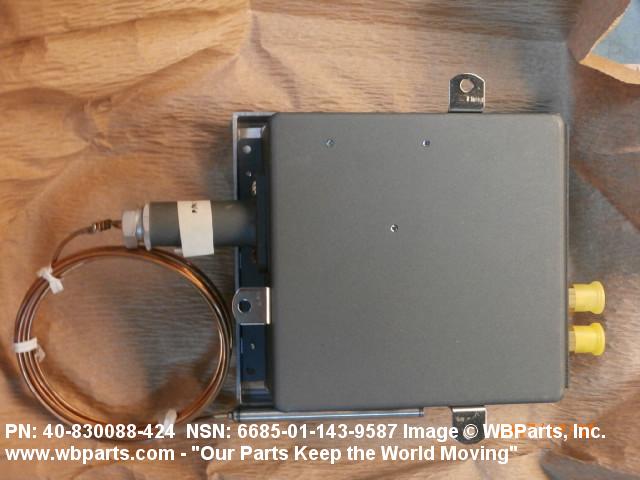

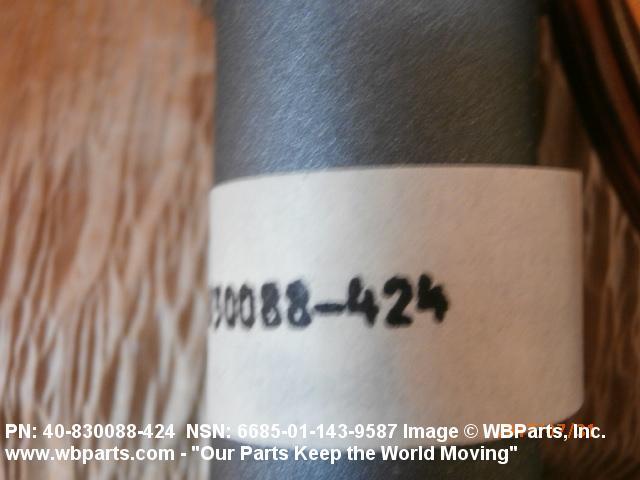

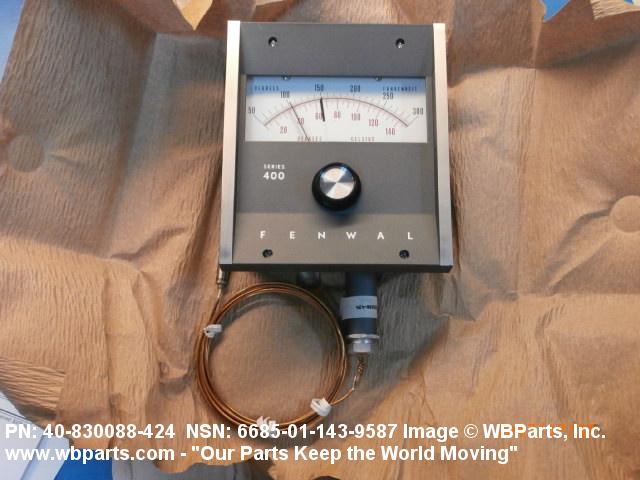

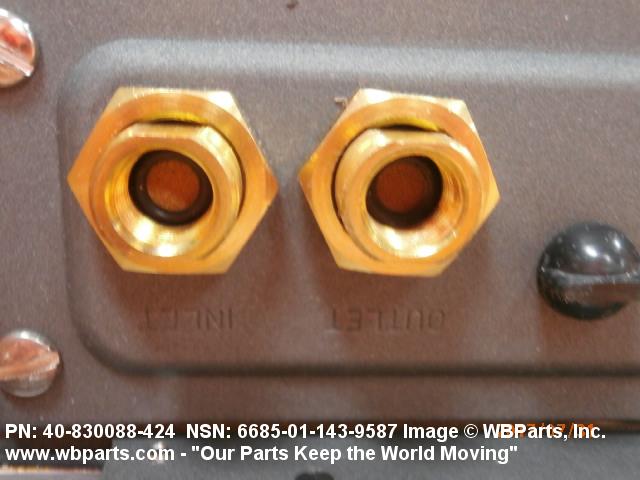

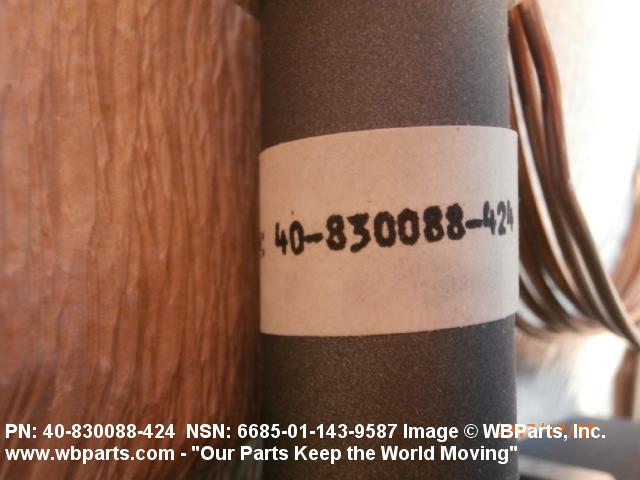

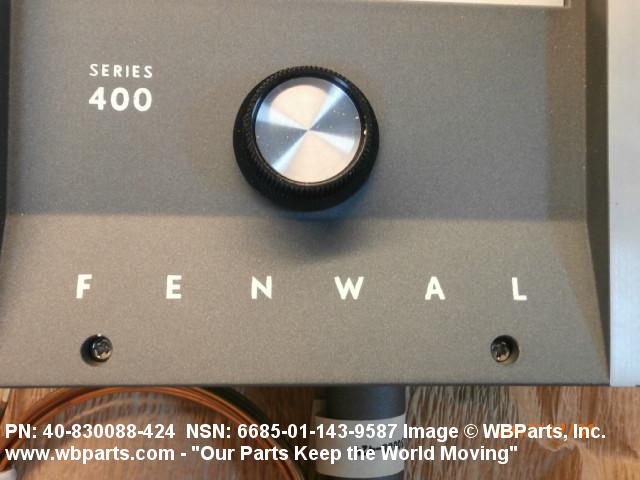

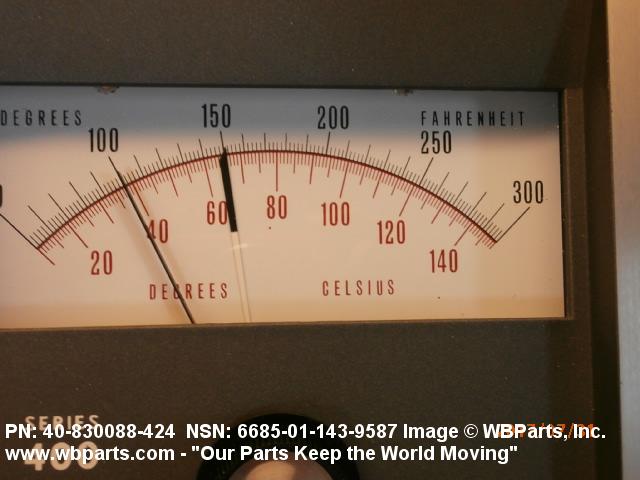

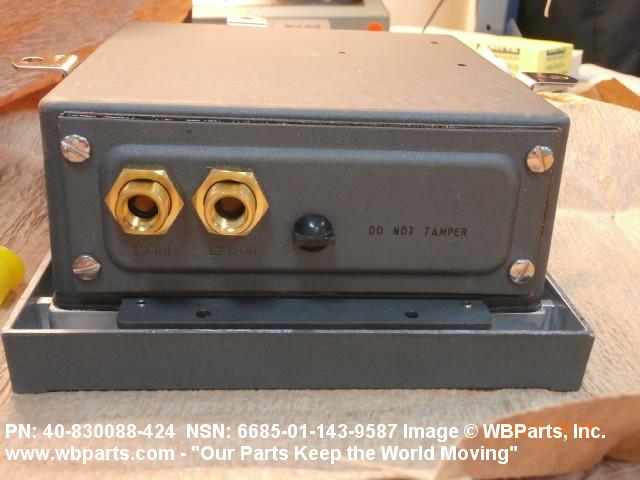

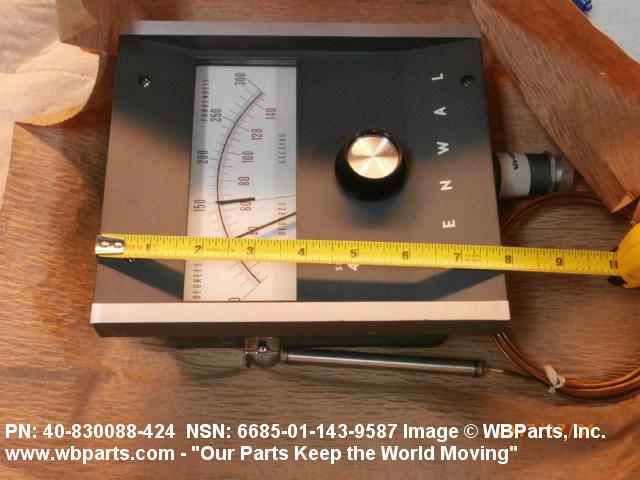

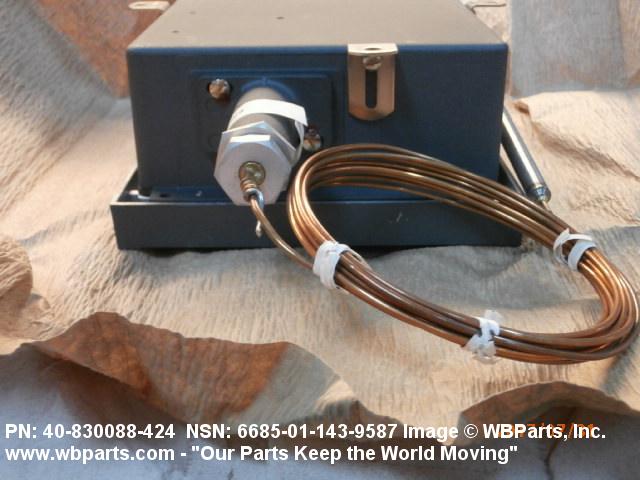

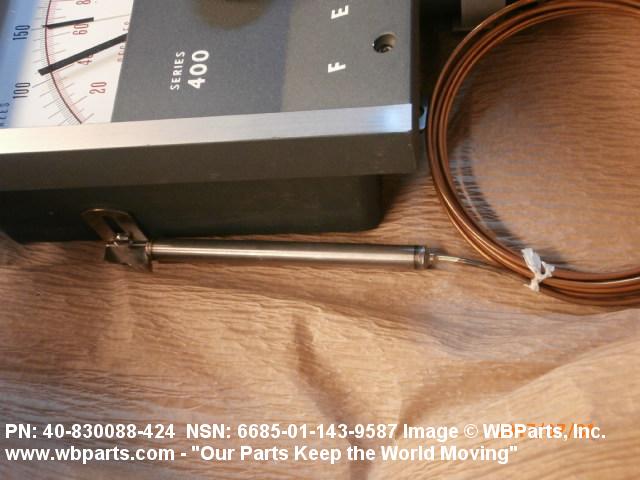

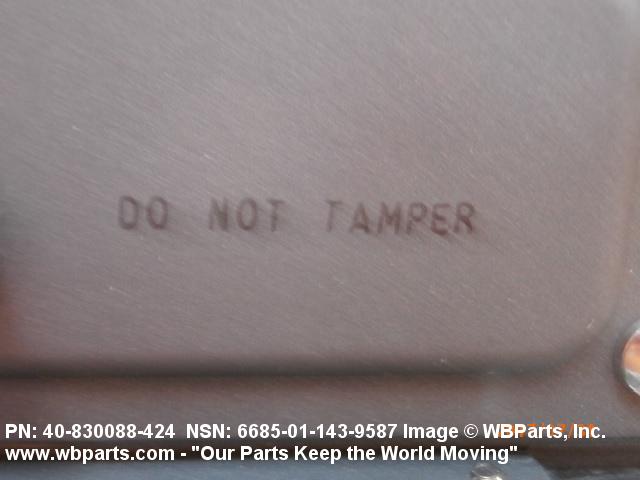

Drawings & Photos | NSN 6685-01-143-9587
Demand History | NSN 6685-01-143-9587
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-143-9587 | 2017-07-201 | 1 | United States |
Cross Reference | NSN 6685-01-143-9587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40-830088-424 | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-143-9587
Technical Data | NSN 6685-01-143-9587
| Characteristic | Specifications |
|---|---|
| POWER SOURCE | EXTERNAL |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC |
| CURRENT RATING IN AMPS | 15.0 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR PLUG |
| TERMINAL LOCATION | ONE SIDE |
| INCLOSURE TYPE | ENCASED |
| MAXIMUM OVERALL LENGTH | 7.875 INCHES |
| MAXIMUM OVERALL WIDTH | 6.875 INCHES |
| SENSING ELEMENT TYPE AND LOCATION | BULB REMOTE |
| OPERATING TEMP RANGE | 50.0 TO 300.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 73168 |
| DESIGN CONTROL REFERENCE | 40-830088-424 |
Restrictions/Controls & Freight Information | NSN 6685-01-143-9587
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 188340 | VALVES THEMOSTATIC NOI/THEMOSTATS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
