NSN 6685-01-274-5507 600A03C37B01L01AG, 600A-03-C37-B01-L01-AG, 01-274-5507
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-274-5507 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 600A03C37B01L01AG, 600A-03-C37-B01-L01-AG, 6685-01-274-5507, 01-274-5507, 6685012745507, 012745507
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 MAR 1988 | 01-274-5507 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-01-274-5507
Cross Reference | NSN 6685-01-274-5507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600A-03-C37-B01-L01-AG | 38056 | ASHCROFT INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-274-5507
Technical Data | NSN 6685-01-274-5507
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | -40.000 TO 180.000 DEG FAHRENHEIT |
| MATERIAL | STEEL COMP 316 BULB |

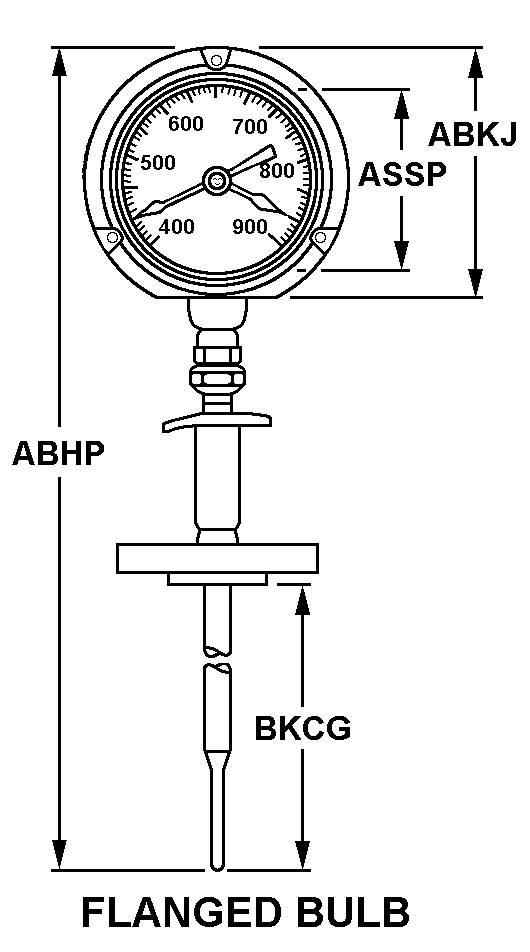

| STYLE DESIGNATOR | D4 FLANGED BULB |
| CASE DIAMETER | 6.000 INCHES NOMINAL |
| DIAL DIAMETER | 4.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| BULB TYPE | FLEXIBLE CAPILLARY |
| BULB QUANTITY | 1 |
| BULB STYLE | K4 BENDABLE CAPILLARY |
| ACTIVE PORTION LENGTH | 4.000 INCHES NOMINAL |
| BULB OVERALL LENGTH | 12.000 INCHES NOMINAL |
| ACTUATING MEDIUM | GAS |
| MANUFACTURERS CODE | 38056 |
| DESIGN CONTROL REFERENCE | 600A-03-C37-B01-L01-AG |
Restrictions/Controls & Freight Information | NSN 6685-01-274-5507
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
