NSN 6685-01-423-5651 1281AF2B1B, 01-423-5651, 014235651
Product Details | PRESSURE TRANSMITTER
6685-01-423-5651 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 1281AF2B1B, 6685-01-423-5651, 01-423-5651, 6685014235651, 014235651
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 02 JAN 1996 | 01-423-5651 | 03375 ( TRANSMITTER, PRESSURE ) |

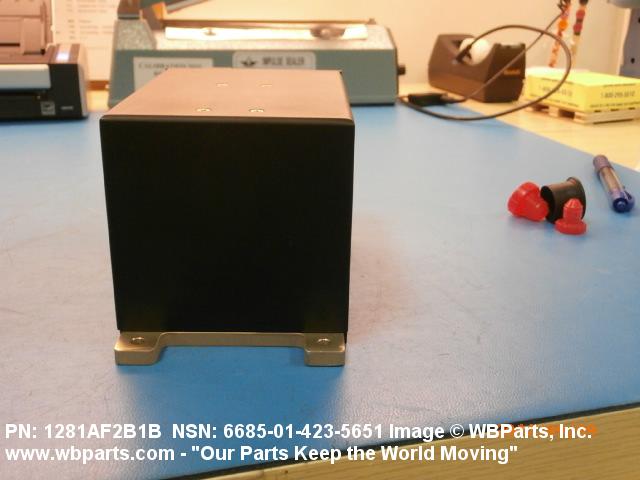

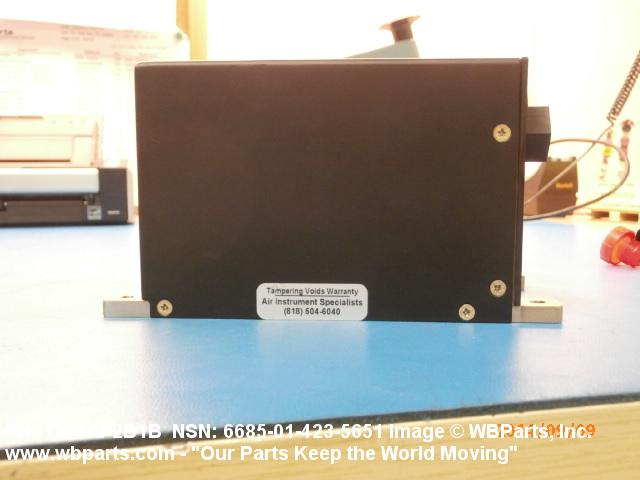

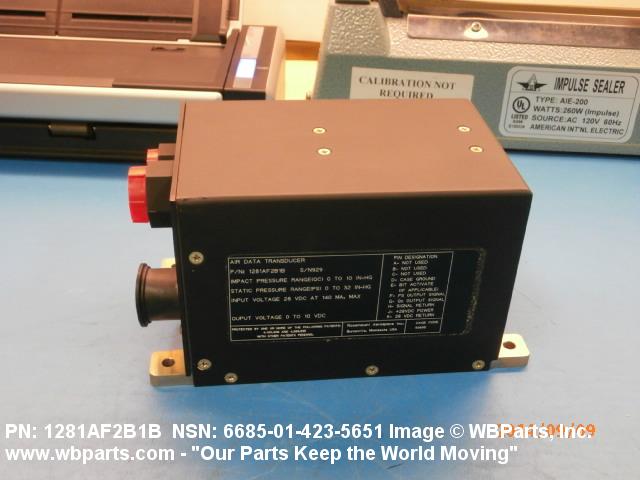

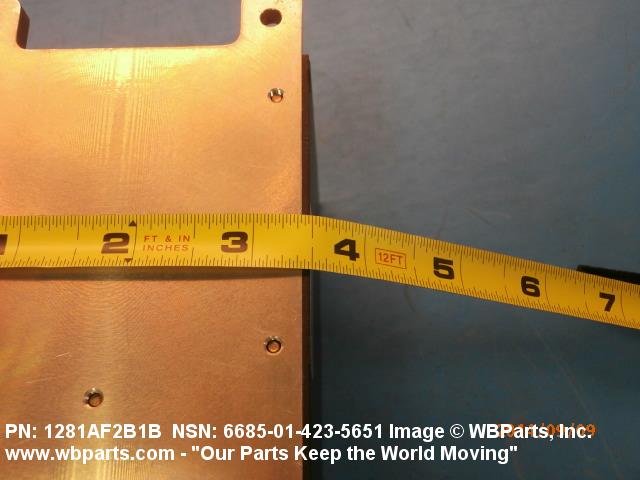

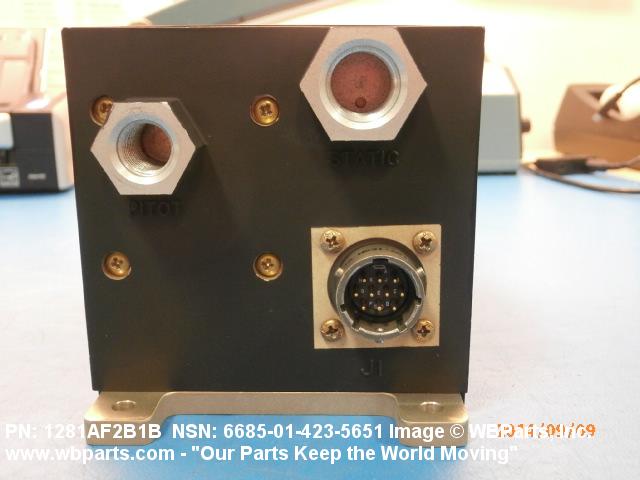

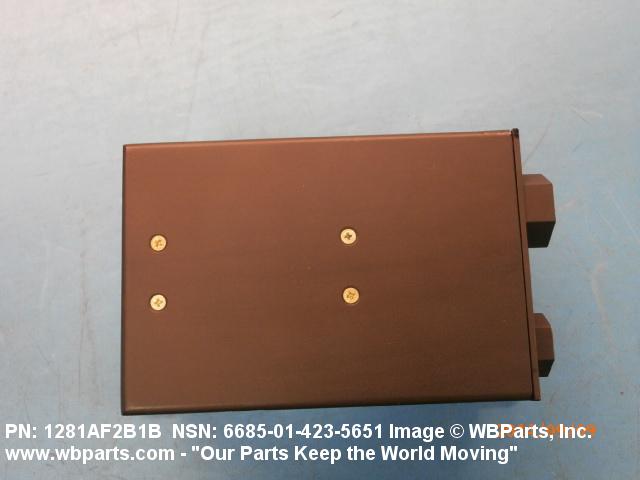

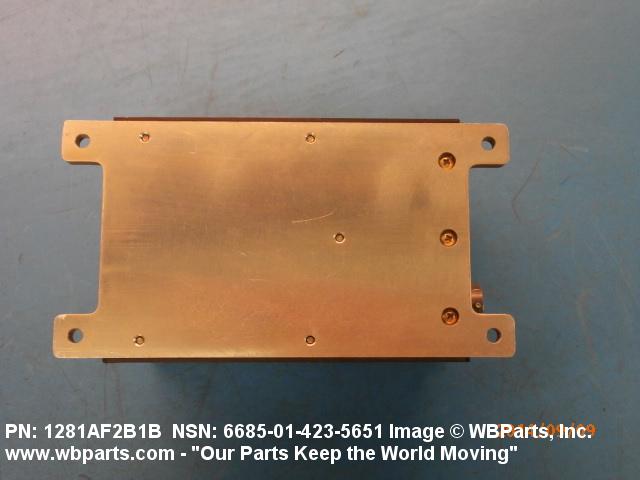

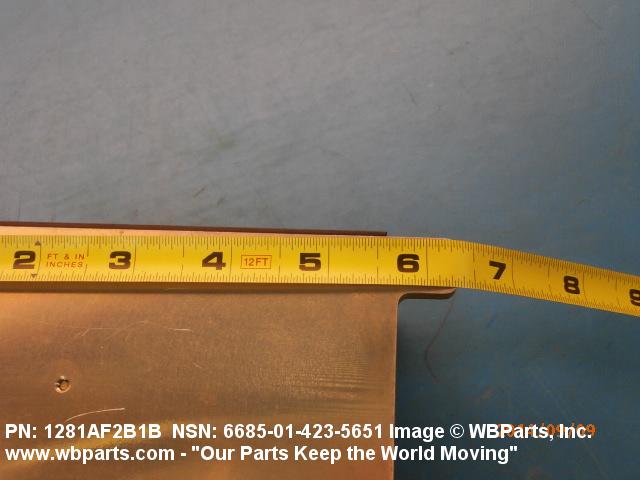

Drawings & Photos | NSN 6685-01-423-5651
Demand History | NSN 6685-01-423-5651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-423-5651 | 2014-08-234 | 1 | United States |
Cross Reference | NSN 6685-01-423-5651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1281AF2B1B | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-423-5651
Technical Data | NSN 6685-01-423-5651
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 15.0 VOLTS NOMINAL INPUT |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| CONTACT QUANTITY | 10 |
| CONTACT TYPE | PIN |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | MS3112E MIL SPEC |

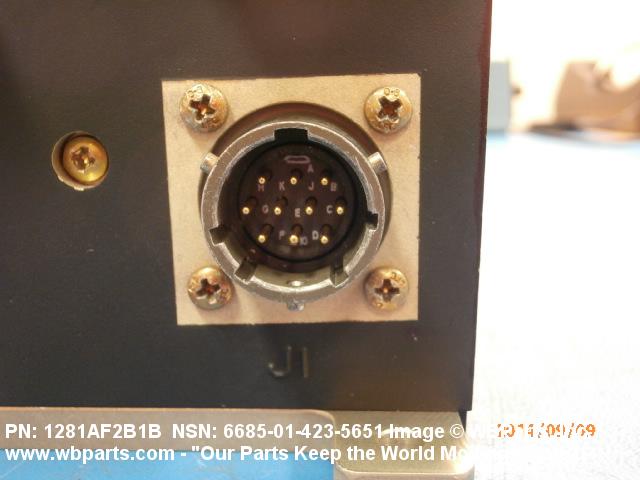

| ELECTRICAL CONNECTION IDENTIFYING NUMBER | MS3112E12-10P |
| MECHANICAL CONNECTION QUANTITY | 2 |

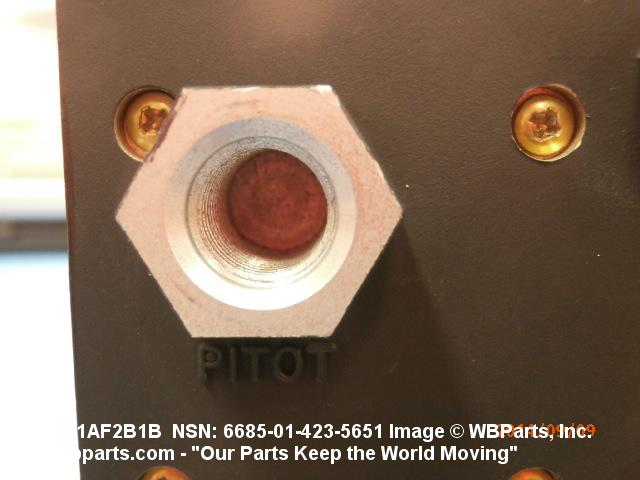

| MECHANICAL CONNECTION SIZE | MS33649-04 AND MS33649-06 |
| MECHANICAL CONNECTION TYPE | NIPPLE |
| ACTUATION METHOD | DOUBLE DIAPHRAGM AND PRESSURE SENSING ELEMENT |
| MEASUREMENT RANGE | 0.0 TO 10.0 INCHES OF MERCURY |

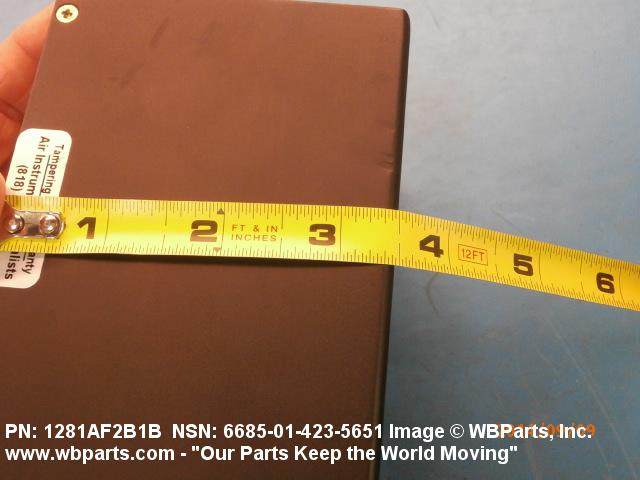

| OVERALL LENGTH | 6.330 INCHES NOMINAL |
| OVERALL WIDTH | 3.460 INCHES NOMINAL |
| OVERALL THICKNESS | 3.460 INCHES NOMINAL |
| MOUNTING DEVICE QUANTITY | 4 |
| MOUNTING METHOD | FLANGE BASE |
| III END ITEM IDENTIFICATION | C/KC-135 AIRCRAFT |

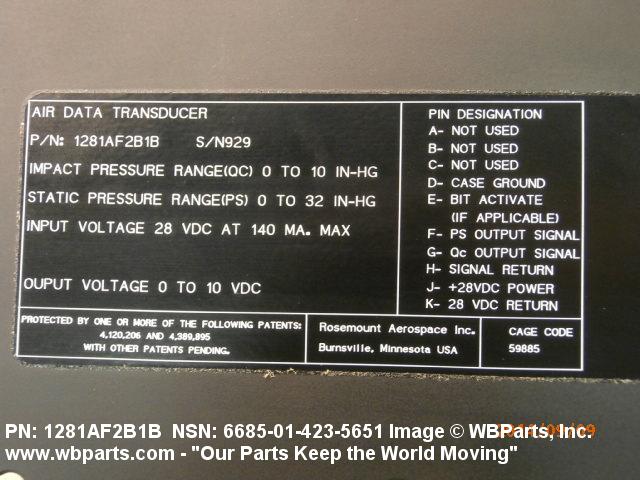

| III USAGE DESIGN | AIR DATA TRANSDUCER FOR AIR DATA COMPUTER AND DISPLAYS |
Restrictions/Controls & Freight Information | NSN 6685-01-423-5651
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 5 | ADP Accessorial Equipment. Represents accessorial equipment which is considered to be a component, device, or unit that is related directly to and essential in the operation of ADPE. Included in this class are complete units and components of related general purpose accessorial equipment which are used as part of a system such as weapon system, control system, missile system, communication system, or navigational system. It also encompasses various units or devices and associated control units that are used in combination or conjunction with the ADPE configuration but are not part of the configuration itself. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
