NSN 6685-01-461-4054 K35150, 01-461-4054, 014614054
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-461-4054 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: K35150, 6685-01-461-4054, 01-461-4054, 6685014614054, 014614054
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 DEC 1998 | 01-461-4054 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-01-461-4054
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-461-4054
Technical Data | NSN 6685-01-461-4054
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| MATERIAL | STEEL METER CASE BRASS PROTECTIVE TUBE |
| SURFACE TREATMENT | ENAMEL METER CASE |
| STYLE DESIGNATOR | D2 BULB W/SOCKET |
| CASE DIAMETER | 4.000 INCHES NOMINAL |
| DIAL DIAMETER | 3.650 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |

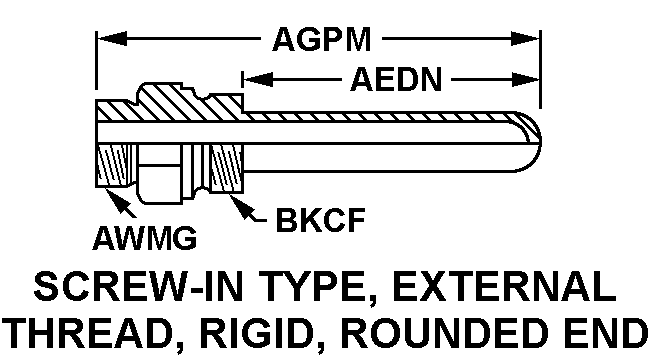

| SEPARABLE SOCKET STYLE | J12 SCREW-IN TYPE, EXTERNAL THREAD, RIGID, ROUNDED END |
| TIP LENGTH | 3.5000 INCHES NOMINAL |
| BULB QUANTITY | 1 |
| ACTUATING MEDIUM | VAPOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 U-CLAMP |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ASSEMBLY, THERMOMETER, VAPOR ACTIVATED, DOUBLE BRAIDED CAP WITH 1/2 NPT UNION CONNECTION, RANGE |
Restrictions/Controls & Freight Information | NSN 6685-01-461-4054
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
