NSN 6685-01-493-4727 75W0450HT260AA150, 75-W-0450-H-T-260-AA-150, 01-493-4727
Product Details | THERMOWELL
6685-01-493-4727 A pressure-tight receptacle mounted to an item by external threads, flange and/or welding. It is designed to hold temperature sensing devices, such as, termocouples, resistance temperature detectors, and thermometers.
Part Alternates: 75W0450HT260AA150, 75-W-0450-H-T-260-AA-150, 6685-01-493-4727, 01-493-4727, 6685014934727, 014934727
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 JAN 2002 | 01-493-4727 | 40096 ( THERMOWELL ) |
Drawings & Photos | NSN 6685-01-493-4727
Cross Reference | NSN 6685-01-493-4727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75-W-0450-H-T-260-AA-150 | 38056 | ASHCROFT INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-493-4727
Technical Data | NSN 6685-01-493-4727
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, STAINLESS |

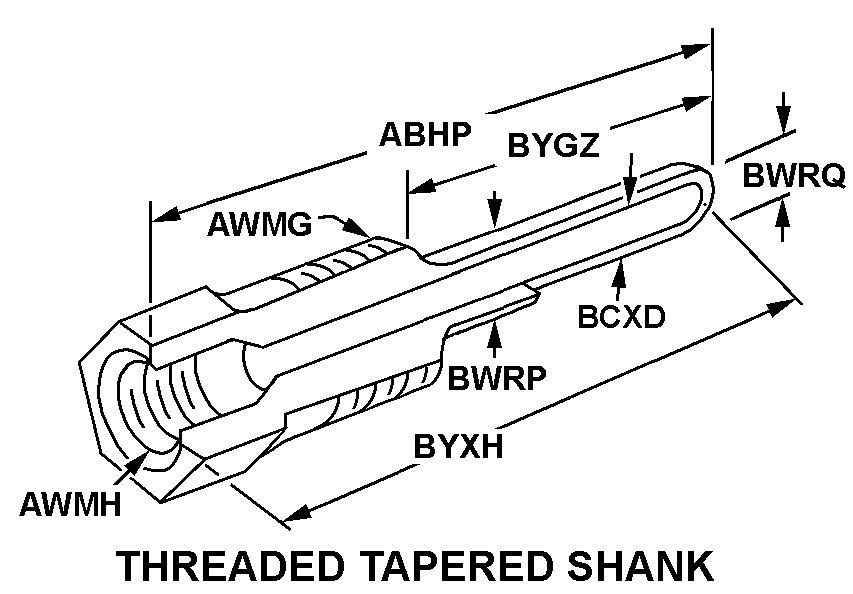

| STYLE DESIGNATOR | H THREADED TAPERED SHANK |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 3/4 IN. NPT |
| INTERNAL THREAD SIZE | 1/2IN NPSM ALL BORES |
| TAPERED BODY LARGEST DIAMETER | 0.625 INCHES NOMINAL |
| TAPERED BODY SMALLEST DIAMETER | 0.385 INCHES NOMINAL |
| BODY TAPERED LENGTH | 2.750 INCHES NOMINAL |
| BORE INSIDE DIAMETER | 0.260 INCHES NOMINAL ALL BORES |
| STRAIGHT BORE DEPTH | 3.250 INCHES NOMINAL ALL BORES |
Restrictions/Controls & Freight Information | NSN 6685-01-493-4727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6685-01-493-4727
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
