NSN 6685-01-523-2395 131804B, 1318-04-B, 22015072
Product Details | THERMOWELL
6685-01-523-2395 A pressure-tight receptacle mounted to an item by external threads, flange and/or welding. It is designed to hold temperature sensing devices, such as, termocouples, resistance temperature detectors, and thermometers.
Part Alternates: 131804B, 1318-04-B, 22015072, 22-015-072, T4C4, 6685-01-523-2395, 01-523-2395, 6685015232395, 015232395
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 25 AUG 2004 | 01-523-2395 | 40096 ( THERMOWELL ) |

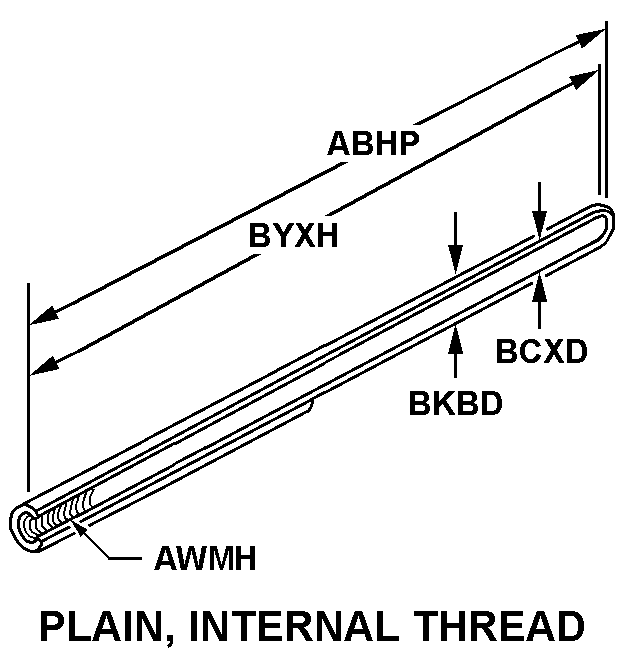

Drawings & Photos | NSN 6685-01-523-2395
Demand History | NSN 6685-01-523-2395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-523-2395 | 2016-11-313 | 26 | DIBBS |
| 6685-01-523-2395 | 2015-03-77 | 20 | DIBBS |
| 6685-01-523-2395 | 2015-03-69 | 20 | DIBBS |
| 6685-01-523-2395 | 2010-02-47 | 2 | DIBBS |
| 6685-01-523-2395 | 2009-09-244 | 3 | DIBBS |
| 6685-01-523-2395 | 2009-07-199 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-523-2395
Related Products | NSN 6685-01-523-2395
Technical Data | NSN 6685-01-523-2395
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | W PLAIN, INTERNAL THREADED |
| OVERALL LENGTH | 3.313 INCHES NOMINAL |
| INTERNAL THREAD SIZE | 3/4-28 UNS-2B 1ST BORE |
| BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| BORE INSIDE DIAMETER | 0.625 INCHES NOMINAL 1ST BORE 0.379 INCHES NOMINAL 2ND BORE |
| STRAIGHT BORE DEPTH | 1.032 INCHES NOMINAL 1ST BORE 2.015 INCHES MINIMUM AND 2.031 INCHES MAXIMUM 2ND BORE |
| SPECIAL FEATURES | 0.438 FULL THREAD 1ST BORE |
| III END ITEM IDENTIFICATION | CONDENSING UNIT REFRIG 1300-00-B R-134A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (DRAWING)THERMOWELL,MIL-T-24270/1 B(318-04-B) |
