NSN 6695-00-320-8312 10859, 108-59, 3750008
Product Details | SYMBOL INDICATING INDICATOR
6695-00-320-8312 An electrically operated indicator, consisting principally of a cylindrical rotating card, or the like, which exhibits symbols or markings before a single window in a case. Excludes indicators having graduated scale dials. Also excludes INDICATOR, DIGITAL DISPLAY; INDICATOR, POSITION; and INDICATOR (as modified).
Part Alternates: 10859, 108-59, 3750008, 9A34, 6695-00-320-8312, 00-320-8312, 6695003208312, 003208312
Instruments and Laboratory Equipment | Combination and Miscellaneous Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 NOV 1973 | 00-320-8312 | 20814 ( INDICATOR, SYMBOL INDICATING ) |

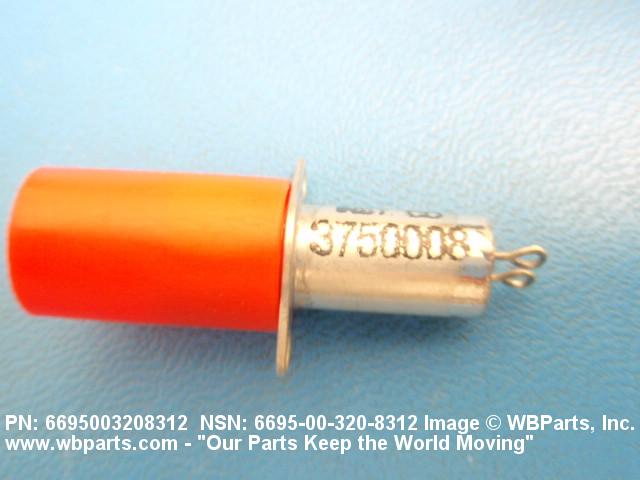

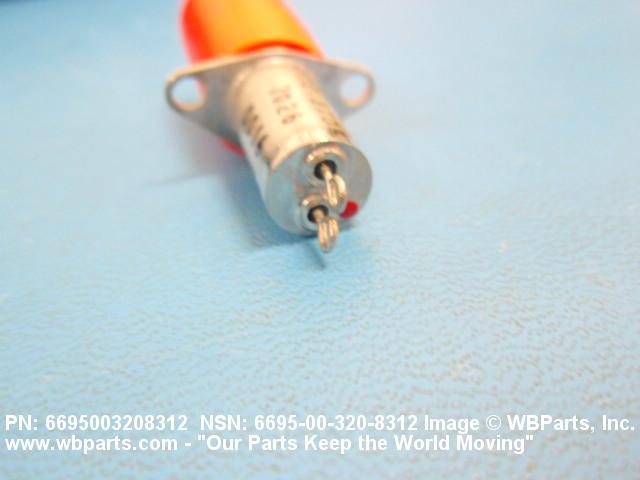

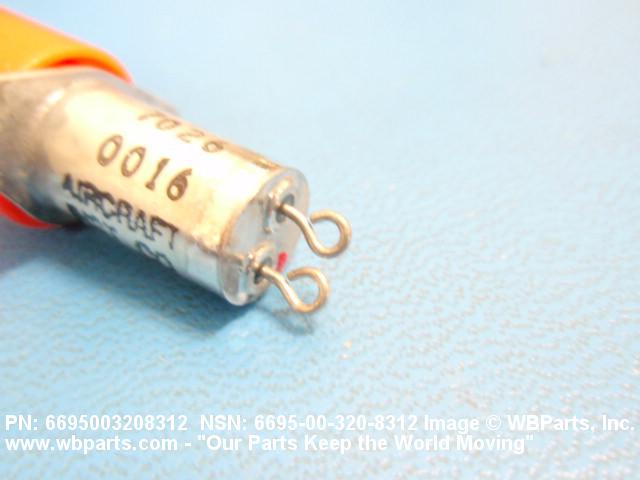

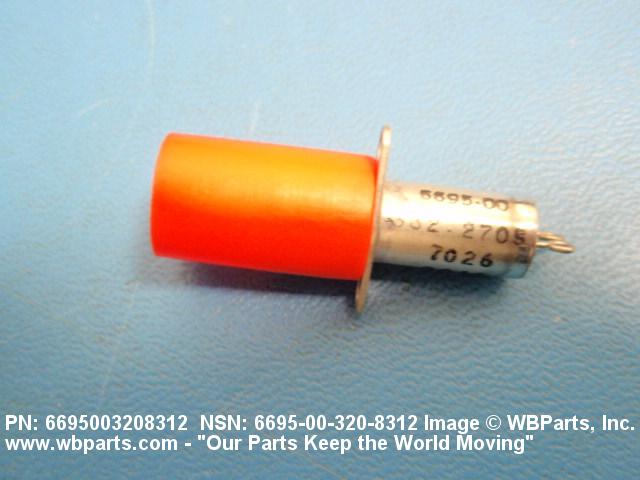

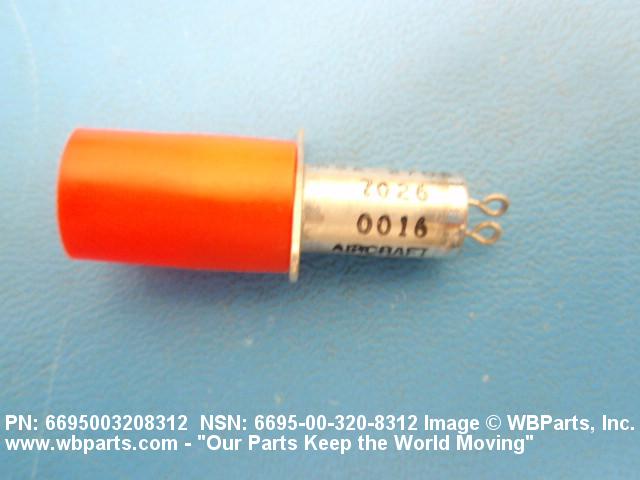

Drawings & Photos | NSN 6695-00-320-8312
Demand History | NSN 6695-00-320-8312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6695-00-320-8312 | 2010-02-40 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6695-00-320-8312
Technical Data | NSN 6695-00-320-8312
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | STEEL |
| PRESENTATION TYPE | DRUM DIAL AND WINDOW |
| MARKING COLOR SPECIFIC USE | POWER-OFF SIGNAL AND POWER-ON SIGNAL |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 22.0 VOLTS MINIMUM AND 30.0 VOLTS MAXIMUM |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | TERMINAL LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOTTED HOLE |
| MOUNTING SLOT LENGTH | 0.445 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | 1 TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.686 INCHES NOMINAL |
| LENGTH | 1.156 INCHES NOMINAL |
| DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.380 INCHES NOMINAL |
| DIAL WIDTH | 0.240 INCHES NOMINAL |
| DIAL OUTSIDE DIAMETER | 0.385 INCHES NOMINAL |
| SPECIAL FEATURES | OPERATING TIME 0.1 SECOND OR LESS;COIL RESISTANCE 750 OHMS;INDICATOR CASE TIN-PLATED FOR CORROSION RESISTANCE;OPERATINIG TEMP RANGE MINUS 55 DEG C TO 90 DEG C;MINIMUM INSULTATION RESISTANCE 20 MEG. OHMS AT 500 VOLTS DC WINDING TO CASE;HIGH POTENTIAL REQUIREMENTS-EACH UNIT CAN WITHSTAND 500 VOLTS ACAT 60 HZ P.S. FOR 15 SECONDS |
| III END ITEM IDENTIFICATION | NSNS 6680-00-593-3306 AND 6680-00-790-0082 LIQUID OXYGEN INDICATOR SETS TECH ORDER 15X4-3-1-114 |
| III SUPPLEMENTARY FEATURES | INDICATOR ENERGIZED POSITION BACKGROUND POSITION LUSTERLESS BLACK COLORNO. 37038;INDICATOR DE-ENERGIZED POSITION (OFF) CHARACTERS LUSTERLESS WHITE COLOR NO. 37875 ON RED BACKGROUND COLOR NO. 31158;WORD OFF IS 0.094 IN. HIGHNOMINAL;BACK SURFACE TO BE FREE OF PAINT |
Restrictions/Controls & Freight Information | NSN 6695-00-320-8312
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
