NSN 6730-00-982-4490 PES, 00-982-4490, 009824490
Product Details | PHOTOGRAPHIC PROJECTION VIEWER-PRINTER
6730-00-982-4490 An item designed for viewing microfilm which magnifies and presents on an integrally mounted screen a right reading image. It is equipped with a printing and developing mechanism which delivers a permanent enlarged copy of the microfilm upon activation of the reproducing mechanism.
Part Alternates: PES, 6730-00-982-4490, 00-982-4490, 6730009824490, 009824490
Photographic Equipment | Photographic Projection Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | 01 JAN 1962 | 00-982-4490 | 21930 ( VIEWER-PRINTER, PROJECTION, PHOTOGRAPHIC ) |
Drawings & Photos | NSN 6730-00-982-4490
Cross Reference | NSN 6730-00-982-4490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PES | 19139 | EASTMAN KODAK COMPANY DBA KODAK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6730-00-982-4490
Technical Data | NSN 6730-00-982-4490
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | TABLE |
| FILM ACCOMMODATION TYPE | MICROFILM |
| ACCOMMODATED FILM WIDTH | 16.0 MILLIMETERS NOMINAL |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 117.0 |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| OVERALL LENGTH | 28.500 INCHES NOMINAL |
| OVERALL HEIGHT | 31.000 INCHES NOMINAL |
| OVERALL WIDTH | 16.000 INCHES NOMINAL |
| LAMP TYPE | INCANDESCENT |
| LAMP QUANTITY | 1 |

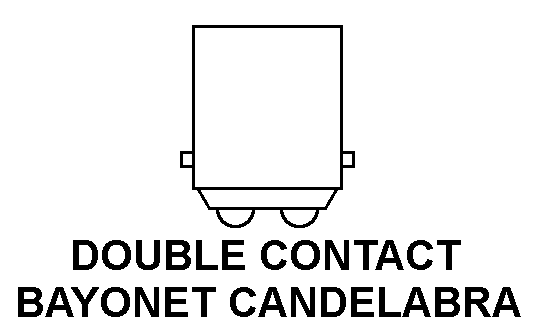

| LAMP BASE STYLE | A9 DOUBLE CONTACT BAYONET CANDELABRA |

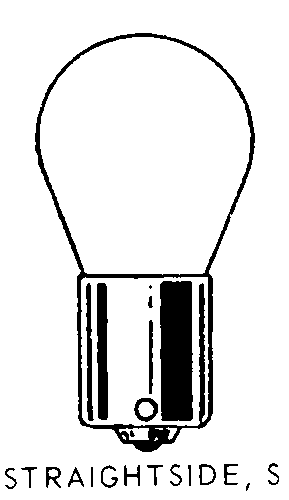

| LAMP BULB SHAPE STYLE | B16 STRAIGHTSIDE, S |
| LAMP BULB SIZE DESIGNATOR | G-16-1/2 |
| LAMP | INCLUDED |
| LAMP WATTAGE RATING IN WATTS | 100.0 |
| DESIGN CURRENT RATING IN AMPS | 0.850 NOMINAL |
| CIRCUIT VOLTAGE RATING IN VOLTS | 32.0 NOMINAL |
| PRINT SIZE | 8-1/2 IN. BY 11 IN. |
| PRINTING PROCESS FOR WHICH DESIGNED | PHOTOGRAPHIC W/SINGLE SOLUTION DEVELOPER |
| FURNISHED ITEMS AND QUANTITY | LAMP GE SPECIAL 124 |
| SPECIAL FEATURES | DOUBLE CONTACT BAYONET LAMP BASE |
| MANUFACTURERS CODE | 19139 |
| DESIGN CONTROL REFERENCE | PES |
Restrictions/Controls & Freight Information | NSN 6730-00-982-4490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 039740 | PHOTOGRAPHERS MATERIALS NOI |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 756 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | P | Photographic supplies and equipment, including training films. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
