NSN 6730-01-020-5013 MPG, 01-020-5013, 010205013
Product Details | PHOTOGRAPHIC PROJECTION VIEWER-PRINTER
6730-01-020-5013 An item designed for viewing microfilm which magnifies and presents on an integrally mounted screen a right reading image. It is equipped with a printing and developing mechanism which delivers a permanent enlarged copy of the microfilm upon activation of the reproducing mechanism.
Part Alternates: MPG, 6730-01-020-5013, 01-020-5013, 6730010205013, 010205013
Photographic Equipment | Photographic Projection Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | 30 APR 1976 | 01-020-5013 | 21930 ( VIEWER-PRINTER, PROJECTION, PHOTOGRAPHIC ) |
Drawings & Photos | NSN 6730-01-020-5013
Cross Reference | NSN 6730-01-020-5013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MPG | 19139 | EASTMAN KODAK COMPANY DBA KODAK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6730-01-020-5013
Technical Data | NSN 6730-01-020-5013
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | TABLE |
| FILM ACCOMMODATION TYPE | CARD AND CUT FILM AND MICROFILM |
| ACCOMMODATED FILM WIDTH | 16.0 MILLIMETERS MINIMUM AND 35.0 MILLIMETERS MAXIMUM |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY RATING | 50.0 HERTZ MINIMUM AND 60.0 HERTZ MAXIMUM |
| PHASE | SINGLE |
| OVERALL LENGTH | 32.000 INCHES NOMINAL |
| OVERALL HEIGHT | 24.750 INCHES NOMINAL |
| OVERALL WIDTH | 22.875 INCHES NOMINAL |
| LAMP TYPE | QUARTZ |
| LAMP QUANTITY | 1 |

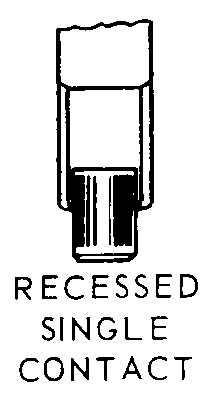

| LAMP BASE STYLE | A56 RECESSED SINGLE CONTACT |
| LAMP BULB SHAPE STYLE | B23 CYLINDRICAL, CYL |
| LAMP BULB SIZE DESIGNATOR | T-4 |
| LAMP | INCLUDED |
| LAMP WATTAGE RATING IN WATTS | 170.0 |
| DESIGN CURRENT RATING IN AMPS | 8.500 NOMINAL |
| CIRCUIT VOLTAGE RATING IN VOLTS | 20.0 NOMINAL |
| PRINTING PROCESS FOR WHICH DESIGNED | DIRECT POSITIVE DRY DEVELOPING |
| FURNISHED ITEMS AND QUANTITY | 19X LENS KIT 1 |
| MANUFACTURERS CODE | 19139 |
| DESIGN CONTROL REFERENCE | MPG |
Restrictions/Controls & Freight Information | NSN 6730-01-020-5013
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
