Product Details | BORESIGHTING TARGET
6920-00-317-2508 A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included.
Part Alternates: 8411410, 6920-00-317-2508, 00-317-2508, 6920003172508, 003172508
Training Aids and Devices | Armament Training Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 69 | 01 JAN 1963 | 00-317-2508 | 22485 ( TARGET, BORESIGHTING ) |
Drawings & Photos | NSN 6920-00-317-2508
Cross Reference | NSN 6920-00-317-2508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8411410 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6920-00-317-2508
Technical Data | NSN 6920-00-317-2508
| Characteristic | Specifications |
|---|---|

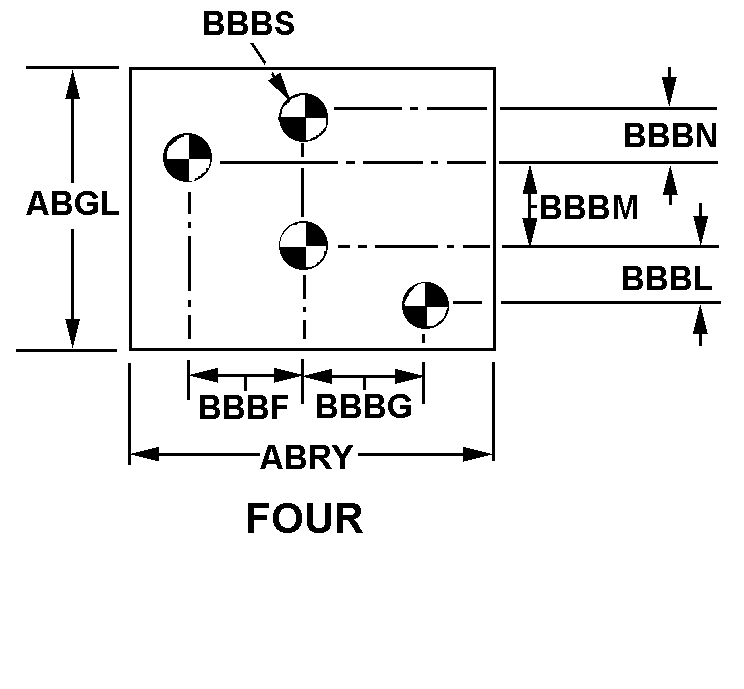

| STYLE DESIGNATOR | B5 FOUR |
| WIDTH | 64.000 INCHES NOMINAL |
| LENGTH | 32.000 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 27.094 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | 24.625 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | 6.688 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | 11.219 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN THIRD AND FOURTH QUARTERED CIRCLE CENTERS | 5.156 INCHES NOMINAL |
| LARGEST QUARTERED CIRCLE RADIUS | 3.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6920-00-317-2508
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 718 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | FF | |
| Type of Cargo | Z | No special type of cargo code applicable |
