NSN 6920-01-495-7183 16103728021, 16103728-021, 01-495-7183
Product Details | BORESIGHTING TARGET
6920-01-495-7183 A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included.
Part Alternates: 16103728021, 16103728-021, 6920-01-495-7183, 01-495-7183, 6920014957183, 014957183
Training Aids and Devices | Armament Training Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 69 | 22 MAR 2002 | 01-495-7183 | 22485 ( TARGET, BORESIGHTING ) |
Drawings & Photos | NSN 6920-01-495-7183
Cross Reference | NSN 6920-01-495-7183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16103728-021 | 13160 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA WOODBRIDGE TECHNICAL CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6920-01-495-7183
Technical Data | NSN 6920-01-495-7183
| Characteristic | Specifications |
|---|---|

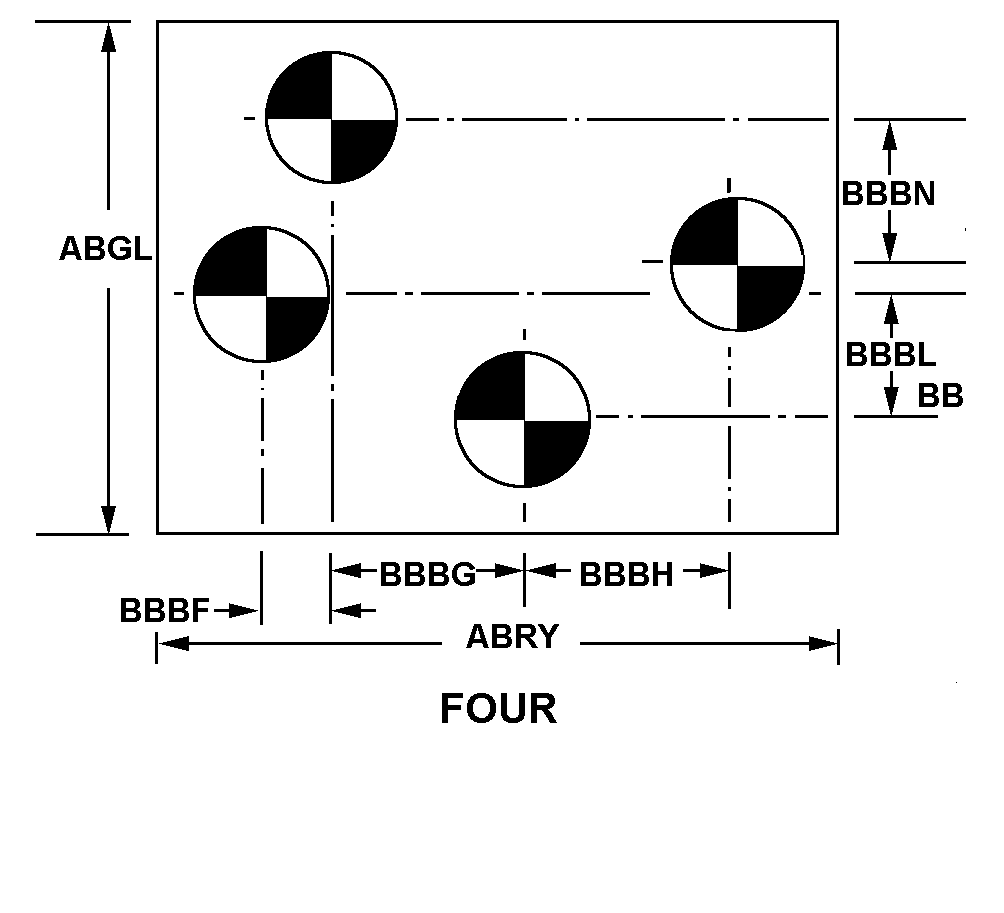

| STYLE DESIGNATOR | B7 FOUR |
| WIDTH | 22.500 INCHES NOMINAL |
| LENGTH | 39.000 INCHES NOMINAL |
| HORIZONTAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| HORIZONTAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| HORIZONTAL DISTANCE BETWEEN THIRD AND FOURTH QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| VERTICAL DISTANCE BETWEEN FIRST AND SECOND QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| VERTICAL DISTANCE BETWEEN SECOND AND THIRD QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| VERTICAL DISTANCE BETWEEN THIRD AND FOURTH QUARTERED CIRCLE CENTERS | ANY ACCEPTABLE |
| SPECIAL FEATURES | TARGET PANEL ASSEMBLY; ALUMINUM ALLOY, .75 INCH THICK |
Restrictions/Controls & Freight Information | NSN 6920-01-495-7183
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
