NSN 8115-00-050-4682 ASTMD5168, ASTM-D5168, PPPB640
Product Details | SHIPPING BOX
8115-00-050-4682 A general-purpose box which may be reusable and designed specifically for the shipment of goods. It may have facilities for handling by hoist, forklift truck, or by skidding. It may also have provisions for humidity control. For containers designed for specific items, see SHIPPING AND STORAGE CONTAINER (as modified). Excludes BOX (1), INTERMEDIATE PACKAGING; and CRATE, SHIPPING.
Part Alternates: ASTMD5168, ASTM-D5168, PPPB640, PPP-B-640, PPP-B-640 CL2STG, PPPB640CL2STG, 8115-00-050-4682, 00-050-4682, 8115000504682, 000504682
Containers, Packaging, and Packing Supplies | Boxes, Cartons, and Crates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 17 NOV 1972 | 00-050-4682 | 30092 ( BOX, SHIPPING ) |
Drawings & Photos | NSN 8115-00-050-4682
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8115-00-050-4682
Technical Data | NSN 8115-00-050-4682
| Characteristic | Specifications |
|---|---|

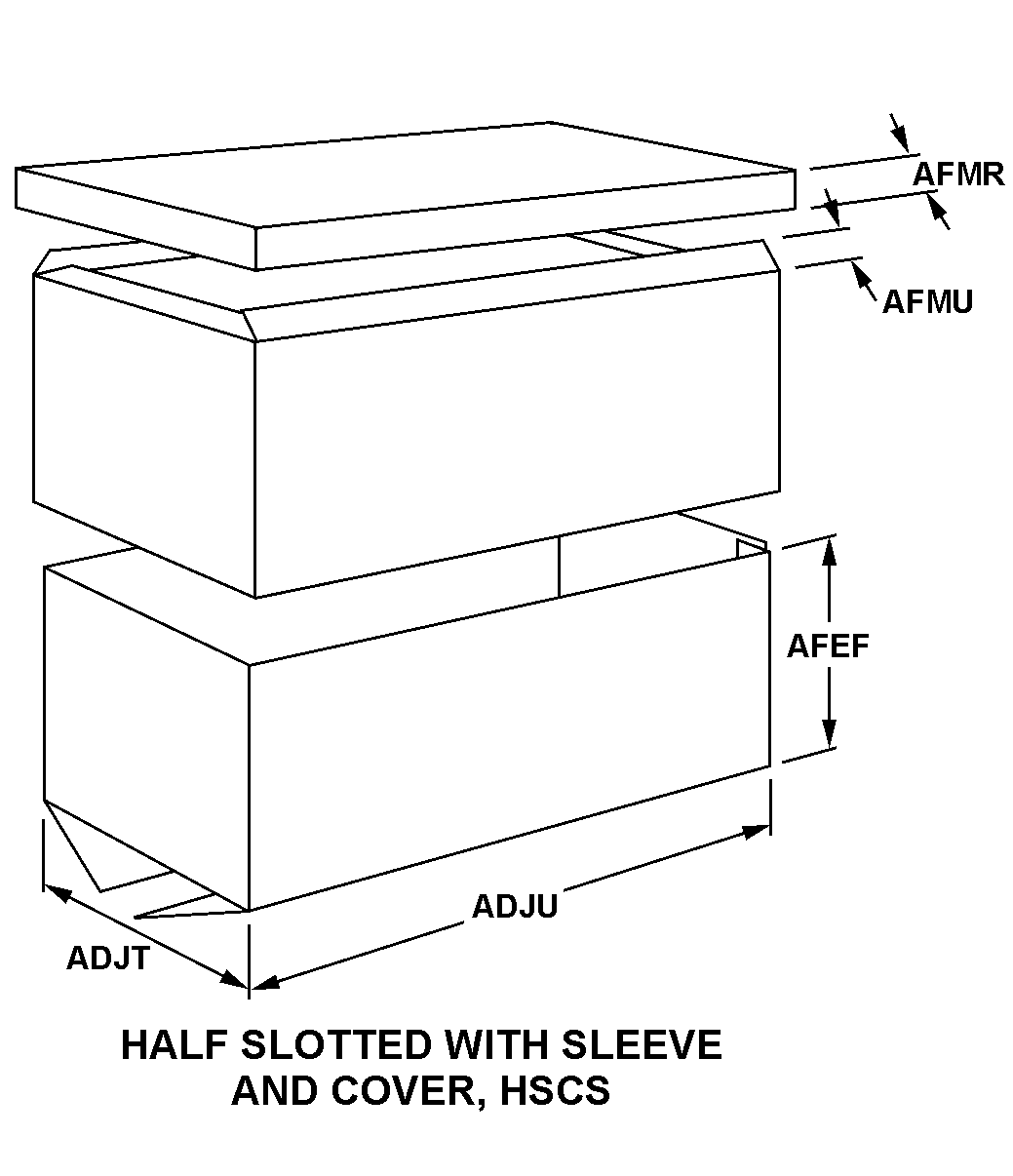

| STYLE DESIGNATOR | C8 HALF SLOTTED WITH SLEEVE AND COVER, HSCS |
| INSIDE LENGTH | 78.000 INCHES NOMINAL |
| INSIDE WIDTH | 48.750 INCHES NOMINAL |
| INSIDE DEPTH | 24.000 INCHES NOMINAL |
| COVER DEPTH | 6.000 INCHES NOMINAL |
| INNER FLAP LENGTH | 8.000 INCHES NOMINAL |
| MATERIAL | FIBERBOARD, PPP-F-320, TYPE CF, CLASS WEATHER RESISTANT, VARIETY TW, GRADE 1100 |
| ASSEMBLY FORM | FOLDED |
| ASSEMBLY METHOD | STAPLED |
| CLOSURE METHOD | DETACHABLE COVER |
| HUMIDITY CONTROL DESIGN FEATURE | NO |
| CONTAINER LOAD HAZARD DESIGNATION | NOT RATED |
| STACKING FEATURE | NO |
| USAGE DESIGN | WEATHER RESISTANT |
| FURNISHED ITEMS | SLEEVE |
| BOX MANUFACTURER CERTIFICATE | NOT REQUIRED |
| SPECIAL FEATURES | SLEEVE INSIDE DEPTH 43 IN. SLEEVE TO FIT ON OUTSIDE OF BOX |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY STYLE! INSIDE WIDTH,INSIDE LENGTH,INSIDE DEPTH,COVER DEPTH,INNER FLAP LENGTH! FURNISHED ITEMS |
Restrictions/Controls & Freight Information | NSN 8115-00-050-4682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
