NSN 8115-00-135-2424 ASTM D 6251, ASTMD6251, PPPB601
Product Details | SHIPPING BOX
8115-00-135-2424 A general-purpose box which may be reusable and designed specifically for the shipment of goods. It may have facilities for handling by hoist, forklift truck, or by skidding. It may also have provisions for humidity control. For containers designed for specific items, see SHIPPING AND STORAGE CONTAINER (as modified). Excludes BOX (1), INTERMEDIATE PACKAGING; and CRATE, SHIPPING.
Part Alternates: ASTM D 6251, ASTMD6251, PPPB601, PPP-B-601, 8115-00-135-2424, 00-135-2424, 8115001352424, 001352424
Containers, Packaging, and Packing Supplies | Boxes, Cartons, and Crates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 12 SEP 1973 | 00-135-2424 | 30092 ( BOX, SHIPPING ) |
Drawings & Photos | NSN 8115-00-135-2424
Demand History | NSN 8115-00-135-2424
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8115-00-135-2424 | 2014-10-275 | 1 | US |
| 8115-00-135-2424 | 2013-07-182 | 5 | UK |
| PPPB601 | 2010-08-224 | 1 | BR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8115-00-135-2424
Technical Data | NSN 8115-00-135-2424
| Characteristic | Specifications |
|---|---|

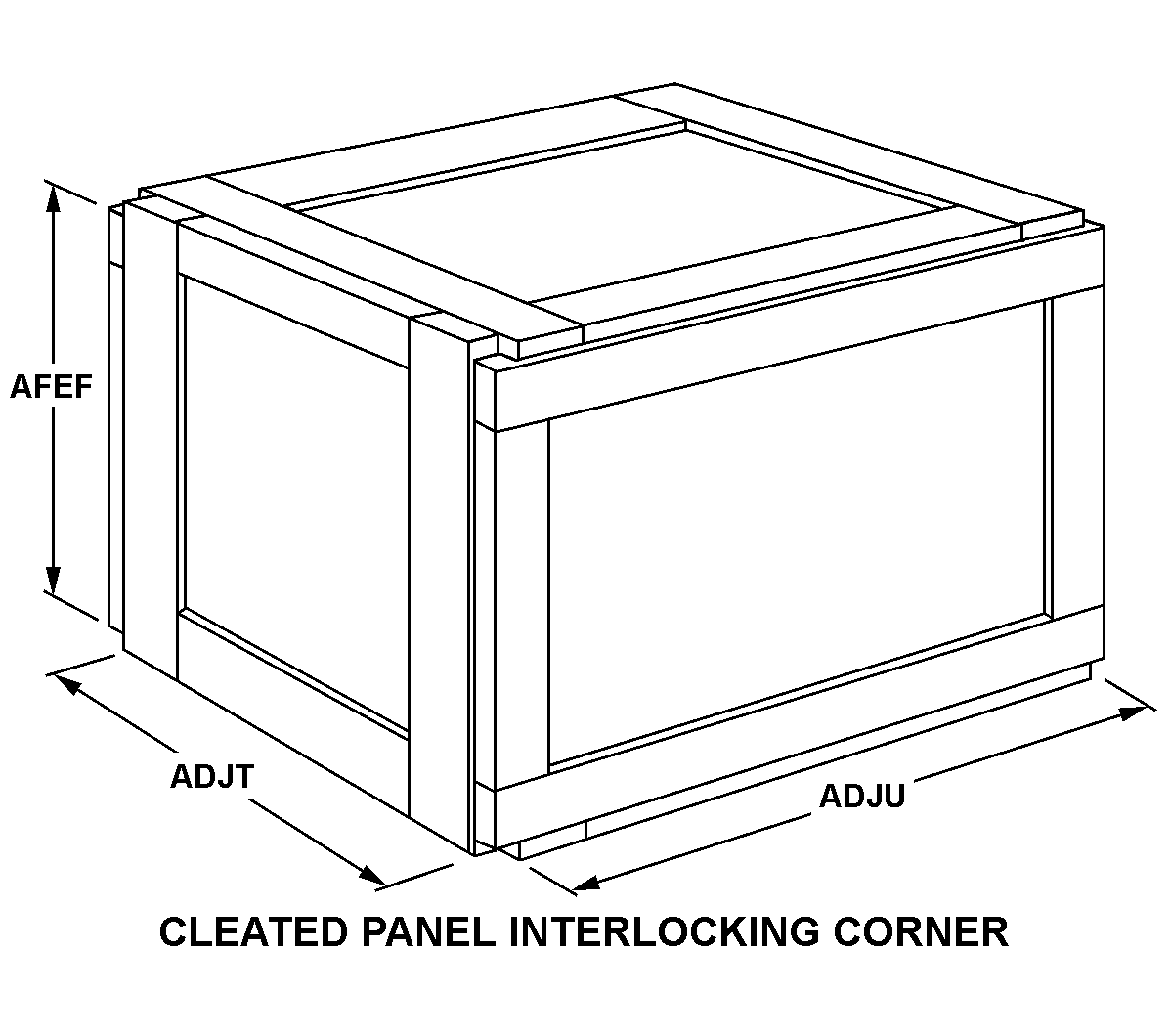

| STYLE DESIGNATOR | C31 CLEATED PANEL INTERLOCKING CORNER |
| INSIDE LENGTH | 28.000 INCHES NOMINAL |
| INSIDE WIDTH | 17.000 INCHES NOMINAL |
| INSIDE DEPTH | 17.000 INCHES NOMINAL |
| MATERIAL | PLYWOOD |
| EXTERIOR COLOR | NATURAL |
| INTERIOR COLOR | NATURAL |
| ASSEMBLY FORM | KNOCKED-DOWN |
| ASSEMBLY METHOD | NAILED |
| CLOSURE METHOD | DETACHABLE COVER |
| CLOSURE FASTENING TYPE | NAILS |
| REINFORCEMENT METHOD | WOOD CLEATS |
| HUMIDITY CONTROL DESIGN FEATURE | NO |
| CUBIC CAPACITY | 4.7 CUBIC FEET |
| CONTAINER LOAD HAZARD DESIGNATION | TYPE III |
| MAXIMUM WEIGHT CAPACITY | 400.00 POUNDS |
| STACKING FEATURE | NO |
| USAGE DESIGN | DOMESTIC |
| BOX MANUFACTURER CERTIFICATE | NOT REQUIRED |
| SPECIAL FEATURES | TOP PANEL 0.500 IN. PLYWOOD W/O CLEATS AND FLUSH WITH OUTSIDE EDGES OF SIDE AND END PANELS,0.375 IN. THK PLYWOOD ON REMAINING PANELS |
| NONDEFINITIVE SPEC/STD DATA | DOMESTIC TYPE AND B STYLE AND B GRADE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
Restrictions/Controls & Freight Information | NSN 8115-00-135-2424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 029280 | BOXE FIBREBOARD O/T CORRUGATED SUB4 |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 763 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
