NSN 8115-00-188-8140 PPPB636, PPP-B-636, 00-188-8140
Product Details | INTERMEDIATE PACKAGING BOX
8115-00-188-8140 A box usually in flat or folded form which has been cut and scored for forming into a box or it may be already set up for use. It is primarily used as an inner container, one or more, which may be packed in a shipping box. Excludes BOX (1), SHIPPING. See also BOX (3), SMALL PARTS.
Part Alternates: PPPB636, PPP-B-636, 8115-00-188-8140, 00-188-8140, 8115001888140, 001888140
Containers, Packaging, and Packing Supplies | Boxes, Cartons, and Crates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 01 MAR 1971 | 00-188-8140 | 30091 ( BOX, INTERMEDIATE PACKAGING ) |

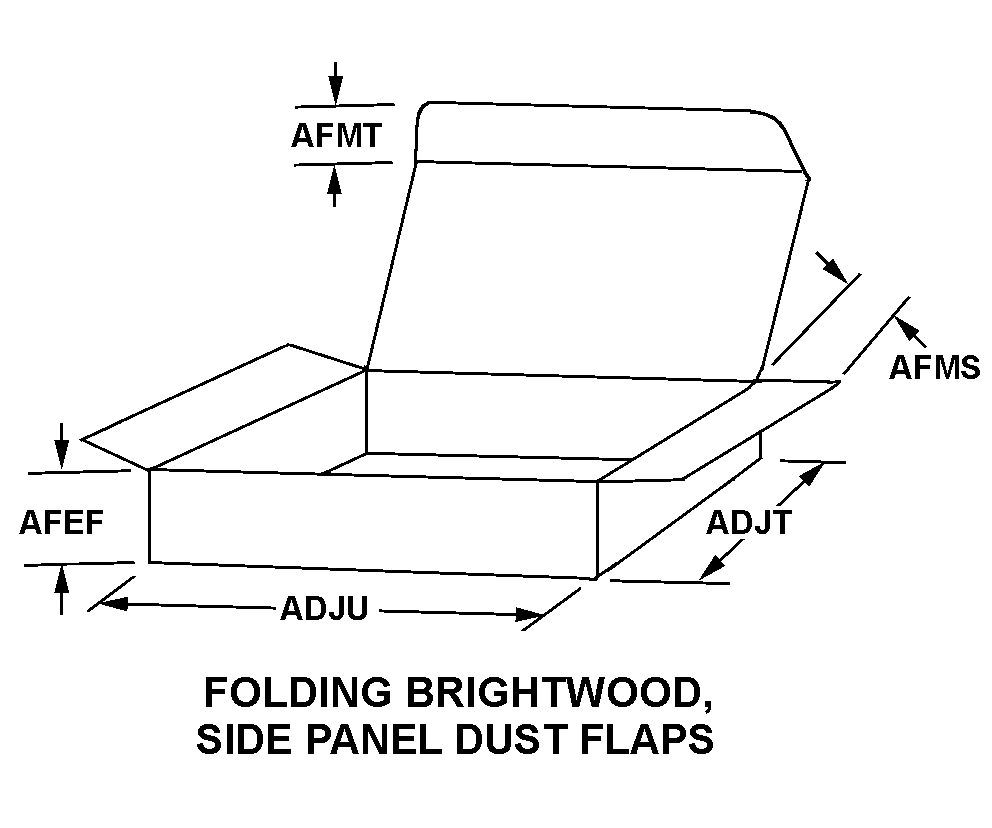

Drawings & Photos | NSN 8115-00-188-8140
Demand History | NSN 8115-00-188-8140
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PPPB636 | 2021-12-355 | 4 | US |
| PPPB636 | 2021-11-320 | 4 | US |
Cross Reference | NSN 8115-00-188-8140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PPP-B-636 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8115-00-188-8140
Technical Data | NSN 8115-00-188-8140
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B4 FOLDING BRIGHTWOOD, COVER DUST FLAPS |
| INSIDE LENGTH | 11.500 INCHES NOMINAL |
| INSIDE WIDTH | 11.500 INCHES NOMINAL |
| INSIDE DEPTH | 1.500 INCHES NOMINAL |
| DUST FLAP LENGTH | 2.000 INCHES NOMINAL |
| TUCK LENGTH | 1.500 INCHES NOMINAL |
| MATERIAL | FIBERBOARD, PPP-F-320, TYPE CF, CLASS DOMESTIC, VARIETY SW, GRADE 125 |
| MATERIAL BURSTING STRENGTH | 125.0 POUNDS PER SQUARE INCH |
| EXTERIOR COLOR | NATURAL |
| INTERIOR COLOR | NATURAL |
| ASSEMBLY FORM | FLAT |
| CLOSURE METHOD | FLAPS |
| NONDEFINITIVE SPEC/STD DATA | CF TYPE AND FOLDINGBRIGHTWOOD COVER DUST FLAPS STYLE AND 125 GRADE AND DOMESTIC CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | PPP-B-636 |
Restrictions/Controls & Freight Information | NSN 8115-00-188-8140
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
