NSN 8115-00-409-0300 BOX SET, BOXSET, UUB664
Product Details | BOX SET
8115-00-409-0300 An item consisting of two or more boxes of the same basic shape and material. The boxes are usually of graduated sizes which enables them to be nested.
Part Alternates: BOX SET, BOXSET, UUB664, UU-B-664, 8115-00-409-0300, 00-409-0300, 8115004090300, 004090300
Containers, Packaging, and Packing Supplies | Boxes, Cartons, and Crates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 01 JAN 1963 | 00-409-0300 | 30094 ( BOX SET ) |
Drawings & Photos | NSN 8115-00-409-0300
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8115-00-409-0300
Technical Data | NSN 8115-00-409-0300
| Characteristic | Specifications |
|---|---|

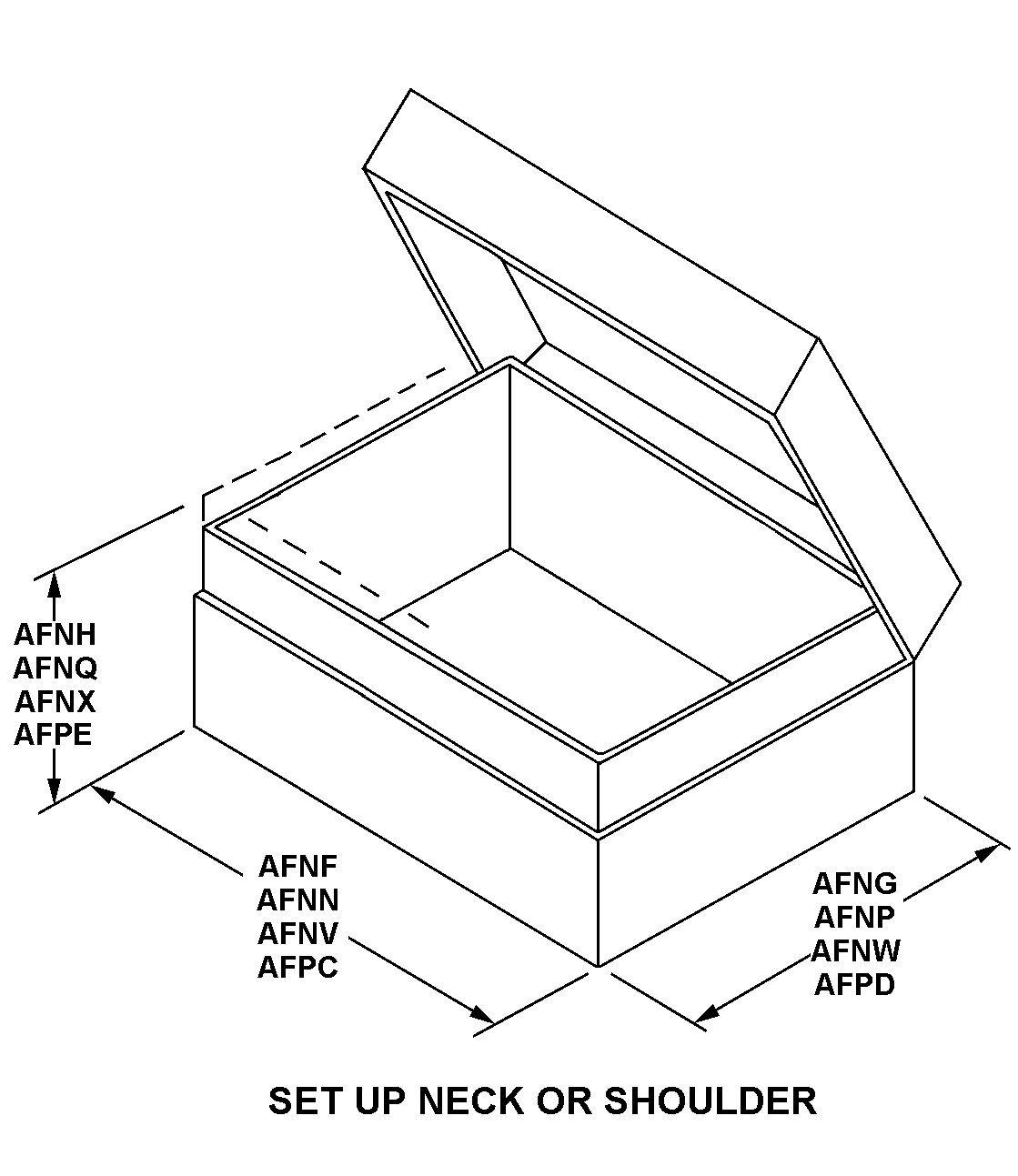

| STYLE DESIGNATOR | G1 SET UP NECK OR SHOULDER |
| FIRST BOX OVERALL LENGTH | 3.188 INCHES NOMINAL |
| FIRST BOX OVERALL WIDTH | 2.188 INCHES NOMINAL |
| FIRST BOX OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| SECOND BOX OVERALL LENGTH | 2.875 INCHES NOMINAL |
| SECOND BOX OVERALL WIDTH | 1.875 INCHES NOMINAL |
| SECOND BOX OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| THIRD BOX OVERALL LENGTH | 2.625 INCHES NOMINAL |
| THIRD BOX OVERALL WIDTH | 1.625 INCHES NOMINAL |
| THIRD BOX OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| MATERIAL | PAPERBOARD |
| MATERIAL BURSTING STRENGTH | 60.0 POUNDS PER SQUARE INCH |
| EXTERIOR COVERING MATERIAL | PAPER, GLAZED |
| EXTERIOR COLOR | WHITE |
| INTERIOR COLOR | WHITE |
| ASSEMBLY FORM | NESTED |
| ASSEMBLY METHOD | GLUED |
| CLOSURE METHOD | HINGED COVER |
| MATCHED ITEMS QUANTITY PER SET | 3 |
Restrictions/Controls & Freight Information | NSN 8115-00-409-0300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 8115-00-409-0300
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
