NSN 8115-00-663-0212 C4146G, C4746G, C4746-G
Product Details | SMALL PARTS BOX
8115-00-663-0212 A box usually rectangular in shape and having a cover. It may be compartmental and is designed specifically for the protection and/or local storage of small items. Do not use if a more specific name applies. See also BOX (3), TOTE.
Part Alternates: C4146G, C4746G, C4746-G , SERIES46TYPE4, D7359771, 4046G, 46, 8115-00-663-0212, 00-663-0212, 8115006630212, 006630212
Containers, Packaging, and Packing Supplies | Boxes, Cartons, and Crates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 01 JAN 1963 | 00-663-0212 | 30093 ( BOX, SMALL PARTS ) |
Drawings & Photos | NSN 8115-00-663-0212
Demand History | NSN 8115-00-663-0212
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8115-00-663-0212 | 2024-04-115 | 57 | United States |
| 8115-00-663-0212 | 2020-01-31 | 1 | United States |
| 8115-00-663-0212 | 2019-11-322 | 1 | United States |
| 8115-00-663-0212 | 2019-11-322 | 2 | United States |
| 8115-00-663-0212 | 2019-11-322 | 4 | United States |
| 8115-00-663-0212 | 2019-11-322 | 10 | United States |
| 8115-00-663-0212 | 2018-07-200 | 5 | United States |
| 8115-00-663-0212 | 2013-05-123 | 1 | United States |
| 8115-00-663-0212 | 2013-04-109 | 1 | US |
| 8115-00-663-0212 | 2012-07-193 | 9 | United States |
Cross Reference | NSN 8115-00-663-0212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4046G | 74274 | R PM INDUSTRIES INC |
| 46 | 4DRU2 | DE WITT PLASTICS INC. |
| 46 | 97779 | RPM INDUSTRIES INC DEWITT PLASTICS DIV |
| C4146G | 4DRU2 | DE WITT PLASTICS INC. |
| D7359771 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| SERIES46TYPE4 | 4DRU2 | DE WITT PLASTICS INC. |
| SERIES46TYPE4 | 74274 | R PM INDUSTRIES INC |
| SERIES46TYPE4 | 97779 | RPM INDUSTRIES INC DEWITT PLASTICS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8115-00-663-0212
Related Products | NSN 8115-00-663-0212
Technical Data | NSN 8115-00-663-0212
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D1 SMOOTH CONTOUR |

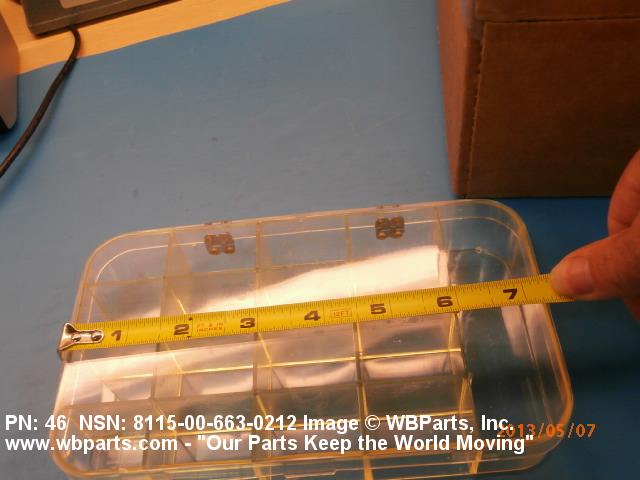

| INSIDE LENGTH | 6.875 INCHES MINIMUM |
| INSIDE WIDTH | 3.937 INCHES MINIMUM |

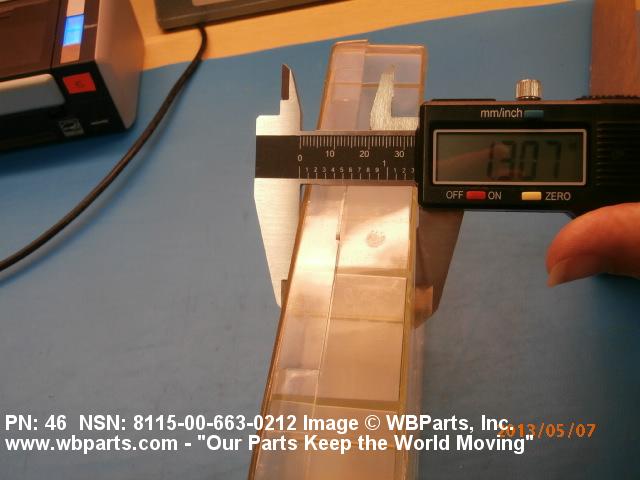

| INSIDE DEPTH | 1.062 INCHES MINIMUM |
| MATERIAL | CELLULOSE ACETATE BUTYRATE |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| INTERIOR COLOR | ANY ACCEPTABLE |
| ASSEMBLY FORM | SET-UP |
| CLOSURE METHOD | HINGED COVER |
| COMPARTMENT QUANTITY | 16 AND 1 |

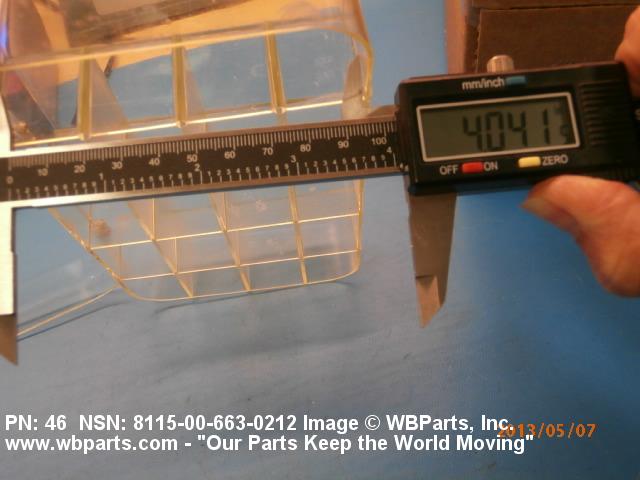

| COMPARTMENT LENGTH | 1.187 INCHES AND 4.062 INCHES |

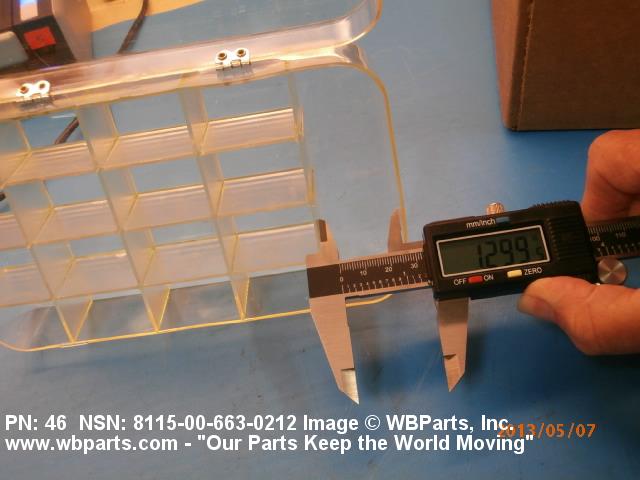

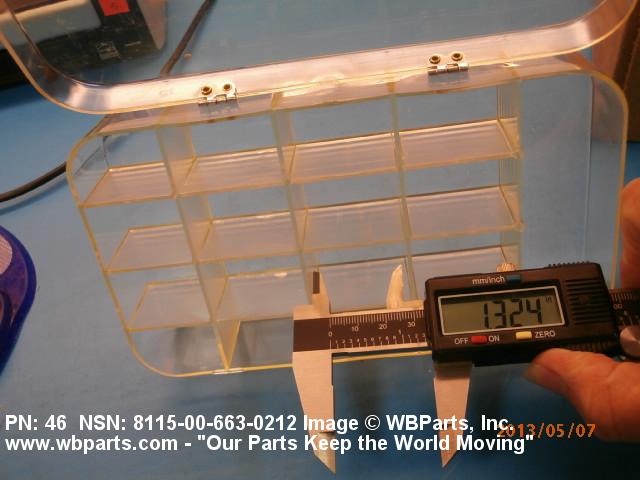

| COMPARTMENT WIDTH | 1.375 INCHES |
| STACKING FEATURE | NO |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY COMPARTMENT DATA |
| MANUFACTURERS CODE | 97779 |
| DESIGN CONTROL REFERENCE | 46 |
Restrictions/Controls & Freight Information | NSN 8115-00-663-0212
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8115-00-663-0212
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | G | GENERAL SERVICES ADMINISTRATION (GSA)/CIVIL AGENCY INTEGRATED MATERIEL MANAGED, STOCKED AND ISSUED Identifies GSA/Civil Agency-managed items available from GSA/Civil Agency supply distribution facilities. Requisitions and fund citations will be submitted in accordance with GSA/Civil Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
