NSN 8120-00-886-2301 MV596528MS, MV-5965-28-MS, AA59860
Product Details | GAS CYLINDER VALVE
8120-00-886-2301 A valve specifically designed for the control of compressed or liquefied gases and legibly marked with name of gas for which designed. Inlet connection threads are coated with lead and/or tin to form a tight seal. A cap or plug is usually supplied to protect outlet connection threads and prevent leakage.
Part Alternates: MV596528MS, MV-5965-28-MS, AA59860, A-A-59860 , MIL-V-2/46, MIL-V-2/46-23-59, MILV246, MILV2462359, TV596528MS, TV-5965-28-MS, 1100G70AW2D3, 1100-G70AW-2D3, 1200G70AW2D3, 1200-G70AW-2D3, 1250046027, 125-0046-027, 2559MSH12A3000FB, 2559MSH-12A-3000FB, 8120-00-886-2301, 00-886-2301, 8120008862301, 008862301
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 04 DEC 1967 | 00-886-2301 | 07848 ( VALVE, CYLINDER, GAS ) |
Drawings & Photos | NSN 8120-00-886-2301
Cross Reference | NSN 8120-00-886-2301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1100-G70AW-2D3 | 58553 | SUPERIOR VALVE CO |
| 1200-G70AW-2D3 | 58553 | SUPERIOR VALVE CO |
| 125-0046-027 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 2559MSH-12A-3000FB | 31879 | THERMO VALVES CORP |
| A-A-59860 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MIL-V-2/46 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-V-2/46-23-59 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MV-5965-28-MS | 70292 | HARSCO CORP SHERWOOD DIV |
| TV-5965-28-MS | 70292 | HARSCO CORP SHERWOOD DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8120-00-886-2301
Related Products | NSN 8120-00-886-2301
Technical Data | NSN 8120-00-886-2301
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A7 ANGLE |
| BODY MATERIAL | BRASS, QQ-B-626, COMP 21 |
| SEAT MATERIAL | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |
| FIRST END STYLE DESIGNATOR | G7 FLARE |
| FIRST END THREAD PITCH DIAMETERS | 0.9186 TO 0.9222 INCHES |
| FIRST END THREAD DIRECTION | LEFT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |

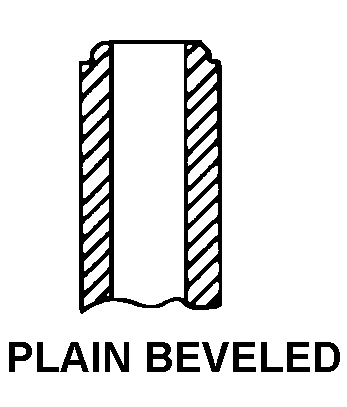

| SECOND END STYLE DESIGNATOR | K6 PLAIN BEVELED |
| SECOND END THREAD PITCH DIAMETERS | 0.9677 TO 1.0157 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| VALVE OPERATION METHOD | WHEEL |
| MAXIMUM OPERATING PRESSURE | 2265.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | SULPHUR HEXAFLUORIDE |
| TEMP RATING | 70.0 DEG FAHRENHEIT |
| SPECIAL MARKINGS | SULPHUR HEXAFLUORIDE MED |
| FURNISHED ITEMS | CHAIN AND PLUG |
| NONDEFINITIVE SPEC/STD DATA | V46-591-2 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-V-2/46-23-59 |
Restrictions/Controls & Freight Information | NSN 8120-00-886-2301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 039300 | CABINET COMPRESSED GAS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8120-00-886-2301
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 BX : Box |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 BX : Box |
