NSN 8120-01-348-2182 128SFL6010213, 128SFL60102-13, 01-348-2182
Product Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER
8120-01-348-2182 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.20416600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment42200038Marine Lifesaving and Diving Equipment42400027Safety and Rescue Equipment81200039Commercial and Industrial Gas Cylinders
Part Alternates: 128SFL6010213, 128SFL60102-13, 8120-01-348-2182, 01-348-2182, 8120013482182, 013482182
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 06 NOV 1991 | 01-348-2182 | 21309 ( ADAPTER, COMPRESSED GAS CYLINDER VALVE CONNECTIONS ) |
Drawings & Photos | NSN 8120-01-348-2182
Cross Reference | NSN 8120-01-348-2182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128SFL60102-13 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8120-01-348-2182
Technical Data | NSN 8120-01-348-2182
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| SPECIFIC GAS FOR WHICH DESIGNED | BROMOTRIFLUOROMETHANE |
| FIRST END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |
| FIRST END STYLE DESIGNATOR | 4 PLAIN |
| FIRST END THREAD SIZE | 1.035-14 |
| FIRST END THREAD SERIES/TYPE DESIGNATOR | NGO |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |

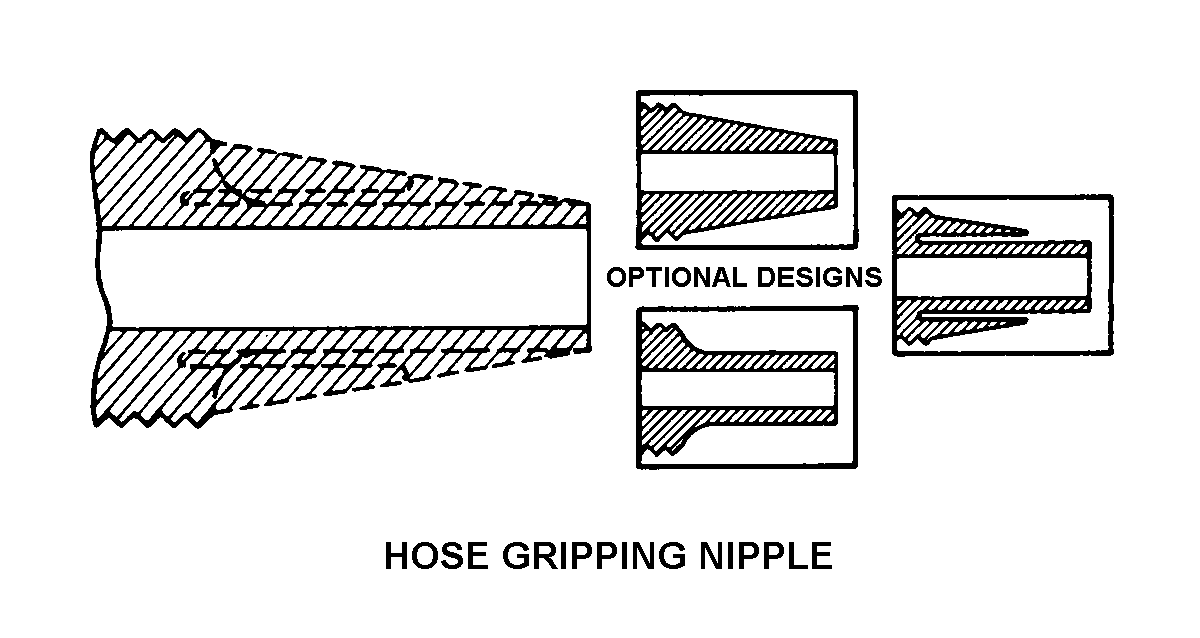

| SECOND END STYLE DESIGNATOR | 40 HOSE GRIPPING NIPPLE |
| SECOND END THREAD SIZE | 0.625-18 |
| SECOND END THREAD SERIES/TYPE DESIGNATOR | UNF |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END REDUCED PASSAGE INSIDE DIAMETER | 0.281 INCHES NOMINAL |
| UNION END | NOT INCLUDED |
| WRENCHING FACILITY | NOT INCLUDED |
| WRENCHING FACILITY SHAPE | HEXAGONAL |
| ANGLE IN DEG | 45.0 |
| OVERALL LENGTH | 0.620 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON HALON INERTING SYSTEM |
| NONDEFINITIVE SPEC/STD DATA | 660-182 NUMBER |
Restrictions/Controls & Freight Information | NSN 8120-01-348-2182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 8120-01-348-2182
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
