NSN 8140-01-059-2485 8858940, 01-059-2485, 010592485
Product Details | AMMUNITION PACKING BOX
8140-01-059-2485 An expandable special-purpose box specifically designed for packing, storage and/or shipment of ammunition and ammunition components. It is designed to accommodate a specific type and size of ammunition or component in designated quantities and includes various liners, dividers, separators, inserts, and other packing materials. May be constructed of paperboard, fiberboard, or wood and may be used as an inner container. Excludes BOX (1), AMMUNITION; CRATE, SHIPPING AND STORAGE, AMMUNITION; BOX (1), INTERMEDIATE PACKING; BOX (1), SETUP; BOX (1), SHIPPING; BOX (1), FOLDING; and SHIPPING AND STORAGE CONTAINER (as modified).
Part Alternates: 8858940, 8140-01-059-2485, 01-059-2485, 8140010592485, 010592485
Containers, Packaging, and Packing Supplies | Ammunition and Nuclear Ordnance Boxes, Packages and Special Containers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 09 APR 1978 | 01-059-2485 | 33500 ( BOX, PACKING, AMMUNITION ) |
Drawings & Photos | NSN 8140-01-059-2485
Cross Reference | NSN 8140-01-059-2485
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8858940 | 19203 | PICATINNY ARSENAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8140-01-059-2485
Technical Data | NSN 8140-01-059-2485
| Characteristic | Specifications |
|---|---|

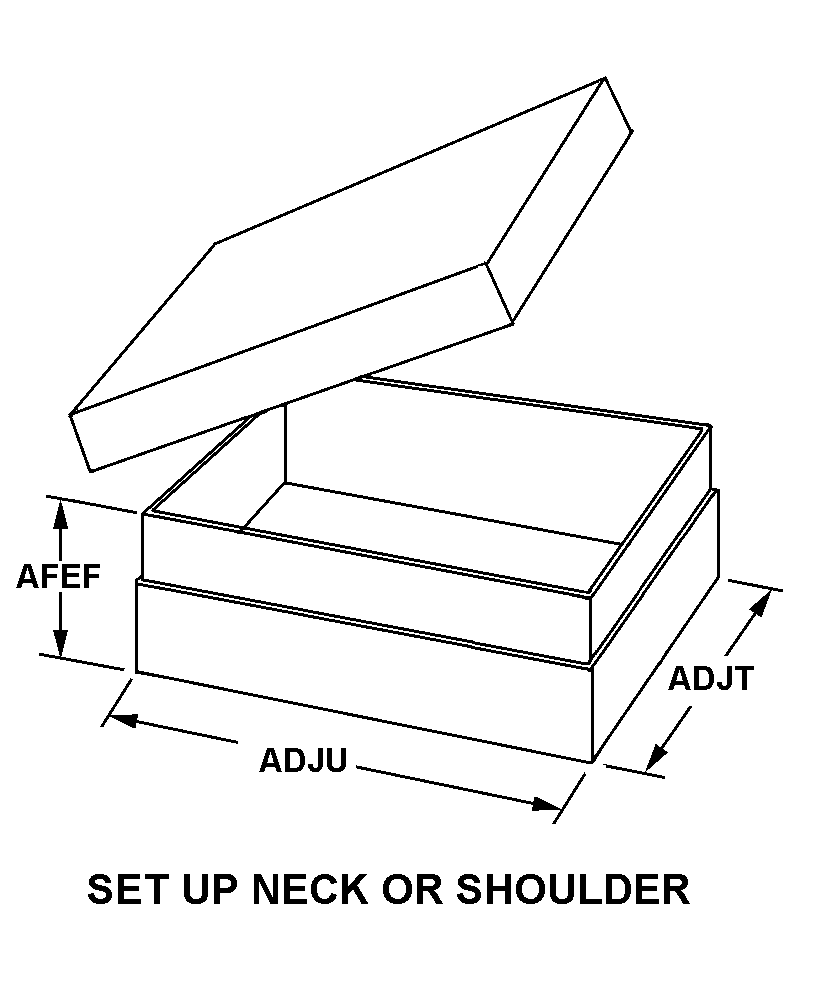

| STYLE DESIGNATOR | B9 SET UP NECK OR SHOULDER |
| INSIDE LENGTH | 6.562 INCHES NOMINAL |
| INSIDE WIDTH | 3.219 INCHES NOMINAL |
| INSIDE DEPTH | 13.469 INCHES NOMINAL |
| MATERIAL | PAPERBOARD, PPP-B-566, VARIETY 1, GROUP 1, BLEACHED MANILA LINED CHIP |
| ASSEMBLY FORM | SET-UP |
| CLOSURE METHOD | DETACHABLE COVER |
| REINFORCEMENT METHOD | TAPE, REINFORCED |
| HUMIDITY CONTROL DESIGN FEATURE | NO |
| CUBIC CAPACITY | 1.6 CUBIC FEET |
| CONTAINER LOAD HAZARD DESIGNATION | NOT RATED |
| STACKING FEATURE | NO |
| USAGE DESIGN | WEATHER RESISTANT |
| FURNISHED ITEMS | REMOVABLE DIVIDERS |
| BOX MANUFACTURER CERTIFICATE | NOT REQUIRED |
| SPECIAL MARKINGS | PRIMER,DESIGNATION AS PERTINENT/LOT NO./DATE(MONTH AND YEAR)LOADED ON LABEL |
| SPECIAL FEATURES | F/PRIMERS |
| MANUFACTURERS CODE | 19203 |
| DESIGN CONTROL REFERENCE | 8858940 |
Restrictions/Controls & Freight Information | NSN 8140-01-059-2485
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 029790 | BOXES R CHESTS TOOL/FISH TACKLE |
| Less than car load rating | K | 92.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
