NSN 8305-00-641-8561 00-641-8561, 006418561
Product Details | NONMETALLIC INSECT SCREENING
8305-00-641-8561 A fabric with a simple over-under weave forming meshes or openings similar to that of wire fabric. Excludes CLOTH, NETTING, which is woven with pattern that restrains movement of the warp and/or filling thread.
Part Alternates: 8305-00-641-8561, 00-641-8561, 8305006418561, 006418561
Textiles, Leather, Furs, Apparel and Shoe Findings, Tents and Flags | Textile Fabrics
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | 00-641-8561 | 17233 ( SCREENING, INSECT, NONMETALLIC ) |
Drawings & Photos | NSN 8305-00-641-8561
Cross Reference | NSN 8305-00-641-8561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS125 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 8305-00-641-8561
Technical Data | NSN 8305-00-641-8561
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS FIBER |
| SURFACE TREATMENT | PLASTIC, VINYL |
| OVERALL WIDTH | 36.000 INCHES MINIMUM |

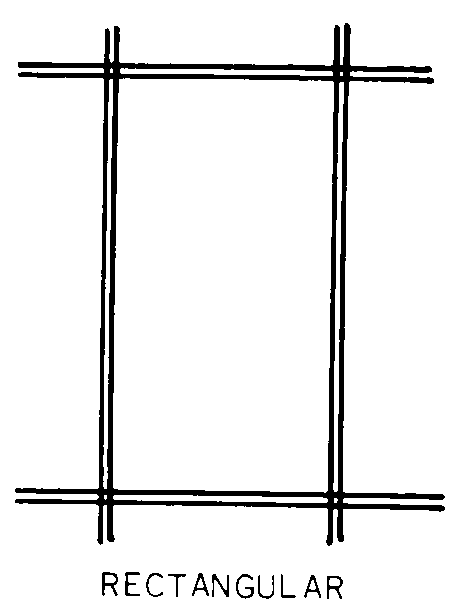

| MESH SHAPE STYLE | 2 RECTANGULAR |
| LONGITUDINAL DIRECTION MESH QUANTITY | 18 PER INCH |
| TRANSVERSE DIRECTION MESH QUANTITY | 14 PER INCH |
| FILAMENT SIZE | 0.0130 INCHES NOMINAL |
| EDGE TYPE | SELVAGED EDGE |
| EDGE LOCATION | BOTH SIDES |
| COLOR | GREEN, FED STD 595, 34079 |
| ENVIRONMENTAL PROTECTION | FIRE RESISTANT AND MILDEW RESISTANT |
| NONDEFINITIVE SPEC/STD DATA | II TYPE AND 2 CLASS AND 18X14 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MOD BY COLOR |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LS125 |
Restrictions/Controls & Freight Information | NSN 8305-00-641-8561
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
