NSN 9320-00-128-0127 ZZR765, ZZ-R-765, 00-128-0127
Product Details | SOLID RUBBER SHEET
9320-00-128-0127 An elastic material of compact structure usually having a smooth surface. It may or may not have a nonrubber backing or a metallic cloth insertion. It is produced in various thicknesses. Sheets are limited to widths greater than 6 inches (152.4 mm). For rubber sheets with one or more nonmetallic cloth inserts, see RUBBER SHEET, SOLID, CLOTH INSERT. For items that are basically cloth, coated on one or both sides, see CLOTH, COATED; and CLOTH, LAMINATED. Excludes RUBBER SHEET, INNER TUBE REPAIR.
Part Alternates: ZZR765, ZZ-R-765, 9320-00-128-0127, 00-128-0127, 9320001280127, 001280127
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 12 JAN 1973 | 00-128-0127 | 11335 ( RUBBER SHEET, SOLID ) |

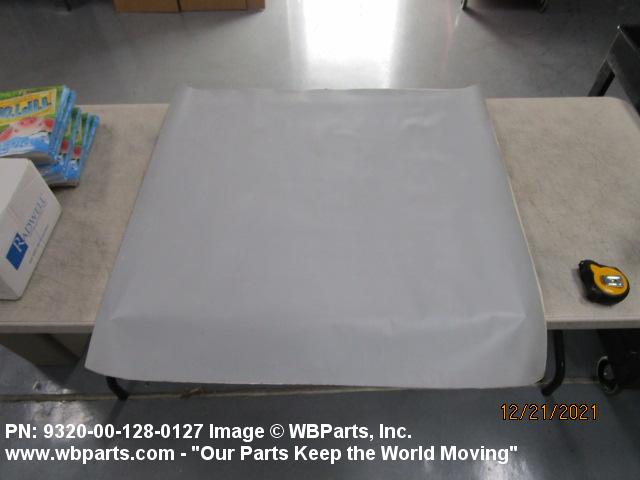

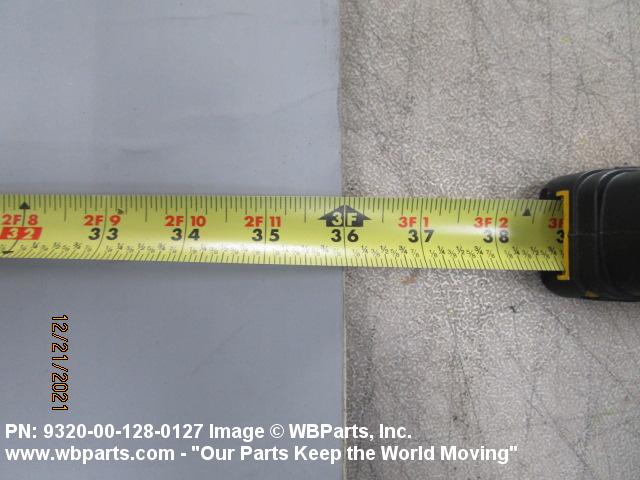

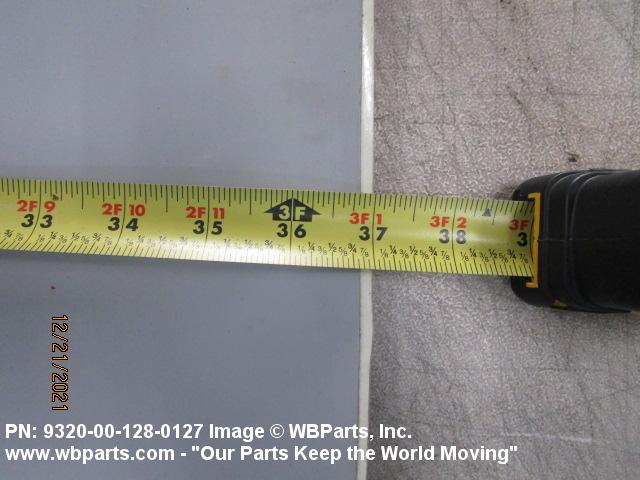

Drawings & Photos | NSN 9320-00-128-0127
Demand History | NSN 9320-00-128-0127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9320-00-128-0127 | 2025-09-267 | 5 | DIBBS |
| 9320-00-128-0127 | 2024-05-126 | 6 | DIBBS |
| 9320-00-128-0127 | 2024-05-122 | 6 | DIBBS |
| 9320-00-128-0127 | 2024-03-71 | 6 | DIBBS |
| ZZR765 | 2023-11-333 | 30 | United States |
| 9320-00-128-0127 | 2022-10-286 | 6 | DIBBS |
| 9320-00-128-0127 | 2021-12-336 | 1 | United States |
| 9320-00-128-0127 | 2021-04-97 | 6 | DIBBS |
| ZZR765 | 2021-02-40 | 16 | US |
| 9320-00-128-0127 | 2021-01-12 | 6 | DIBBS |
| ZZR765 | 2019-09-268 | 1 | United States |
| 9320-00-128-0127 | 2017-01-25 | 2 | DIBBS |
| 9320-00-128-0127 | 2015-03-76 | 7 | DIBBS |
| ZZR765 | 2013-02-38 | 68 | US |
| ZZR765 | 2011-04-115 | 5000 | US |
| ZZR765 | 2008-09-270 | 2 | CH |
Cross Reference | NSN 9320-00-128-0127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ZZ-R-765 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9320-00-128-0127
Related Products | NSN 9320-00-128-0127
Technical Data | NSN 9320-00-128-0127
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SILICONE, ZZ-R-765, CLASS 3A, GRADE 50 |
| STRENGTHENING FEATURE | BACKING |
| EXTERNAL STRENGTHENING FEATURE LOCATION | ONE SIDE |
| STRENGTHENING FEATURE MATERIAL | ADHESIVE |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1200 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | LOW TEMPERATURE AND TEAR AND FLEX RESISTANT |
| SURFACE CONDITION | SMOOTH BOTH SIDES |
| COLOR | GRAY BOTH SIDES |
| LENGTH | 36.000 INCHES NOMINAL |
| WIDTH | 36.000 INCHES NOMINAL |
| THICKNESS | 0.032 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 3A CLASS AND SH FORM AND 50 GRADE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY THE STRENGTHENING FEATURE AND COLOR |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZ-R-765 |
Restrictions/Controls & Freight Information | NSN 9320-00-128-0127
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156830 | PLASTIC/RUBR FILM/SHEETING |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9320-00-128-0127
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SH : Sheet |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SH : Sheet |
