NSN 9320-01-086-0424 8204551389H01, 820-4551389H01, 01-086-0424
Product Details | PROTECTION BELLOWS
9320-01-086-0424 A nonmetallic, accordian shaped protective covering designed to flex due to relative motion between parts to which its opposite ends are attached. It is primarily used to cover the opening around a movable push-pull rod or part passing through a hole in a bulkhead, partition or the like.20353400020Hardware, Commercial53420023Hardware, Weapon System93900046Miscellaneous Fabricated Nonmetallic Materials
Part Alternates: 8204551389H01, 820-4551389H01, 9320-01-086-0424, 01-086-0424, 9320010860424, 010860424
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 20 NOV 1979 | 01-086-0424 | 35168 ( BELLOWS, PROTECTION ) |

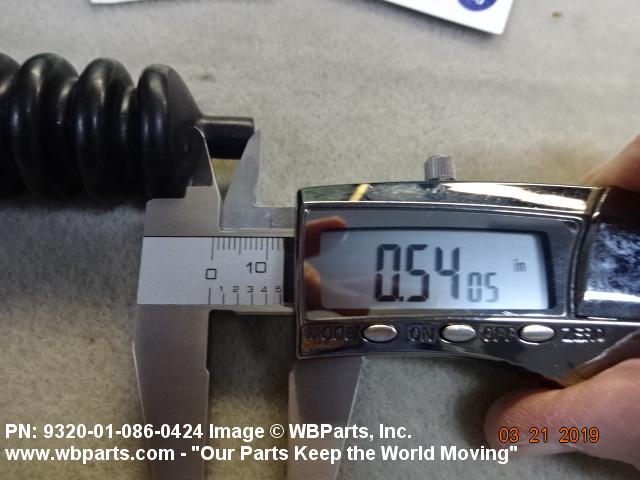

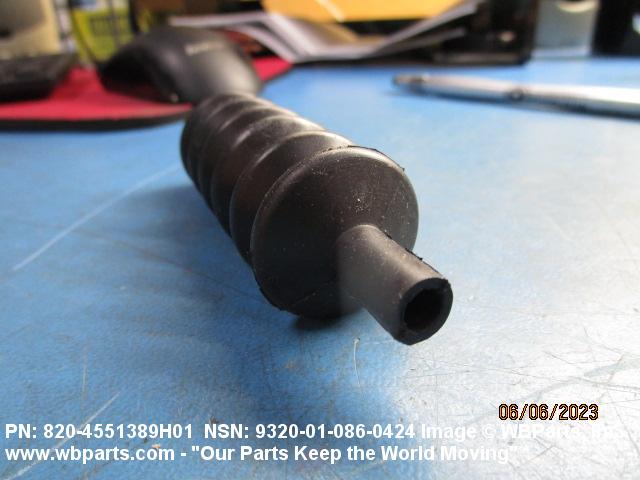

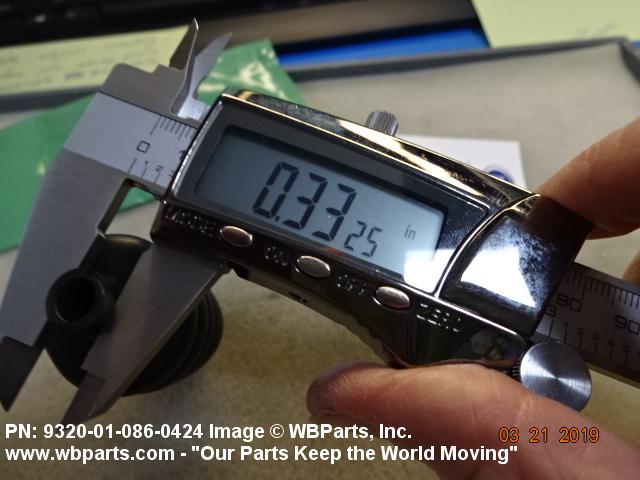

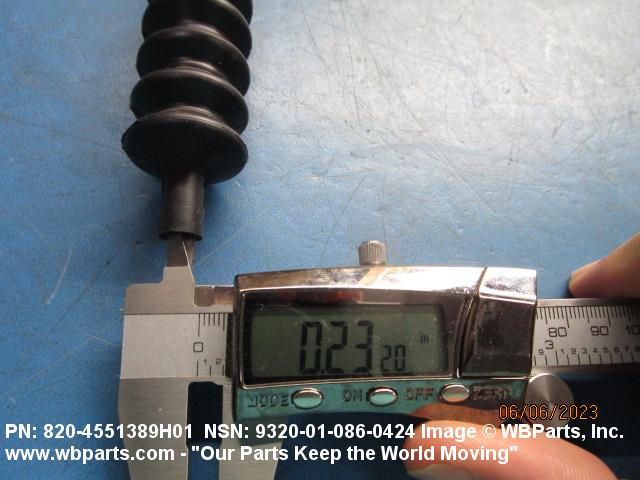

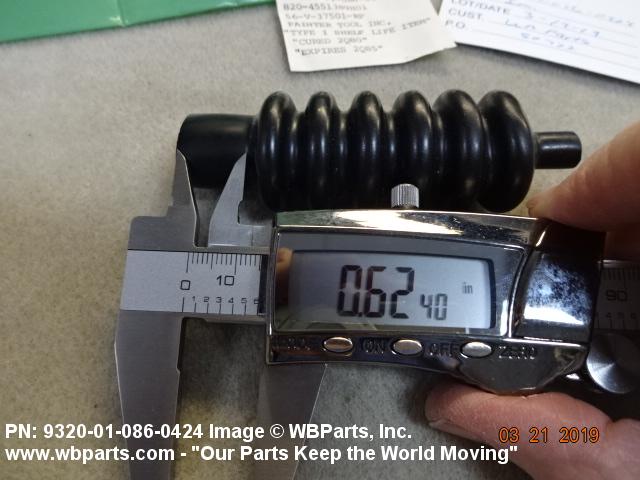

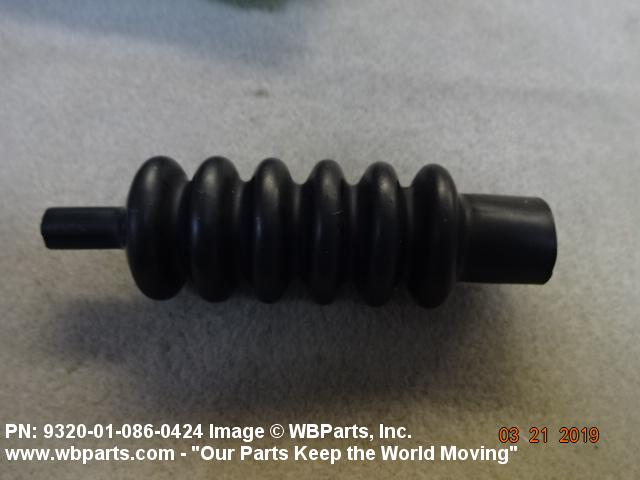

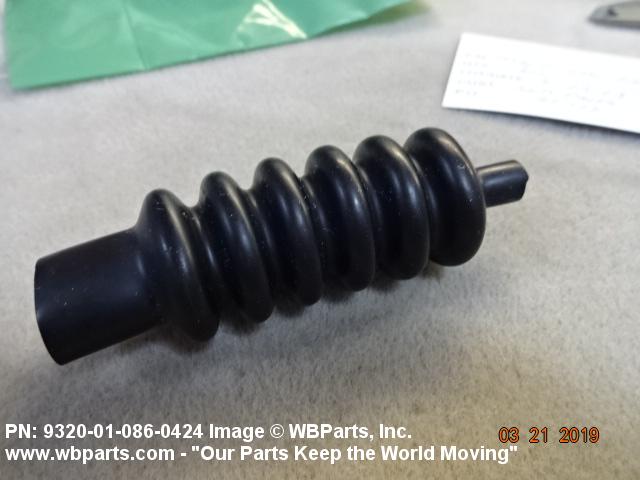

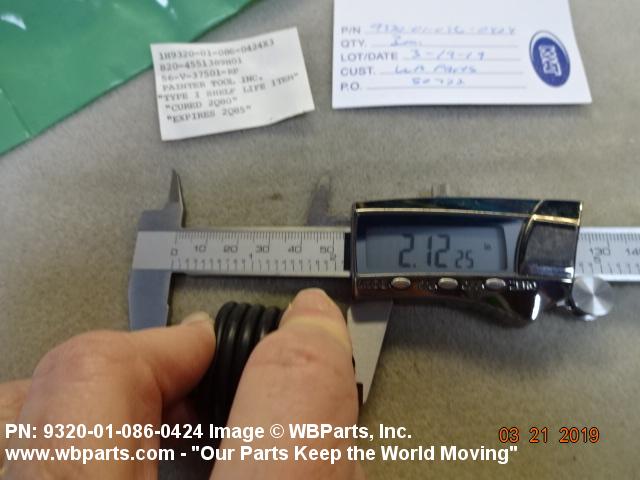

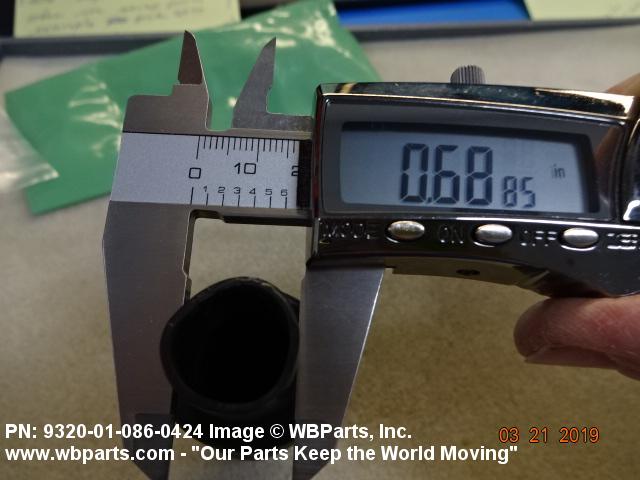

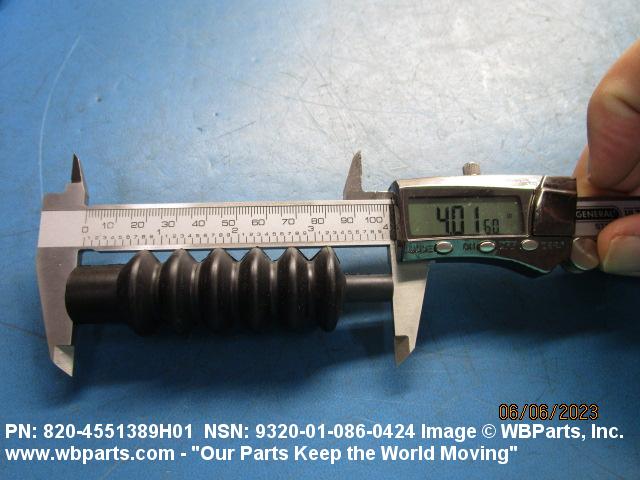

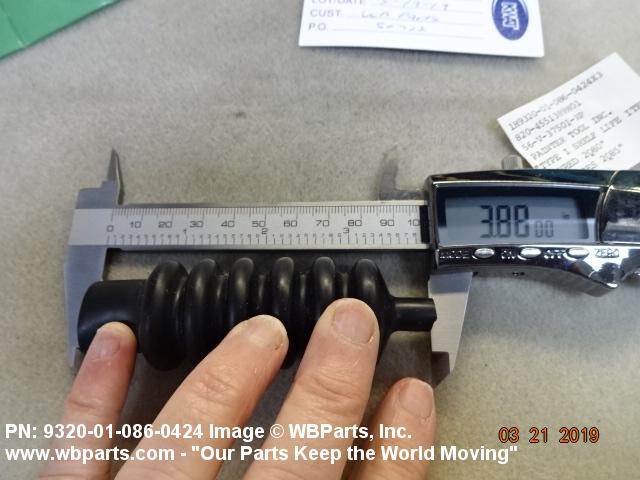

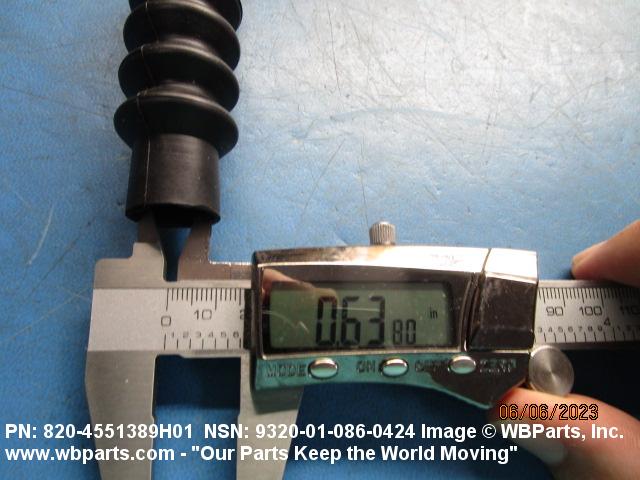

Drawings & Photos | NSN 9320-01-086-0424
Demand History | NSN 9320-01-086-0424
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8204551389H01 | 2025-08-225 | 2 | United States |
| 9320-01-086-0424 | 2025-08-225 | 2 | United States |
| 9320-01-086-0424 | 2024-11-323 | 1 | US |
| 9320-01-086-0424 | 2022-11-315 | 2 | United States |
| 9320-01-086-0424 | 2022-11-312 | 2 | United States |
| 9320-01-086-0424 | 2022-06-178 | 1 | United States |
| 9320-01-086-0424 | 2020-01-27 | 2 | United States |
| 8204551389H01 | 2019-03-67 | 1 | United States |
| 8204551389H01 | 2019-03-67 | 3 | United States |
Cross Reference | NSN 9320-01-086-0424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 820-4551389H01 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9320-01-086-0424
Related Products | NSN 9320-01-086-0424
Technical Data | NSN 9320-01-086-0424
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, CHLOROPRENE |
| DUROMETER HARDNESS RATING | NOT RATED |
| EXTENDED LENGTH | 3.880 INCHES MINIMUM AND 4.120 INCHES MAXIMUM |
| CONTRACTED LENGTH | 2.000 INCHES MINIMUM AND 2.120 INCHES MAXIMUM |
| NEUTRAL LENGTH | 4.000 INCHES NOMINAL |
| FLANGE BASE | NOT PROVIDED |
| LARGE END OUTSIDE WIDTH | 0.620 INCHES NOMINAL |
| SMALL END OUTSIDE WIDTH | 0.250 INCHES NOMINAL |
| LARGE END OUTSIDE LENGTH | 0.620 INCHES NOMINAL |
| SMALL END OUTSIDE LENGTH | 0.620 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 820-4551389H01 |
Restrictions/Controls & Freight Information | NSN 9320-01-086-0424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | U | 96 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9320-01-086-0424
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | U | 96 months |
| Purchasing | QTY UOM |
1 EA : Each |
