NSN 9320-01-313-3132 AA55757, A-A-55757 , AA55757001D4
Product Details | RUBBER ROUND SECTION
9320-01-313-3132 An item of natural and/or synthetic rubber of solid or cellular structure having a circular cross section. Items of cellular structure may be tubular or nontubular. It may have a wire or cord insert. For flexible tubular items of solid rubber structure, see TUBING NONMETALLIC. Excludes HOSE, NONMETALLIC and electric current carrying items.20253300028Packing and Gasket Materials93200027Rubber Fabricated Materials
Part Alternates: AA55757, A-A-55757 , AA55757001D4, AA55757-001D4 , ZZR765, ZZ-R-765, ZZR765/13-001D4, ZZR76513001D4, 9320-01-313-3132, 01-313-3132, 9320013133132, 013133132
Nonmetallic Fabricated Materials | Rubber Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 JAN 1990 | 01-313-3132 | 20856 ( RUBBER ROUND SECTION ) |
Drawings & Photos | NSN 9320-01-313-3132
Demand History | NSN 9320-01-313-3132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ZZR765 | 2023-11-333 | 30 | United States |
| ZZR765 | 2021-02-40 | 16 | US |
| ZZR765 | 2019-09-268 | 1 | United States |
| ZZR765 | 2013-02-38 | 68 | US |
| ZZR765 | 2011-04-115 | 5000 | US |
| ZZR765 | 2008-09-270 | 2 | CH |
Cross Reference | NSN 9320-01-313-3132
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-55757 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55757-001D4 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| ZZ-R-765 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| ZZR765/13-001D4 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9320-01-313-3132
Technical Data | NSN 9320-01-313-3132
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SILICONE, ZZ-R-765, CLASS 2B, GRADE 40 |
| NONMETALLIC HARDNESS RATING | 35.0 MINIMUM SHORE DUROMETER A AND 45.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 700 POUNDS PER SQUARE INCH |
| TEMP RATING | -62.0 DEG CELSIUS AND 218.5 DEG CELSIUS |
| FABRICATION METHOD | EXTRUDED |
| ENVIRONMENTAL PROTECTION | COMPRESSION AND LOW TEMPERATURE |
| SURFACE CONDITION | SMOOTH BOTH SIDES |

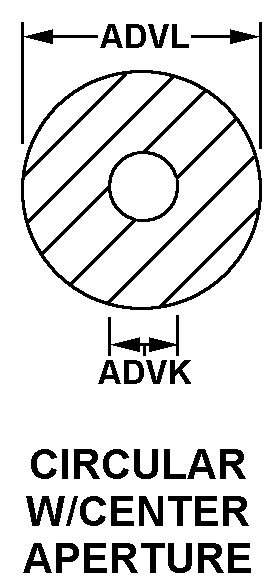

| CROSS-SECTIONAL SHAPE STYLE | 23 CIRCULAR WITH CENTER APERTURE |
| CROSS SECTION INSIDE DIAMETER | 17.625 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 18.875 INCHES NOMINAL |
| LENGTH | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | NATURAL SMOOTH FINISH |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZ-R-765 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZR765/13-001D4 |
Restrictions/Controls & Freight Information | NSN 9320-01-313-3132
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9320-01-313-3132
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
