NSN 9330-00-143-9522 C10000032, C10000-032, C202625
Product Details | NONMETALLIC TUBING
9330-00-143-9522 An item of varying tubular shapes molded or extruded from nonmetallic material. It includes flat form plastic tubing designed to be expanded for use and rubber tubing designed to be fabricated into sealing and/or cushioning devices. Excludes HOSE, NONMETALLIC and TUBE (as modified).20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: C10000032, C10000-032, C202625, C2026-2-5, CBT32, CFT160, CFT16-0, 9330-00-143-9522, 00-143-9522, 9330001439522, 001439522
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 26 FEB 1969 | 00-143-9522 | 31934 ( TUBING, NONMETALLIC ) |

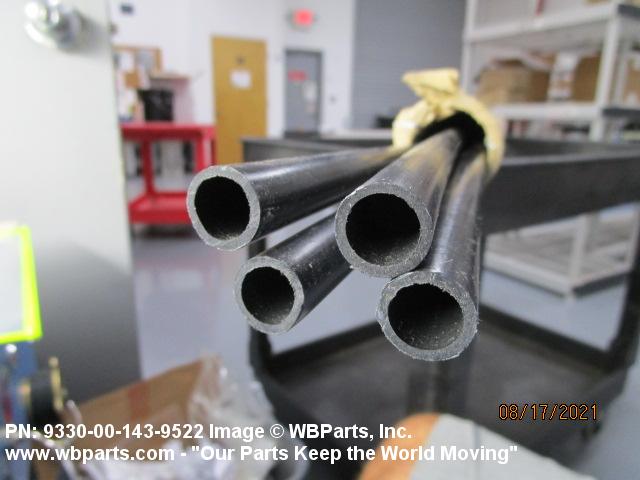

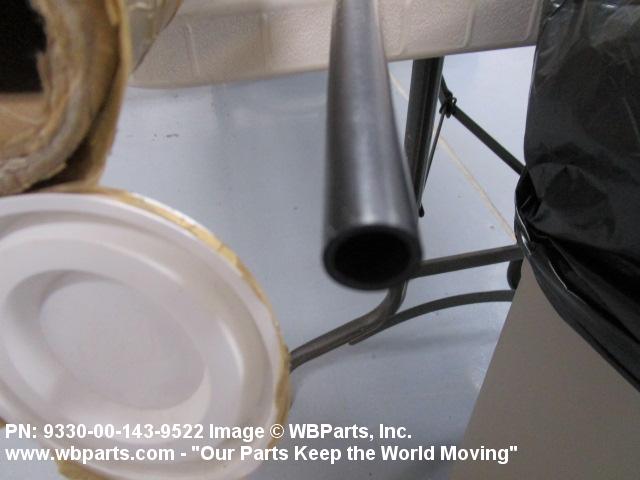

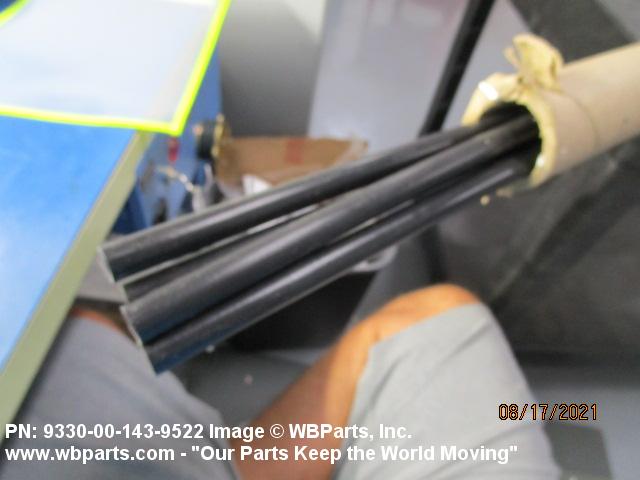

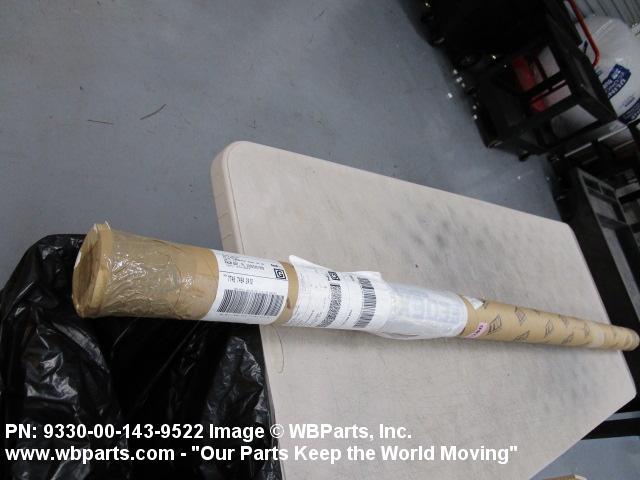

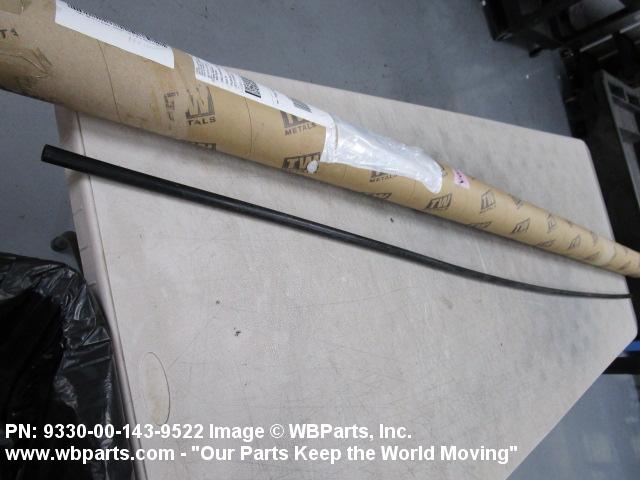

Drawings & Photos | NSN 9330-00-143-9522
Demand History | NSN 9330-00-143-9522
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-00-143-9522 | 2021-07-207 | 5 | United States |
| 9330-00-143-9522 | 2020-06-169 | 10 | US |
| 9330-00-143-9522 | 2020-06-163 | 8 | US |
| 9330-00-143-9522 | 2019-11-318 | 1299 | DIBBS |
| 9330-00-143-9522 | 2018-01-10 | 678 | DIBBS |
| 9330-00-143-9522 | 2017-01-11 | 295 | DIBBS |
| 9330-00-143-9522 | 2016-04-115 | 246 | DIBBS |
| 9330-00-143-9522 | 2013-11-324 | 132 | DIBBS |
| 9330-00-143-9522 | 2011-04-108 | 1000 | US |
Cross Reference | NSN 9330-00-143-9522
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9330-00-143-9522
Technical Data | NSN 9330-00-143-9522
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TUBING MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | BLACK |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

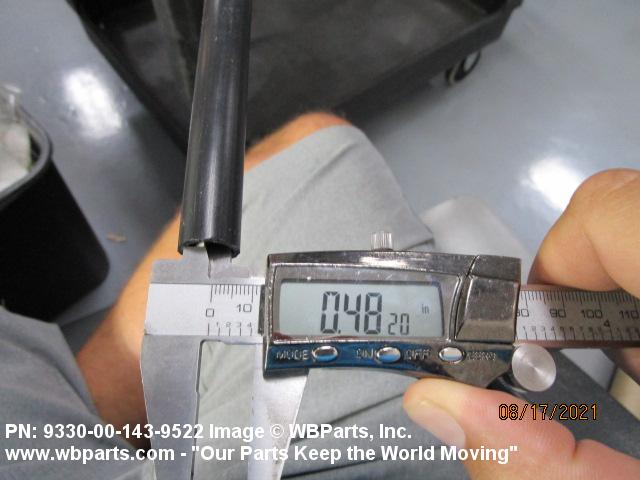

| INSIDE DIAMETER | 0.500 INCHES NOMINAL |

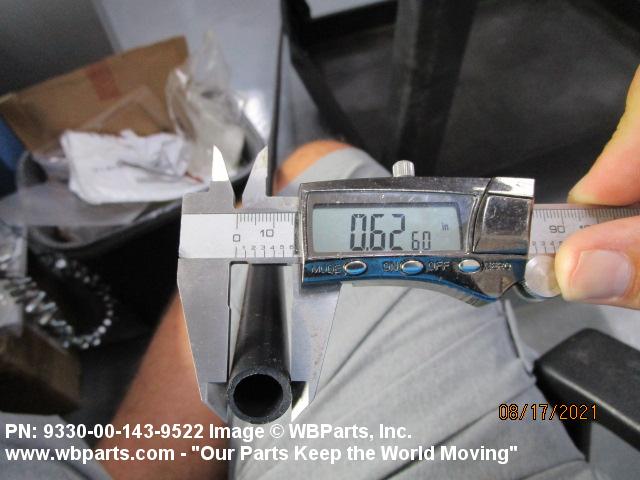

| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| FLEXIBILITY | FLEXIBLE |
| MINIMUM INSIDE BENDING RADIUS | 2.000 INCHES |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 9330-00-143-9522
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9330-00-143-9522
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
