NSN 9330-01-144-1112 MILP38477, MIL-P-38477, 5695
Product Details | PRESSURE SENSITIVE ADHESIVE COATED PLASTIC SHEET
9330-01-144-1112 A solid plastic material, coated with ADHESIVE on one side, with or without a removable backing. The ADHESIVE requires no activation by a solvent. Sheets are limited to a width greater than 6 inches (152.4 mm), it may be in roll form. Excludes PLASTIC SHEET, ADHESIVE COATED.
Part Alternates: MILP38477, MIL-P-38477, 5695, 9330-01-144-1112, 01-144-1112, 9330011441112, 011441112
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 14 DEC 1982 | 01-144-1112 | 21952 ( PLASTIC SHEET, PRESSURE SENSITIVE ADHESIVE COATED ) |

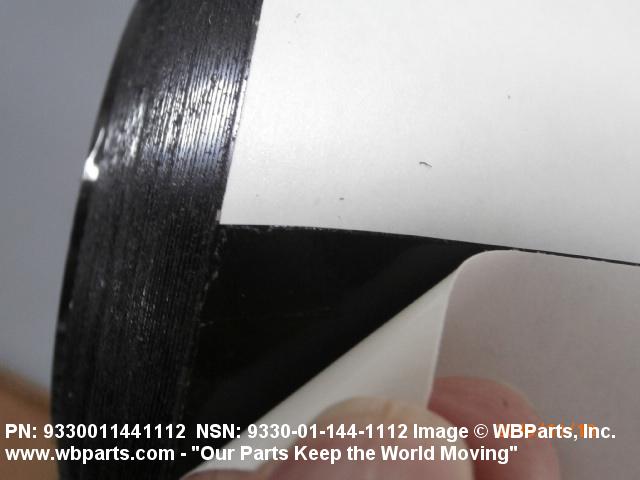

Drawings & Photos | NSN 9330-01-144-1112
Demand History | NSN 9330-01-144-1112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-01-144-1112 | 2025-09-248 | 1 | DIBBS |
| 9330-01-144-1112 | 2025-09-248 | 31 | DIBBS |
| 9330-01-144-1112 | 2025-08-231 | 1 | DIBBS |
| 9330-01-144-1112 | 2025-07-204 | 1 | DIBBS |
| 9330-01-144-1112 | 2025-07-204 | 31 | DIBBS |
| 9330-01-144-1112 | 2025-06-161 | 2 | DIBBS |
| 9330-01-144-1112 | 2025-04-119 | 1 | DIBBS |
| 9330-01-144-1112 | 2025-03-82 | 1 | DIBBS |
| 9330-01-144-1112 | 2025-01-12 | 4 | DIBBS |
| 9330-01-144-1112 | 2024-10-303 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-10-277 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-10-275 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-08-219 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-07-192 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-04-119 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-04-109 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-02-59 | 1 | DIBBS |
| 9330-01-144-1112 | 2024-01-17 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-08-235 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-06-165 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-05-129 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-05-123 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-03-87 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-03-81 | 1 | DIBBS |
| 9330-01-144-1112 | 2023-03-75 | 4 | DIBBS |
| 9330-01-144-1112 | 2022-11-306 | 2 | DIBBS |
| 9330-01-144-1112 | 2022-08-242 | 1 | DIBBS |
| 9330-01-144-1112 | 2022-07-207 | 4 | DIBBS |
| 9330-01-144-1112 | 2022-06-152 | 1 | DIBBS |
| 9330-01-144-1112 | 2022-05-123 | 1 | DIBBS |
| 9330-01-144-1112 | 2022-01-30 | 1 | DIBBS |
| 9330-01-144-1112 | 2022-01-25 | 1 | DIBBS |
| 9330-01-144-1112 | 2022-01-11 | 1 | DIBBS |
| 9330-01-144-1112 | 2021-11-333 | 2 | DIBBS |
| 9330-01-144-1112 | 2021-05-146 | 1 | DIBBS |
| 9330-01-144-1112 | 2021-03-62 | 1 | DIBBS |
| 9330-01-144-1112 | 2021-02-49 | 1 | DIBBS |
| 9330-01-144-1112 | 2021-02-41 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-12-364 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-11-310 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-10-299 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-08-238 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-07-212 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-07-210 | 4 | DIBBS |
| 9330-01-144-1112 | 2020-04-111 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-04-98 | 1 | DIBBS |
| 9330-01-144-1112 | 2020-01-15 | 1 | DIBBS |
| 9330-01-144-1112 | 2019-12-352 | 2 | DIBBS |
| 9330-01-144-1112 | 2019-11-318 | 1 | DIBBS |
| 9330-01-144-1112 | 2019-08-239 | 2 | US |
| 9330-01-144-1112 | 2019-08-226 | 2 | United States |
| 9330-01-144-1112 | 2019-08-225 | 2 | United States |
| 9330-01-144-1112 | 2019-07-190 | 2 | United States |
| 9330-01-144-1112 | 2018-03-63 | 1 | DIBBS |
| 9330-01-144-1112 | 2018-02-59 | 1 | DIBBS |
| 9330-01-144-1112 | 2018-02-59 | 2 | DIBBS |
| 9330-01-144-1112 | 2018-01-09 | 1 | DIBBS |
| 9330-01-144-1112 | 2017-07-206 | 2 | DIBBS |
| 9330-01-144-1112 | 2017-01-23 | 1 | United States |
| 9330-01-144-1112 | 2015-11-321 | 1 | DIBBS |
| 9330-01-144-1112 | 2015-06-160 | 1 | DIBBS |
| 9330-01-144-1112 | 2015-04-118 | 1 | DIBBS |
| 9330-01-144-1112 | 2014-09-246 | 2 | DIBBS |
| 9330-01-144-1112 | 2014-03-77 | 1 | DIBBS |
| 9330-01-144-1112 | 2013-06-181 | 2 | DIBBS |
| 9330-01-144-1112 | 2012-10-299 | 1 | DIBBS |
| MILP38477 | 2010-09-253 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9330-01-144-1112
Related Products | NSN 9330-01-144-1112
Technical Data | NSN 9330-01-144-1112
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC,POLYESTER,MIL-P-38477 |
| REMOVABLE BACKING TYPE | ANY ACCEPTABLE |
| REMOVABLE BACKING SURFACE CONDITION | PLAIN |
| COLOR | BLACK, FED STD 595, 17038 |
| LENGTH | 50.000 YARDS NOMINAL |

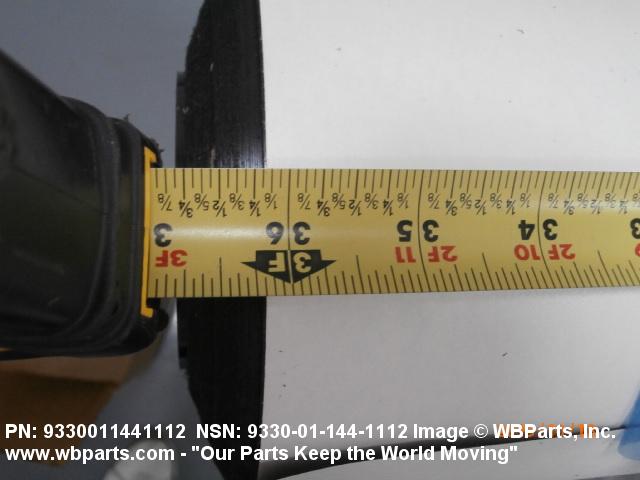

| WIDTH | 36.000 INCHES NOMINAL |

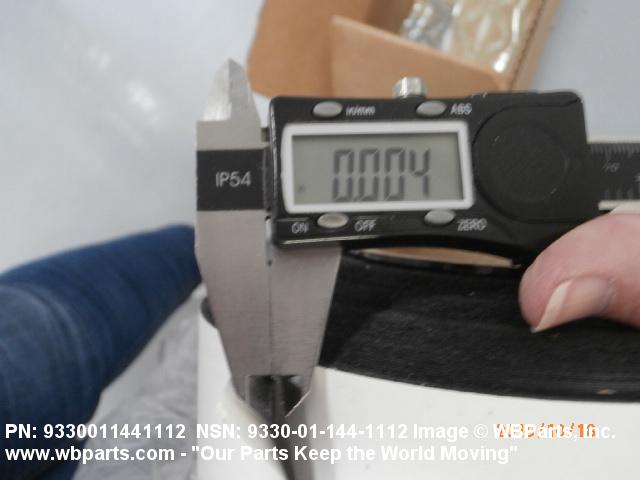

| THICKNESS | 0.003 INCHES MINIMUM AND 0.004 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-38477 |
Restrictions/Controls & Freight Information | NSN 9330-01-144-1112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 5 | 18 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156830 | PLASTIC/RUBR FILM/SHEETING |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-144-1112
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 5 | 18 months |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 5 | 18 months |
| Purchasing | QTY UOM |
Z RO : Roll |
