NSN 9340-00-226-1370 CS25100007, CS2510-0007, 482362
Product Details | LAMINATED GLASS
9340-00-226-1370 A transparent item consisting of two or more pieces of glass, with straight parallel surfaces bonded together by an interlay of transparent plastic to prevent fragmentation or splintering if broken. It may be heat strengthened and/or tinted and is generally used where safety glazing characteristics are required, such as airplane windows, explosive hazards and furniture shielding.
Part Alternates: CS25100007, CS2510-0007, 482362, 9340-00-226-1370, 00-226-1370, 9340002261370, 002261370
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 03 JAN 1968 | 00-226-1370 | 04006 ( GLASS, LAMINATED ) |
Drawings & Photos | NSN 9340-00-226-1370
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-00-226-1370
Technical Data | NSN 9340-00-226-1370
| Characteristic | Specifications |
|---|---|

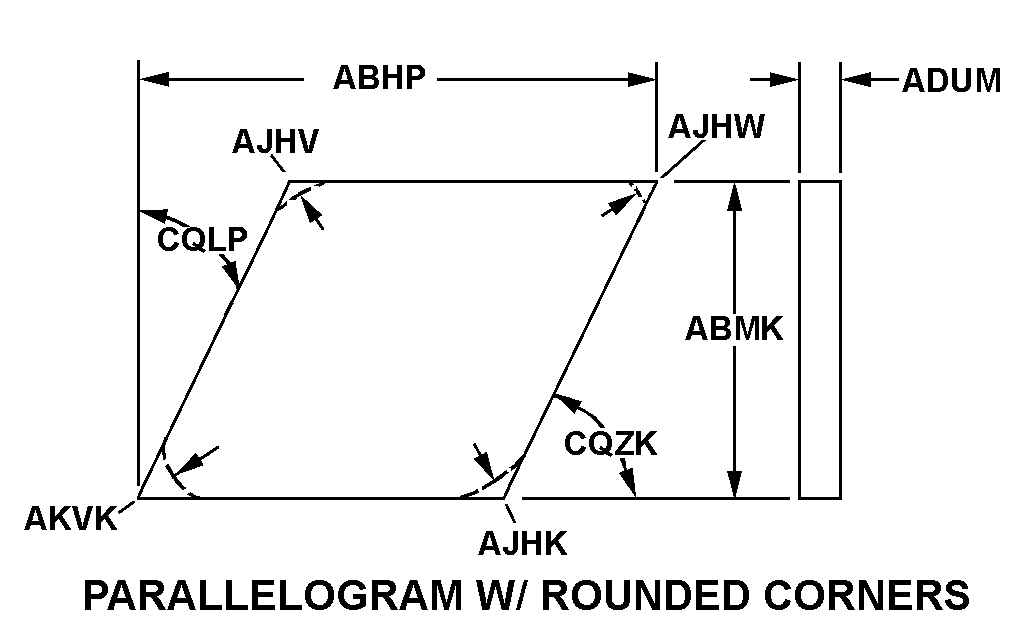

| STYLE DESIGNATOR | 7 PARALLELOGRAM ROUNDED CORNERS |
| OVERALL LENGTH | 37.938 INCHES NOMINAL |
| OVERALL WIDTH | 28.375 INCHES NOMINAL |
| OVERALL THICKNESS | 0.250 INCHES NOMINAL |
| SECOND CORNER RADIUS | 2.688 INCHES NOMINAL |
| MATERIAL | GLASS LAMINATE |
| MATERIAL TRANSPARENCY | CLEAR |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HARDNESS RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 9340-00-226-1370
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-00-226-1370
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
