NSN 9350-00-055-9850 EMPIREDP, 00-055-9850, 000559850
Product Details | ARCH REFRACTORY BRICK
9350-00-055-9850 A brick manufactured essentially of temperature stable mineral aggregates, formed by pressure into an arch shape. It is suitable for constructing industrial and boiler furnaces. Resistance to temperature is the prime characteristic, but resistance to one or more of the destructive actions of spalling, abrasion, slag attack, or load is usually required. Excludes BRICK, INSULATING, HIGH TEMPERATURE.
Part Alternates: EMPIREDP, 9350-00-055-9850, 00-055-9850, 9350000559850, 000559850
Nonmetallic Fabricated Materials | Refractories and Fire Surfacing Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 01 JAN 1963 | 00-055-9850 | 04536 ( BRICK, REFRACTORY, ARCH ) |

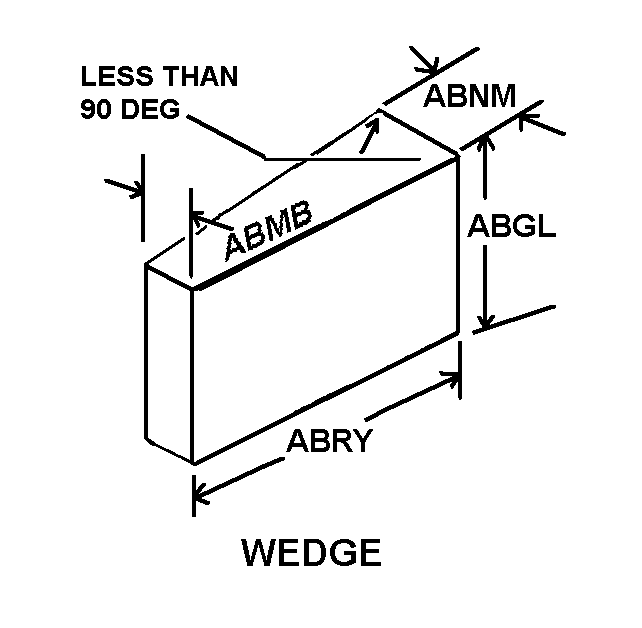

Drawings & Photos | NSN 9350-00-055-9850
Cross Reference | NSN 9350-00-055-9850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EMPIREDP | 84446 | GREEN A P INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9350-00-055-9850
Technical Data | NSN 9350-00-055-9850
| Characteristic | Specifications |
|---|---|
| MATERIAL | CLAY, FIRE |
| STYLE DESIGNATOR | B2 WEDGE |
| WIDTH | 4.500 INCHES NOMINAL |
| THICKNESS | 2.500 INCHES NOMINAL |
| SLOT LENGTH | 1.750 INCHES NOMINAL |
| LENGTH | 9.000 INCHES NOMINAL |
| PYROMETRIC CONE MINIMUM EQUIVALENT | NOT RATED |
Restrictions/Controls & Freight Information | NSN 9350-00-055-9850
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Hazardous Control Code: | H1 | Hazard Characteristics Not Yet Determined * HAZ CHAR NOT DETERMINED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
