NSN 9350-00-142-6104 KORUNDAL, MILB15606, MIL-B-15606
Product Details | SPECIAL SHAPE REFRACTORY BRICK
9350-00-142-6104 A brick manufactured essentially of temperature stable mineral aggregates, formed by pressure into a special shape. It is suitable for constructing industrial and boiler furnaces. Resistance to temperature is the prime characteristic, but resistance to one or more of the destructive actions of spalling, abrasion, slag attack, or load is usually required. Excludes BRICK, INSULATING, HIGH TEMPERATURE.
Part Alternates: KORUNDAL, MILB15606, MIL-B-15606, TAYCOR, 5000S51021385784PC31, 5000S5102-1385784PC31, 9350-00-142-6104, 00-142-6104, 9350001426104, 001426104
Nonmetallic Fabricated Materials | Refractories and Fire Surfacing Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 06 SEP 1968 | 00-142-6104 | 04549 ( BRICK, REFRACTORY, SPECIAL SHAPE ) |

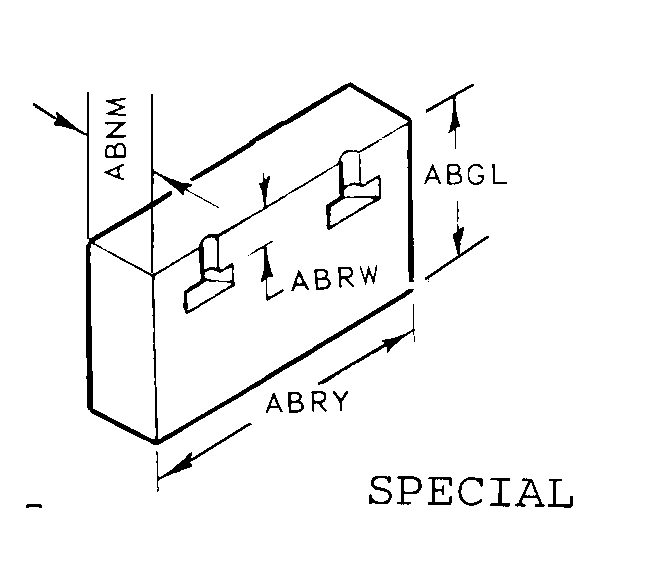

Drawings & Photos | NSN 9350-00-142-6104
Cross Reference | NSN 9350-00-142-6104
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9350-00-142-6104
Technical Data | NSN 9350-00-142-6104
| Characteristic | Specifications |
|---|---|
| MATERIAL | HI-ALUMINA |
| STYLE DESIGNATOR | A1 SPECIAL |
| WIDTH | 5.500 INCHES NOMINAL |
| THICKNESS | 2.500 INCHES NOMINAL |
| SLOT LENGTH | 1.000 INCHES NOMINAL |
| LENGTH | 9.000 INCHES NOMINAL |
| PYROMETRIC CONE MINIMUM EQUIVALENT | NOT RATED |
| MINIMUM RUPTURE MODULUS | 600.000 POUNDS PER SQUARE INCH |
| NONDEFINITIVE SPEC/STD DATA | AA GRADE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-15606 |
Restrictions/Controls & Freight Information | NSN 9350-00-142-6104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 032100 | BRICK BUILDING/FIREBRICK ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 660 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9350-00-142-6104
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
