NSN 9350-00-463-4351 94160, 94-160, 00-463-4351
Product Details | ARCH REFRACTORY BRICK
9350-00-463-4351 A brick manufactured essentially of temperature stable mineral aggregates, formed by pressure into an arch shape. It is suitable for constructing industrial and boiler furnaces. Resistance to temperature is the prime characteristic, but resistance to one or more of the destructive actions of spalling, abrasion, slag attack, or load is usually required. Excludes BRICK, INSULATING, HIGH TEMPERATURE.
Part Alternates: 94160, 94-160, 9350-00-463-4351, 00-463-4351, 9350004634351, 004634351
Nonmetallic Fabricated Materials | Refractories and Fire Surfacing Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 17 AUG 1970 | 00-463-4351 | 04536 ( BRICK, REFRACTORY, ARCH ) |
Drawings & Photos | NSN 9350-00-463-4351
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9350-00-463-4351
Technical Data | NSN 9350-00-463-4351
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |

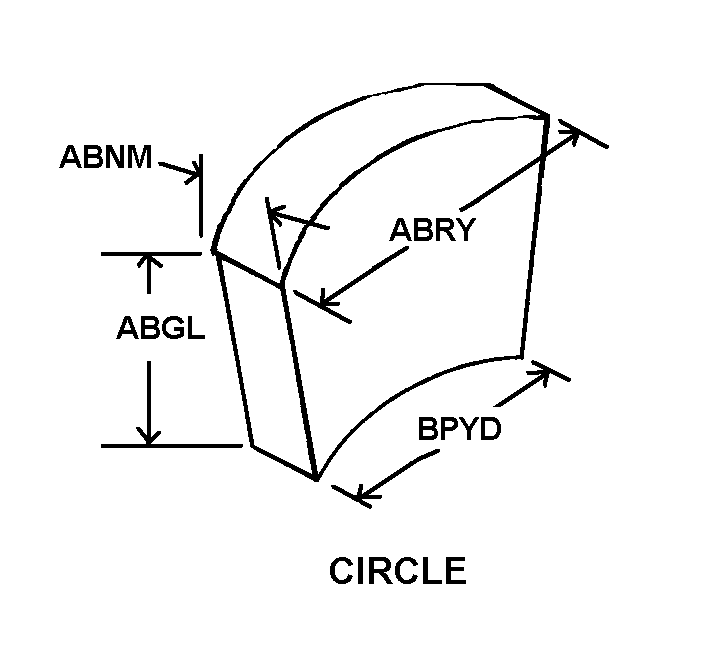

| STYLE DESIGNATOR | B9 CIRCLE |
| WIDTH | 11.500 INCHES NOMINAL |
| THICKNESS | 1.875 INCHES NOMINAL |
| LENGTH | 7.375 INCHES NOMINAL |
| MANUFACTURERS CODE | 12793 |
| DESIGN CONTROL REFERENCE | 94-160 |
Restrictions/Controls & Freight Information | NSN 9350-00-463-4351
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 182510 | TILE/MOLDING ASPHALT COMPOSITION |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 606 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9350-00-463-4351
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
