NSN 9350-00-691-1777 MIZZOU, ALUMEX 60, ALUMEX60
Product Details | SPECIAL SHAPE REFRACTORY BRICK
9350-00-691-1777 A brick manufactured essentially of temperature stable mineral aggregates, formed by pressure into a special shape. It is suitable for constructing industrial and boiler furnaces. Resistance to temperature is the prime characteristic, but resistance to one or more of the destructive actions of spalling, abrasion, slag attack, or load is usually required. Excludes BRICK, INSULATING, HIGH TEMPERATURE.
Part Alternates: MIZZOU, ALUMEX 60, ALUMEX60, ANCHOR DASH, ANCHORDASH, FRANCO, LSD35-200-4692817 PIECE 3, LSD352004692817PIECE3, MILB15606, 200 5502386-2, 200-2254468 PIE, 2002254468PIE, 200-4692816 PIECE 7, 2004692816PIECE7, 20055023862, 200-S5102-2215250 PIECE 2, 200S51022215250PIECE2, 5000S51021385784PC27, 5000S5102-1385784PC27, 9350-00-691-1777, 00-691-1777, 9350006911777, 006911777
Nonmetallic Fabricated Materials | Refractories and Fire Surfacing Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 01 JAN 1963 | 00-691-1777 | 04549 ( BRICK, REFRACTORY, SPECIAL SHAPE ) |

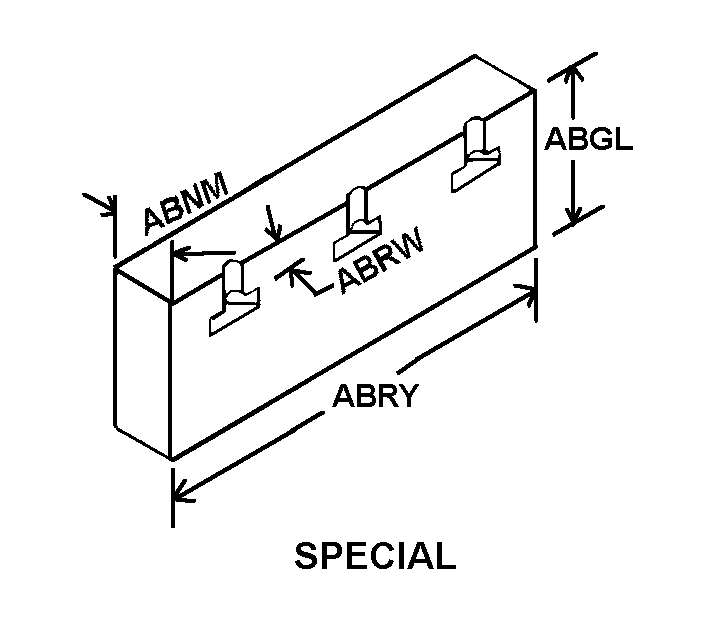

Drawings & Photos | NSN 9350-00-691-1777
Demand History | NSN 9350-00-691-1777
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9350-00-691-1777 | 2021-11-305 | 576 | DIBBS |
| 9350-00-691-1777 | 2021-10-293 | 576 | DIBBS |
| 9350-00-691-1777 | 2021-04-118 | 677 | United States |
| 9350-00-691-1777 | 2021-03-75 | 677 | DIBBS |
| 9350-00-691-1777 | 2016-08-230 | 483 | DIBBS |
| 9350-00-691-1777 | 2016-07-213 | 196 | DIBBS |
| 9350-00-691-1777 | 2015-09-260 | 483 | DIBBS |
| 9350-00-691-1777 | 2015-05-139 | 258 | DIBBS |
| 9350-00-691-1777 | 2015-04-103 | 163 | DIBBS |
| 9350-00-691-1777 | 2013-09-266 | 360 | DIBBS |
| 9350-00-691-1777 | 2013-09-266 | 414 | DIBBS |
| 9350-00-691-1777 | 2013-09-266 | 500 | DIBBS |
| 9350-00-691-1777 | 2011-12-363 | 1109 | DIBBS |
| 9350-00-691-1777 | 2011-04-102 | 667 | DIBBS |
| 9350-00-691-1777 | 2011-02-48 | 464 | DIBBS |
| 9350-00-691-1777 | 2011-02-48 | 750 | DIBBS |
| 9350-00-691-1777 | 2010-04-93 | 464 | DIBBS |
| 9350-00-691-1777 | 2009-10-282 | 750 | DIBBS |
Cross Reference | NSN 9350-00-691-1777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200 5502386-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 200-2254468 PIE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 200-4692816 PIECE 7 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 200-S5102-2215250 PIECE 2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5000S5102-1385784PC27 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| ALUMEX 60 | 20166 | KAISER REFRACTORIES DIV OF KAISER ALUMINUM AND CHEMICAL SALES INC |
| ANCHOR DASH | 73064 | DRESSER INDUSTRIES INC HARBISON-WALKER REFRACTORIES DIV |
| FRANCO | 07316 | PREMIER REFRACTORIES INC |
| LSD35-200-4692817 PIECE 3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| MILB15606 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIZZOU | 84446 | GREEN A P INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9350-00-691-1777
Technical Data | NSN 9350-00-691-1777
| Characteristic | Specifications |
|---|---|
| MATERIAL | HI-ALUMINA |
| MATERIAL PERCENTAGE | 57.5 |
| STYLE DESIGNATOR | A7 SPECIAL |
| WIDTH | 4.500 INCHES NOMINAL |
| THICKNESS | 2.500 INCHES NOMINAL |
| SLOT LENGTH | 1.000 INCHES NOMINAL |
| LENGTH | 13.563 INCHES NOMINAL |
| PYROMETRIC CONE MINIMUM EQUIVALENT | NO.35 (3245 DEG F) |
| MINIMUM RUPTURE MODULUS | 500.000 POUNDS PER SQUARE INCH |
| NONDEFINITIVE SPEC/STD DATA | A GRADE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB15606 |
Restrictions/Controls & Freight Information | NSN 9350-00-691-1777
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 032100 | BRICK BUILDING/FIREBRICK ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 660 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9350-00-691-1777
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
