NSN 9350-01-240-2366 H-22 12.1 LBS, H22121LBS, 01-240-2366
Product Details | ARCH REFRACTORY BRICK
9350-01-240-2366 A brick manufactured essentially of temperature stable mineral aggregates, formed by pressure into an arch shape. It is suitable for constructing industrial and boiler furnaces. Resistance to temperature is the prime characteristic, but resistance to one or more of the destructive actions of spalling, abrasion, slag attack, or load is usually required. Excludes BRICK, INSULATING, HIGH TEMPERATURE.
Part Alternates: H-22 12.1 LBS, H22121LBS, 9350-01-240-2366, 01-240-2366, 9350012402366, 012402366
Nonmetallic Fabricated Materials | Refractories and Fire Surfacing Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 11 SEP 1986 | 01-240-2366 | 04536 ( BRICK, REFRACTORY, ARCH ) |

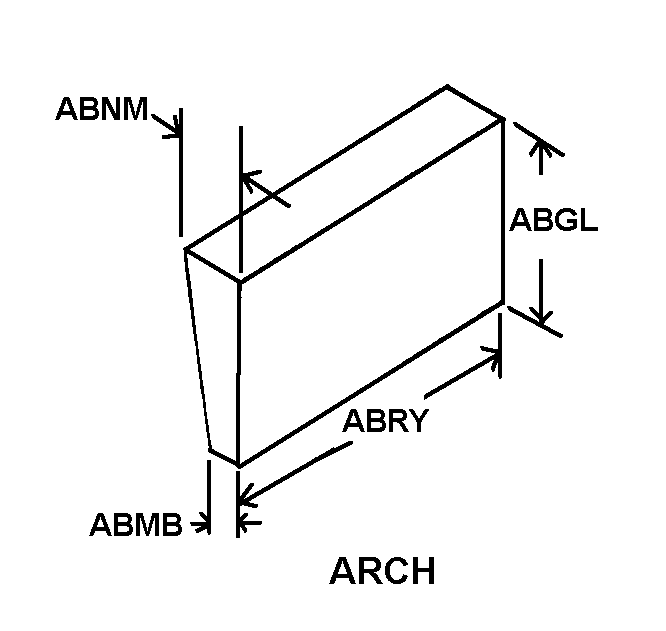

Drawings & Photos | NSN 9350-01-240-2366
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9350-01-240-2366
Technical Data | NSN 9350-01-240-2366
| Characteristic | Specifications |
|---|---|
| MATERIAL | CHROME-MAGNESITE |
| STYLE DESIGNATOR | B7 ARCH |
| WIDTH | 3.000 INCHES NOMINAL |
| MINOR THICKNESS | 3.625 INCHES NOMINAL |
| THICKNESS | 4.000 INCHES NOMINAL |
| LENGTH | 9.000 INCHES NOMINAL |
| SPECIAL FEATURES | NO. 5 ARCH |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH,WIDTH AND THICKNESS |
| MANUFACTURERS CODE | 2H423 |
| DESIGN CONTROL REFERENCE | H-22 12.1 LBS |
Restrictions/Controls & Freight Information | NSN 9350-01-240-2366
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9350-01-240-2366
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
