NSN 9390-00-060-0586 LS991, 00-060-0586, 000600586
Product Details | NONMETALLIC CHANNEL
9390-00-060-0586 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Part Alternates: LS991, 9390-00-060-0586, 00-060-0586, 9390000600586, 000600586
Nonmetallic Fabricated Materials | Miscellaneous Fabricated Nonmetallic Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 01 JAN 1963 | 00-060-0586 | 30218 ( NONMETALLIC CHANNEL ) |

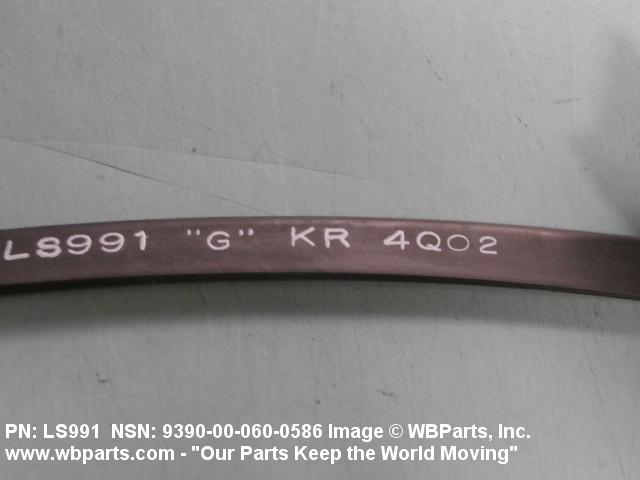

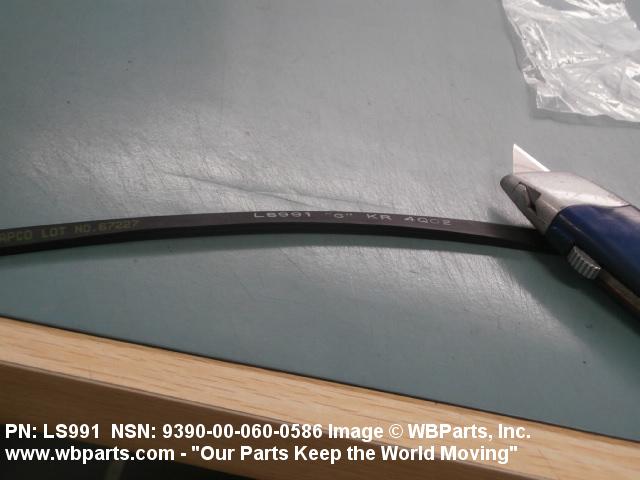

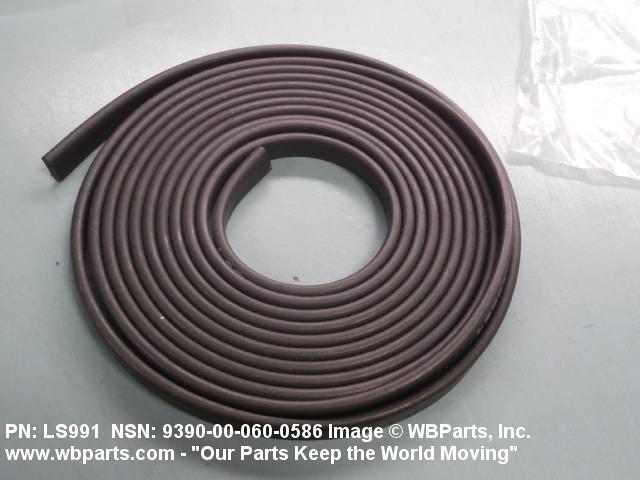

Drawings & Photos | NSN 9390-00-060-0586
Demand History | NSN 9390-00-060-0586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9390-00-060-0586 | 2025-07-183 | 2 | US |
| LS991 | 2023-06-156 | 5 | US |
| 9390-00-060-0586 | 2022-05-128 | 1 | NZ |
| 9390-00-060-0586 | 2021-08-237 | 1522 | DIBBS |
| 9390-00-060-0586 | 2020-10-292 | 988 | DIBBS |
| 9390-00-060-0586 | 2017-11-306 | 1492 | DIBBS |
| 9390-00-060-0586 | 2017-02-53 | 1056 | DIBBS |
| 9390-00-060-0586 | 2015-11-334 | 1001 | DIBBS |
| LS991 | 2014-02-34 | 12 | United States |
| LS991 | 2014-01-14 | 10 | United States |
| 9390-00-060-0586 | 2011-12-363 | 1811 | DIBBS |
| 9390-00-060-0586 | 2011-10-280 | 752 | DIBBS |
| 9390-00-060-0586 | 2010-04-93 | 672 | DIBBS |
Cross Reference | NSN 9390-00-060-0586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS991 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9390-00-060-0586
Technical Data | NSN 9390-00-060-0586
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | B3A1 |

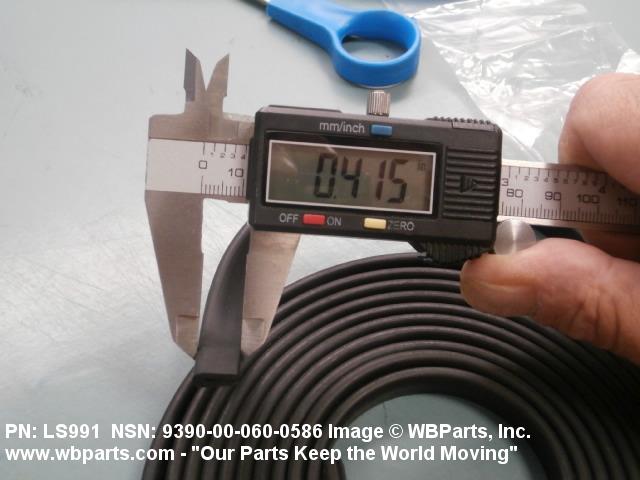

| OVERALL HEIGHT | 0.400 INCHES NOMINAL |

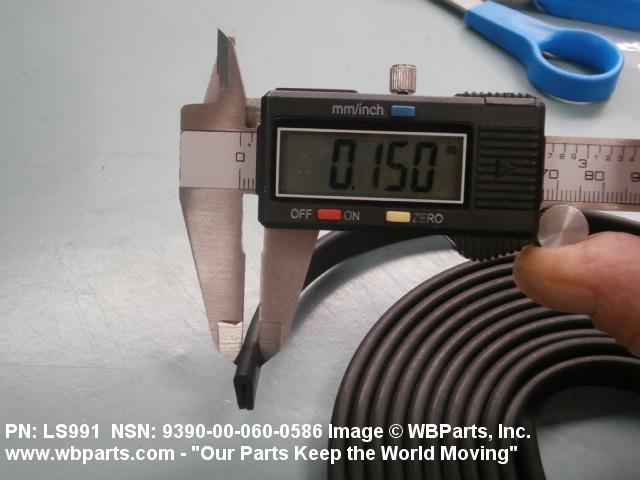

| OVERALL WIDTH | 0.160 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.400 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.080 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.080 INCHES NOMINAL |
| LENGTH | 120.000 INCHES NOMINAL |
| MATERIAL | RUBBER, SYNTHETIC, MIL-R-6855, CLASS 2, TYPE A, GRADE 50 |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | PETROLEUM AND LOW TEMPERATURE AND OZONE RESISTANT AND WEATHER RESISTANT |
| SPECIAL FEATURES | SMOOTH FINISH AND FREE FROM CLOTH IMPRINT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS991 |
Restrictions/Controls & Freight Information | NSN 9390-00-060-0586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
