NSN 9390-00-987-3595 LS5320, MILS6855, 00-987-3595
Product Details | NONMETALLIC SPECIAL SHAPED SECTION
9390-00-987-3595 A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: LS5320, MILS6855, 9390-00-987-3595, 00-987-3595, 9390009873595, 009873595
Nonmetallic Fabricated Materials | Miscellaneous Fabricated Nonmetallic Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 26 OCT 1966 | 00-987-3595 | 30219 ( NONMETALLIC SPECIAL SHAPED SECTION ) |

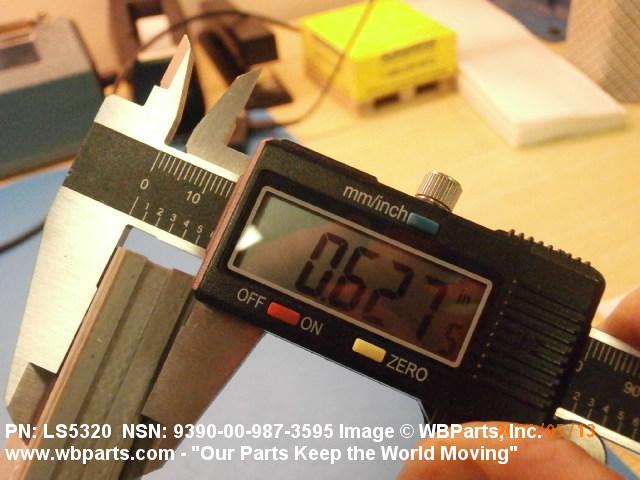

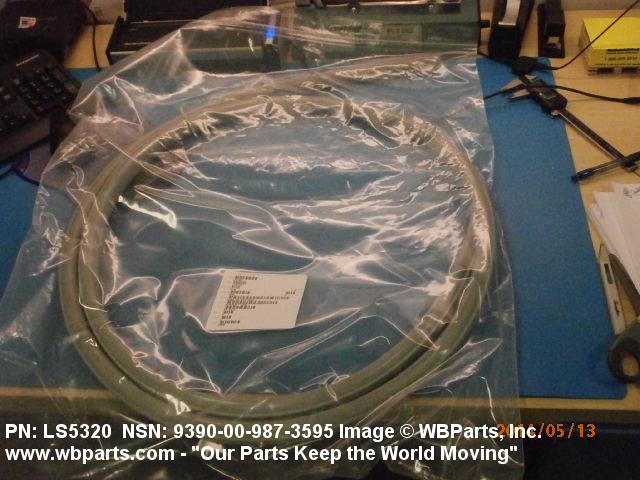

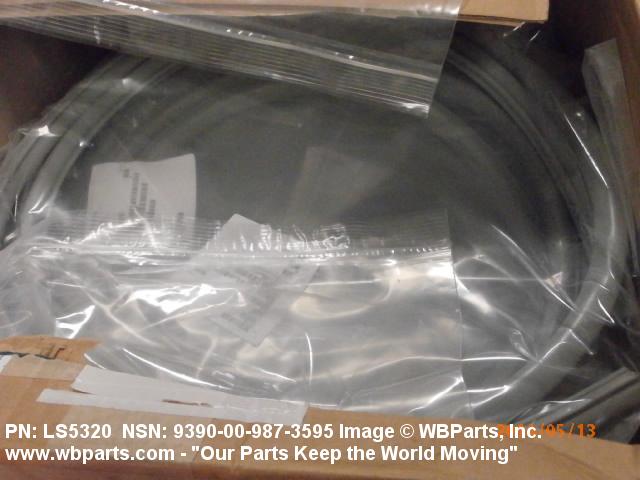

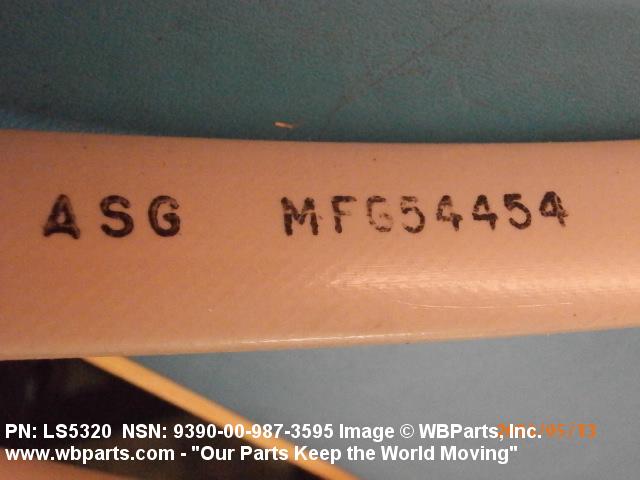

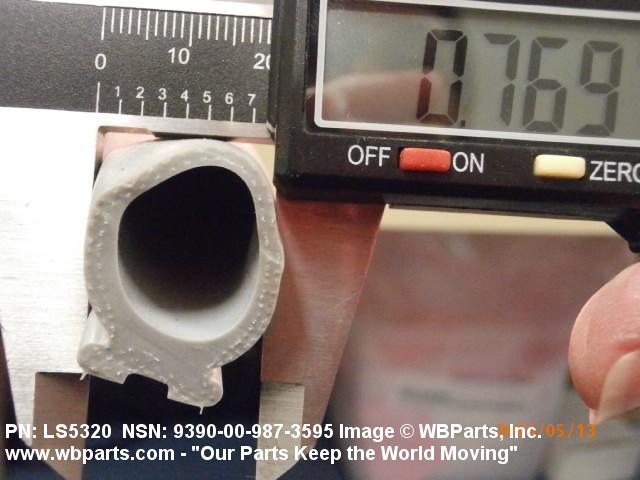

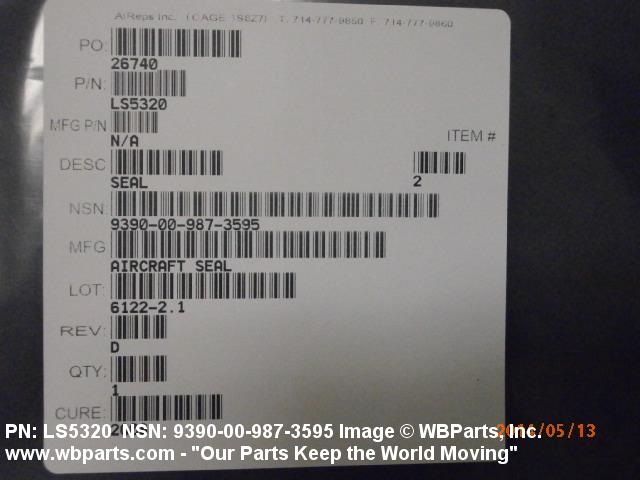

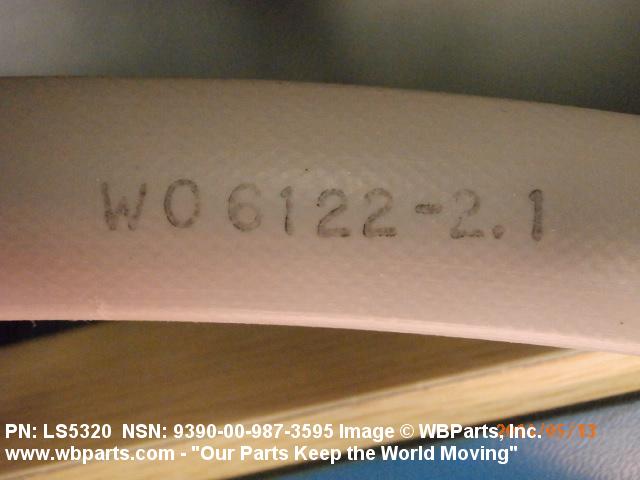

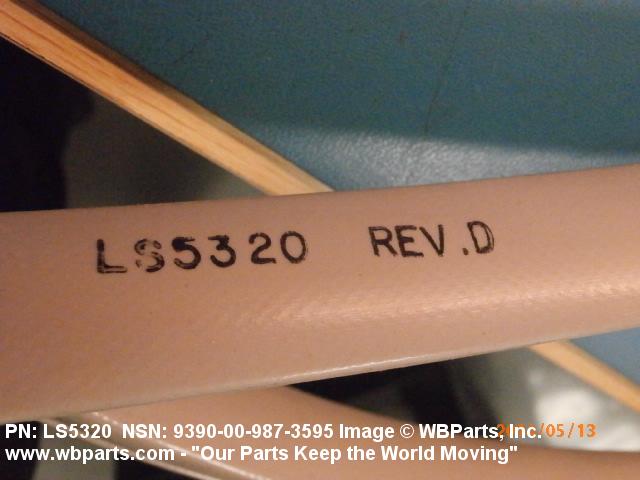

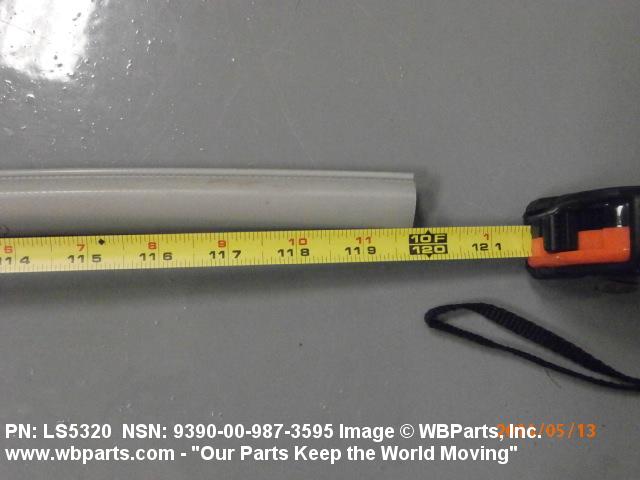

Drawings & Photos | NSN 9390-00-987-3595
Demand History | NSN 9390-00-987-3595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9390-00-987-3595 | 2016-10-305 | 8 | US |
| LS5320 | 2014-05-126 | 5 | United States |
| LS5320 | 2014-05-126 | 5 | United States |
| LS5320 | 2014-05-126 | 5 | United States |
| LS5320 | 2014-04-112 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9390-00-987-3595
Related Products | NSN 9390-00-987-3595
Technical Data | NSN 9390-00-987-3595
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | C319 |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| BASE FLANGE WIDTH | 0.625 INCHES NOMINAL |
| OUTSIDE RADIUS | 0.750 INCHES NOMINAL |
| FIRST SLOT/GROOVE WIDTH | 0.188 INCHES NOMINAL |
| LENGTH | ANY ACCEPTABLE |
| MATERIAL | RUBBER, SYNTHETIC, MIL-S-6855, CLASS 2, GRADE 60-CANCELED |
| JACKET MATERIAL | POLYESTER, PLAIN WEAVE |
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | OIL RESISTANT AND LOW TEMPERATURE AND HEAT, DRY AND HIGH TEMPERATURE AND OZONE RESISTANT |
| NONDEFINITIVE SPEC/STD DATA | 60 GRADE AND 2 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS6855 |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS5320 |
Restrictions/Controls & Freight Information | NSN 9390-00-987-3595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156950 | PLASTIC/RUBR MOULDINGS CHANNELS ETC |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9390-00-987-3595
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
